MVP-C1V-06A-10F - PTD - Open Loop (57700045)

(0)No Reviews yet
SKU: MVP-C1V-06A-10F (57700045)

This item is IN STOCK

Current Stock: 1

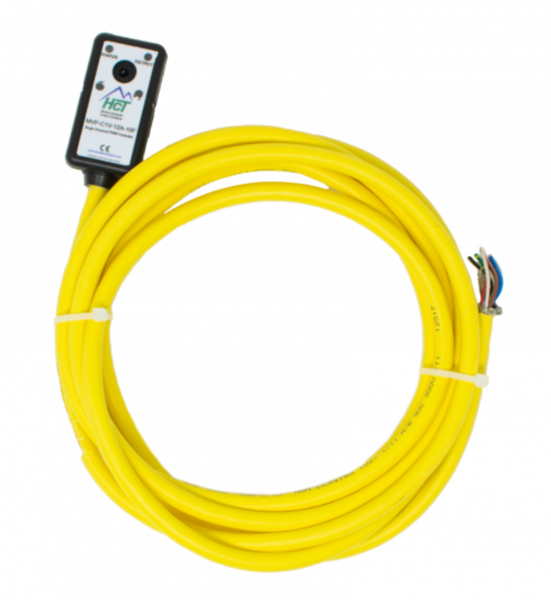

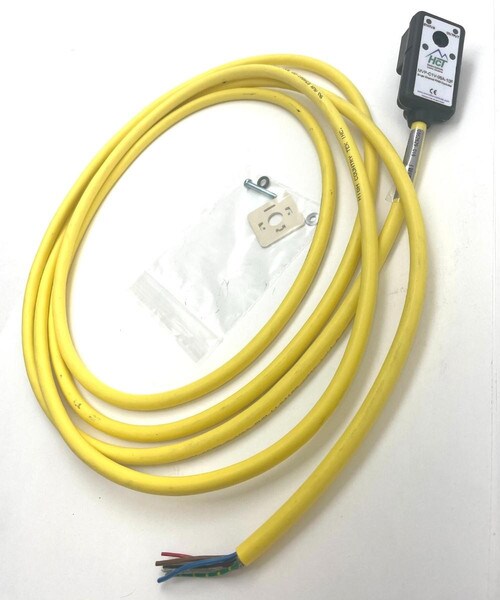

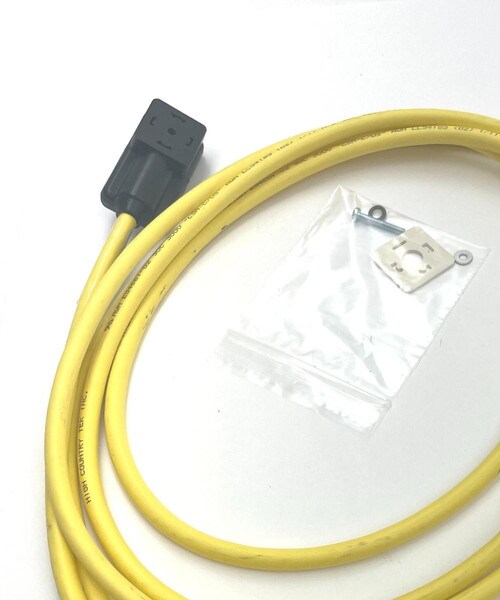

MVP-C1V-06A-10F (57700045)
PTD - Open Loop - 600mA O/P-0-10C cmd - 10F cable

The MVP Series is a line of proportional valve controllers each housed in an 18mm DIN connector body.
Bright LED indicators provide an overview of the operating status. System configuration is accomplished through a clip-on infrared adapter, without removing or opening the connector body.
All settings are stored in permanent memory within each unit.
Each MVP controller is prewired and permanently sealed.


  • Easily configured using the SAM software or our Hand-Held Interface
  • LED indication of Status and Output Current
  • Permanently sealed, standard DIN 43650 Form A connector body
  • Adjustable current limited output with short circuit protection
  • All input and output limits are independently adjustable
  • Pre-wired industrial grade TPE cable
  • Microprocessor controlled for consistent, reliable performance


Sales Bulletin

MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
