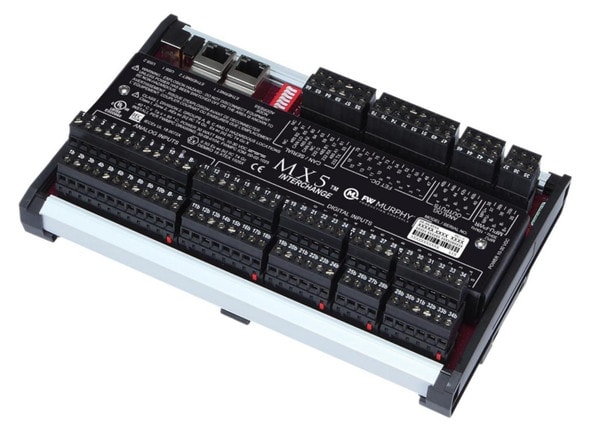

MX5-R2 Interchange Module, Centurion (50703853)

MX5-R2 Interchange Module, Centurion (50703853)

The MX5-R2 expansion module provides input/output capability to the C5 generation and future generations of FW Murphy Controllers using CAN proprietary communications with enhanced diagnostics.
Serial RS-232 or RS-485 ports and 2 Ethernet ports also provide other communication methods to work with any Modbus RTU or Modbus TCP/IP client device.
The MX5-R2 module features 24 Digital inputs, 16 Digital outputs, 10 Analog inputs, 4 Analog outputs, and 1 magnetic pickup input.  MX5-R2 is backward compatible all models of the MX5.

Literature:

Sales Bulletin

MurCal is an Authorized Distributor of FW Murphy products.
MurCal provides experienced application and product support, before and after the sale.
