OPLHACS-15 Level Swichgage (15700702)
OPLHACS-15 Level Swichgage Instrument; 316 Stainless Steel; 120 VAC; 0-15 ft Bellows (15700702)

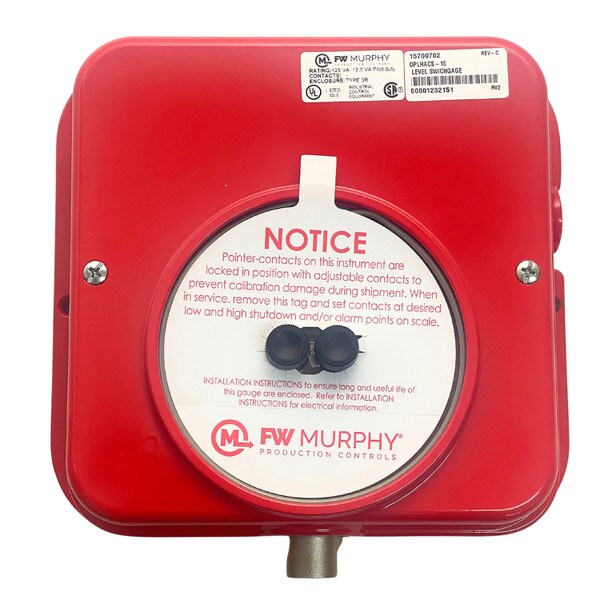

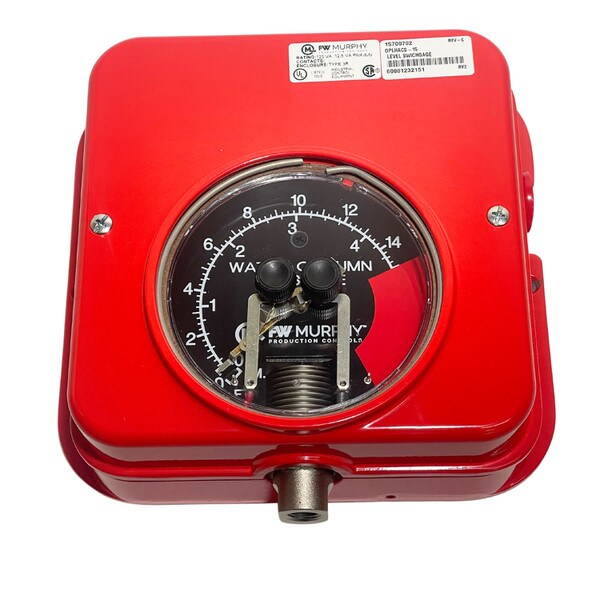

The OPLHACS-15 Level Gage is a surface-mount, combination level-indicating gage with adjustable low and high-limit switches, and a 0-15 ft dual scale dial. Adjustable limit switches are accessible from the front of the gage, and can be wired directly to electric pilot circuits to operate alarms, shut down or start/stop pumps to maintain predetermined levels.
The OPLHACS-15 Level Gage includes two adjustable, pilot duty, pointer type contacts. Contacts have self cleaning motion to enhance electrical continuity. This models is available with a rugged 316 stainless steel bellows sensing element for greater accuracy and sensitivity in lower ranges.
Literature:
MurCal is an Authorized Distributor of FW Murphy products.
MurCal provides experienced application and product support, before and after the sale.
