PV10-AB PowerView® Engine & Diagnostic Display (78700401)
PV10-AB: 2" Diagnostic display J1939 CAN device (78700401)

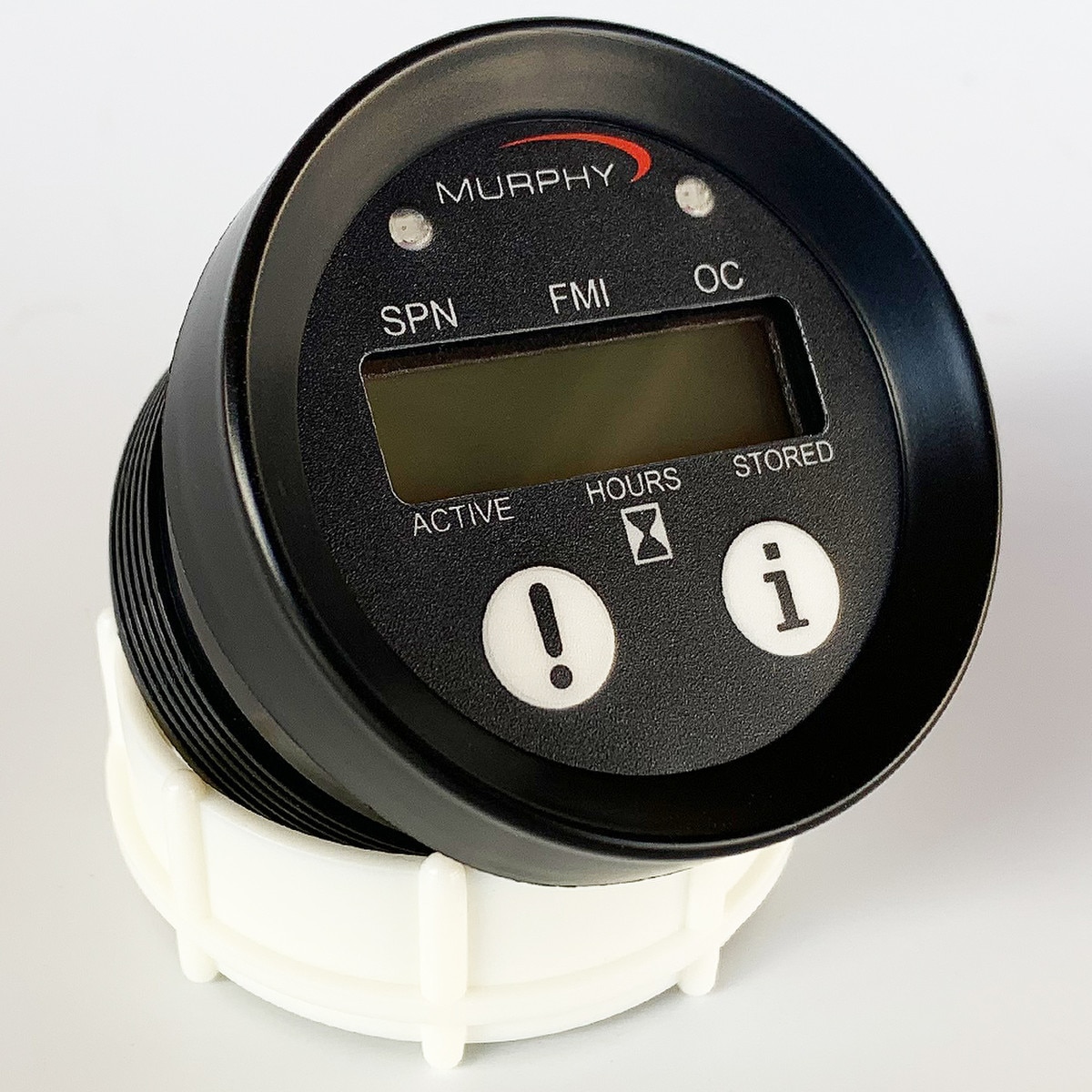

AB: Bazel Type A20 BlackThe PV10 Diagnostic display is a CAN device that receives data from a controller or ECU and then displays Active and Stored Fault messages and Engine Hours. The default mode provides hourmeter data from the ECU for cumulative engine hours.
The PV10 is equipped with two buttons to quickly select between Active or Stored Faults, a graphic display, two LED to indicate the Active fault's Alarm or Shutdown status in a sealed enclosure that matches the PowerView line of gages.
Features:
• Display supports electronically controlled engines and equipment applications that use SAE J1939 Controller Area Networks.
• Displays Active and Stored diagnostic trouble codes for diagnosing equipment malfunctions.
• Displays Engine Hours, SPN, FMI, and OC information on a graphic display.
• Provides enhanced visual alarm indication using Ultra-bright ALARM or SHUTDOWN LEDs (amber and red).
• Simple installation and connections to the system bus.
• Rugged design for demanding applications includes backlit display and is sunlight viewable.
• Displays Active and Stored diagnostic trouble codes for diagnosing equipment malfunctions.
• Displays Engine Hours, SPN, FMI, and OC information on a graphic display.
• Provides enhanced visual alarm indication using Ultra-bright ALARM or SHUTDOWN LEDs (amber and red).
• Simple installation and connections to the system bus.
• Rugged design for demanding applications includes backlit display and is sunlight viewable.
Literature:
Sales Bulletin
