PV780B-T: (78700631) PowerView® 780B Touch Display

(0) No Reviews yet
SKU: PV780B-T: PowerView® 780B Touch (78700631)

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

The PowerView 780B-T is a full-color configurable touchscreen display that integrates vital engine, transmission and diagnostic information into an easy-to-read operator interface. The PV780B-T also offers all the features of Murphy’s popular PV780 with more power and memory. This sleek 7-inch display features an expansive 8 GB of storage and a high-speed processor to boot quickly as well as seamlessly showcase graphics, transitions and videos. The display’s bonded LCD can easily be viewed, even in full sunlight, and its available glove-friendly touchscreen and rugged design make it a perfect solution for all types of environments and applications.

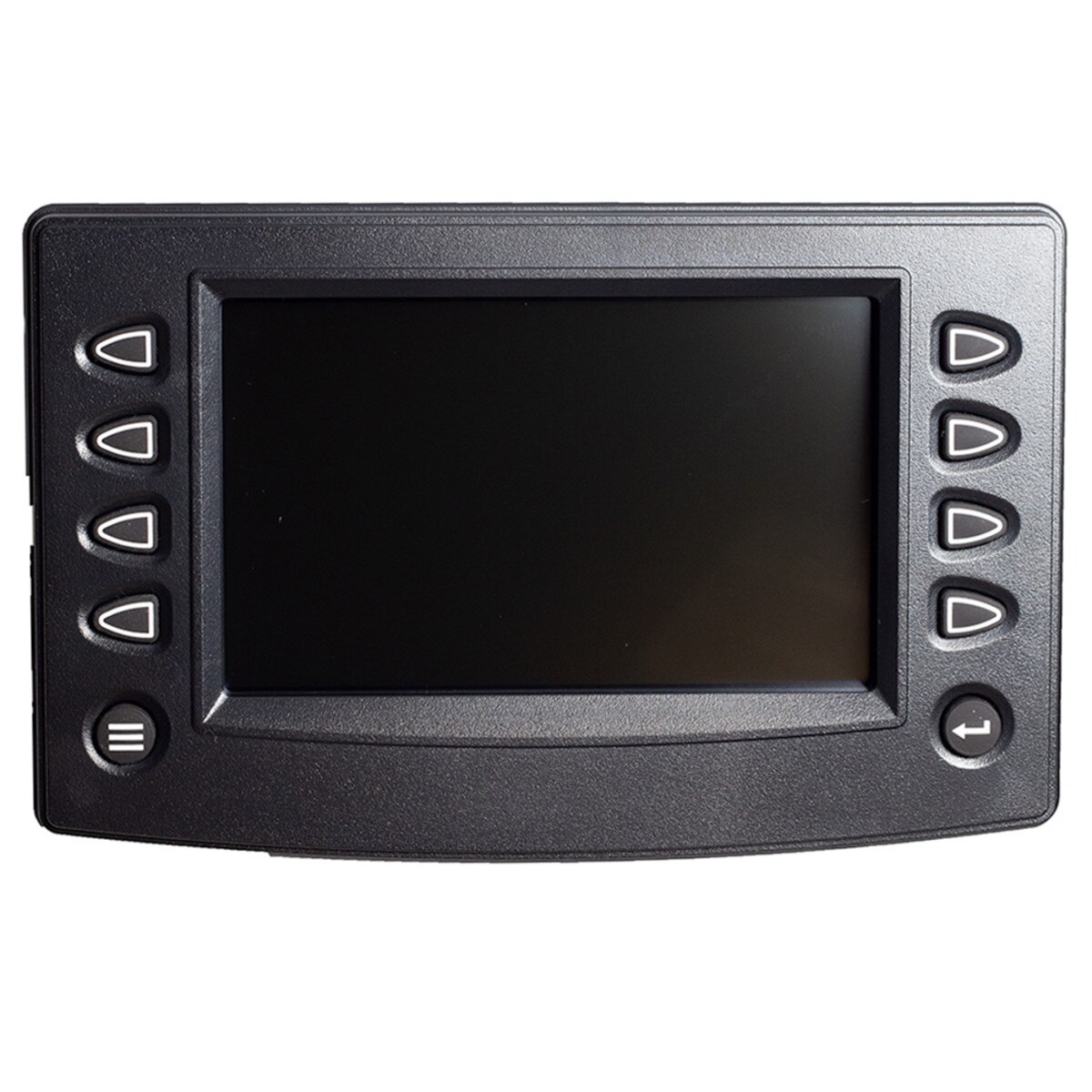

Larger Front View

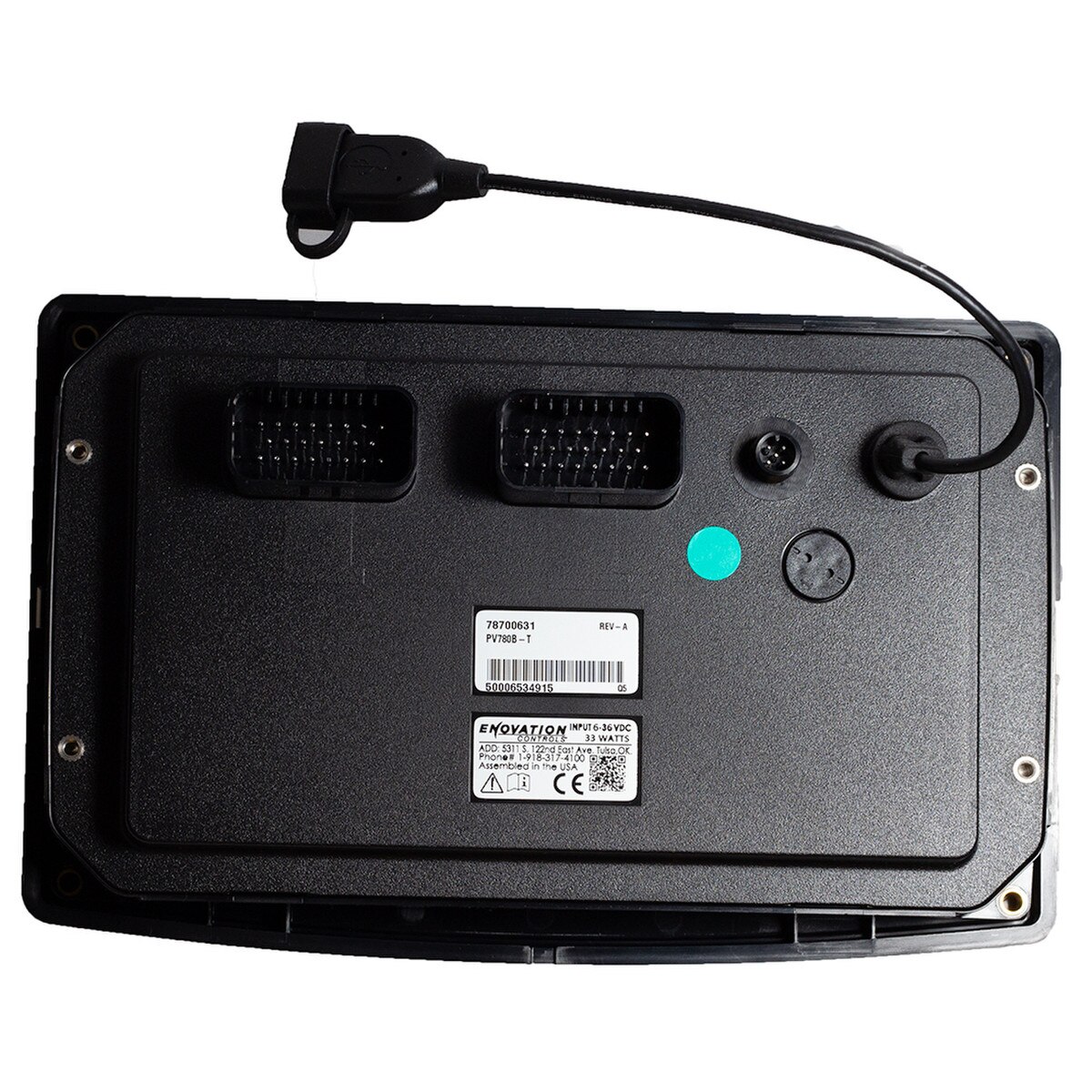

Larger Back View


• Processor: Renesas® R-Car M2 with Arm® Cortex®-A15 dual-core processor @ 1.5 GHz (32-bit)
• Operating System: QNX® Realtime Operating System
• Storage: 8 GB flash memory
• Graphics: Renesas graphics processor
• Screen Size: 7 inches (178 mm)
• Type: LVDS TFT LCD with LED backlight, 24-bit color
• Resolution: 800 × 480 (WVGA)
• Contrast Ratio: Typ. 600:1
• Brightness: 1000 cd/m2
• Surface: Anti-glare
• Touch Panel: Projected capacitive (PCAP) with glove touch
• Keypad: 10 tactile configurable soft keys with white LED backlight
• Real Time Clock: Available with battery backup
• Connectors:
    - (2) AMPSEAL 23 pin (main)
    - (1) M12 5 pin [Ethernet] (optional)
    - (1) USB pigtail
    - Video Input: (3) NTSC/PAL (single channel viewable)
• CAN: (2) CAN 2.0B according to ISO 11898-2, J1939 and proprietary messaging
• Serial: RS-485 serial (Modbus: master or slave)
• USB: USB 2.0 full speed host
• Ethernet: 1 X Ethernet 10/100 Base-T (optional)
• Wi-Fi: 802.11 b/g radio (optional)
• Bluetooth: Fully integrated Bluetooth 2.1, class 1 (optional)
• Operating Voltage: 6 – 36 VDC, reverse polarity protected
• Outputs:
    - (1) 500 mA switched low-side
    - (1) Frequency output (2Hz – 3KHz)
• Inputs:
    - (3) Analog 0 – 5 VDC, 4-20 mA, resistive, 10-bit resolution
    - (5) Discrete digital, active-high
    - (1) Frequency in (2Hz – 10kHz) 5V pk-pk min, 49V pk-pk max
• Operating Temperature: -40˚C to +85˚C (-40˚F to +185˚F)
• Storage Temperature: -40˚C to +85˚C (-40˚F to +185˚F)
• Protection: IP66 and IP67, front and back, for outdoor use
• Vibration: 7.86 Grms (5 – 2000Hz), 3 axes
• Shock: ±50G in 3 axes
• EMC/EMI: SAE J1113, ISO 13766, CE per 2014/30/EU


Sales Bulletin

Sales Brochure

Installation Instructions

For California customers: Prop 65 WARNING: This product may have been manufactured with or uses components that can expose you to chemicals which are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov



The PowerView® 780B-T, a full-featured configurable touch display integrates vital engine, transmission and diagnostic information into an easy-to-read operator interface. This rugged design features full-color 1000-nit 7-inch screen, bluetooth, wi-fi capabilities, and 8GB of flash storage.
