PV780B-TC: PowerView® 780B Touch Connected (78700628)
PowerView® 780B-TC. This rugged design features full-color 1000-nit 7-inch screen, bluetooth, wi-fi capabilities, and 8GB of flash storage. (78700628)

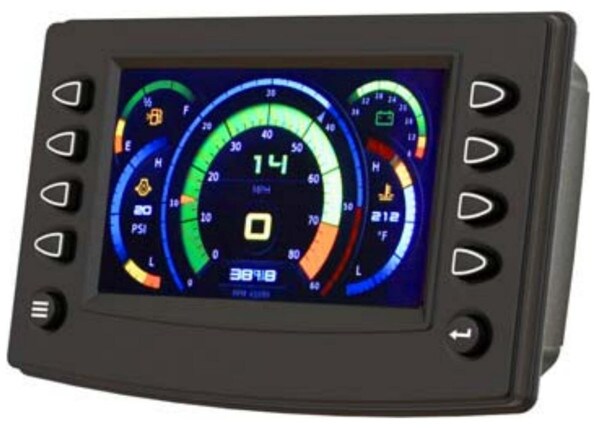

The PowerView® PV780TC display is a full featured, configurable display that combines engine, transmission and diagnostic information into an easy-to-read operator interface. Equipment functionality can be further integrated through the available I/O and controlled via the CANbus.

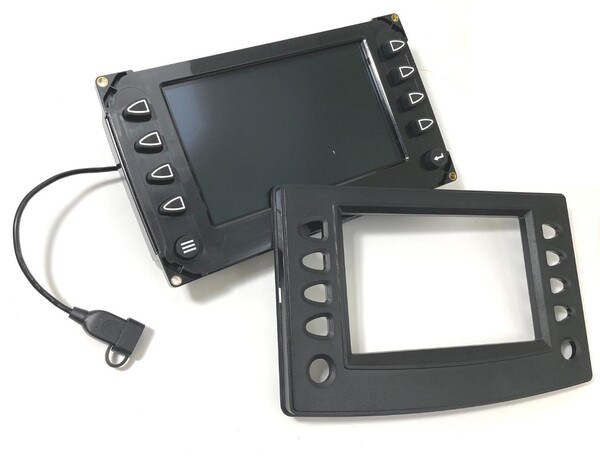

The PV780 features a full color, 7-inch bonded LCD for brighter, smoother graphics and best in class sunlight readability. The rugged design makes this display a great solution for extreme environments.
The PV780 display is compatible with PowerVision Configuration Studio which allows users to edit CAN parameters, add OEM branding and create custom equipment screens for a unique and sophisticated user interface.
Features:
- CAN-Based Display With Rich, Full-Color Graphics
- Compatible With Both Mechanical and Electronic Engines
- Tier 4/Euro Stage IV ready
- Sunlight Readable LCD
- Rugged Design for Extreme Environments
- Multiple Languages
- Easy-to-Use Configuration Software
Technical:
- Display: 7-inch (178mm) color transmissive TFT LCD
- Aspect Ratio: 16:9
- Orientation: Landscape or Portrait
- Backlighting: LED, 1000 nit maximum brightness
- Microprocessor: Freescale i.MX357, 32 bit, 532 MHz, ARM11 core
- QNX Real-time Operating System
- RAM: 128 Mbytes SRAM
- Operating Voltage: 6-36 VDC, reverse polarity protected
- Video inputs: 3 NTSC/PAL

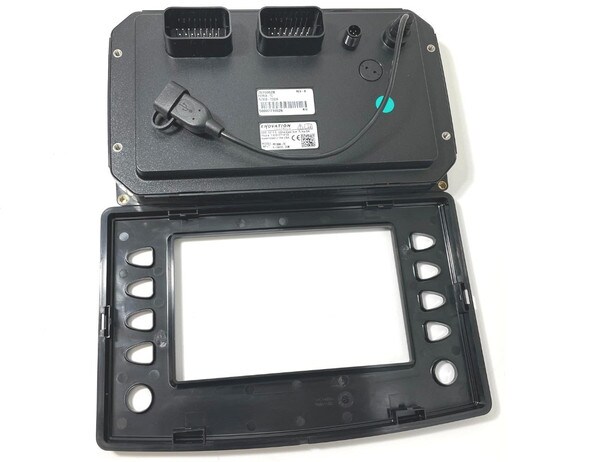

- Connectors: Two (2) AMPSEAL 23 Pin (AMP 770680-1 and AMP 770680-4)
- Keyboard: 10 tactile pushbuttons with white LED backlight
- USB: (1) USB 2.0 host (OTG, full speed)
- Real time clock with Li-ion rechargeable battery backup
Communications:
- (2) CAN 2.0B with one isolated (NMEA 2000 compliant); J1939 and CANopen protocols; proprietary messaging
- (1) RS-485 serial (MODBus master/slave)
- (1) USB Host (OTG)
Outputs:
- (1) Digital 500mA, switched low-side
- (1) Frequency Out (2 Hz - 3 kHz) 0-V Battery, peak to peak, square wave
Inputs:
- (3) Analog 0-5VDC, 4-20 mA, or resistive
- (5) Discreet Digital 0-5V, Active High
- (1) Frequency Input, configurable to support measurement frequencies from 2 Hz - 10 kHz
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
