PVA20-A-100-B PowerView Gage (78700212)

(0)No Reviews yet
SKU: PVA20-A-100-B (78700212) *RATIONALIZED*
Price only valid for instock items. If you need additional items or there is no stock, please contact our MurCal customer service team for current pricing at sales@murcal.com or 661.272.4700.

Currently out of stock, but do not worry! You can still place your order. We will process and ship your item promptly once it arrives from the manufacturer. For precise availability and estimated lead times, please contact our customer support team at sales@murcal.com

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

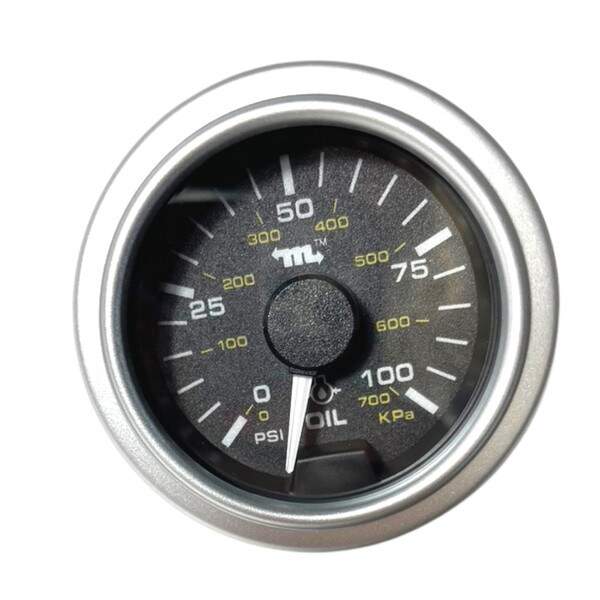

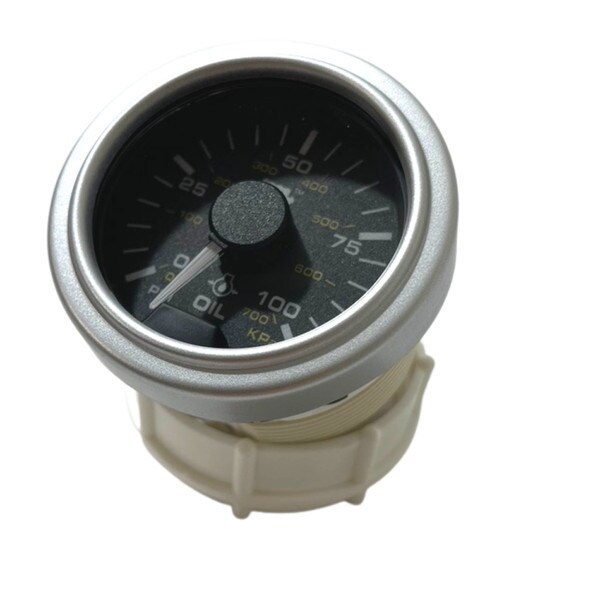

PVA20-A-100-B: 2" PowerView Gage; Engine Oil Pressure; 100 psi; Low Profile SAE Brushed Silver Bezel (78700212)

The PowerView Analog Gages (PVA) are a series of intelligent gages designed to display easy-to-read information transmitted by the PowerView.
The PVA gages communicate with the PowerView via a single RS485 twisted pair MODBUS®† RTU serial link. The gages can be daisy-chained using quick-connect harnesses with watertight connectors.
The major feature of the PVA gages is their balance between design and functionality.

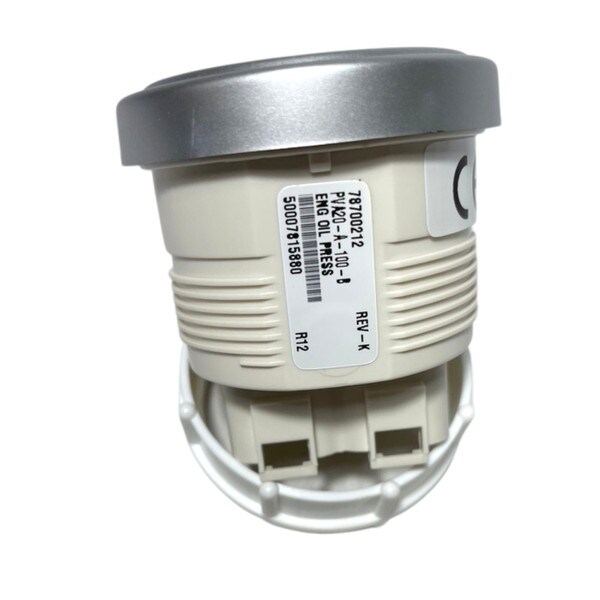

The PVA gages also include features such as a smooth stepper motor operation for the 270° sweep pointer, an environmentally sealed case with two Deutsch DT style connectors molded into the casing, and green LED back lighting.
In addition their plastic cases incorporate a “D” shape allowing panel cutouts that eliminate gage rotation during installation.

PVA20 –A = Engine Oil Pressure
100 = 100 psi/700 kPa
B = Low profile SAE (Brushed Silver)



Literature:

  1. Sales Bulletin
  2. Installation Instructions



MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.


For California customers: Prop 65 WARNING: This product may have been manufactured with or uses components that can expose you to chemicals which are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov
