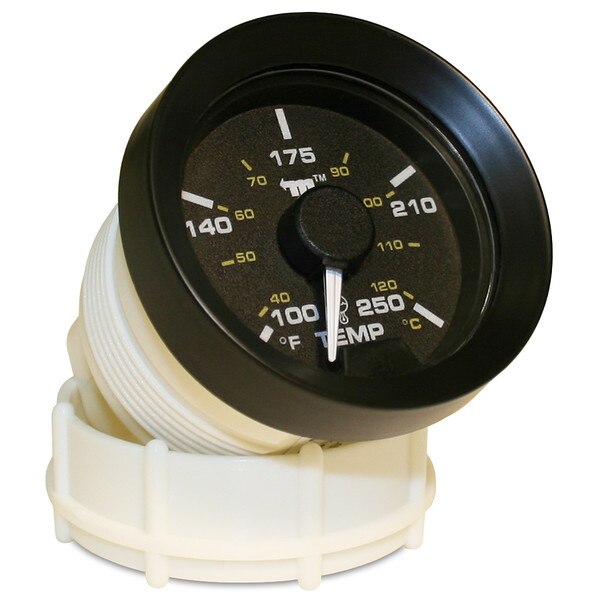

PVA20-B-250-AB Powerview® Analog Coolant Temperature Gage (78700058)
PVA20-B-250-AB: 2" Powerview Gage; Coolant Temperature; 100 to 250°F range; A20 black bezel (78700058)
The PVA20-B-250-AB is a 2" Powerview Analog Gage used to indicate Coolant Temperature in the 100° to 250°F degree range.
This model features an environmentally sealed polyester case, polycarbonate lens and an A20 black bezel.
The PVA20-B-250-AB Coolant Temperature gage is designed to display easy-to-read information transmitted by the PowerView. The gage communicates with the PowerView via a single RS485 twisted pair MODBUS RTU serial link.
The gages can be daisy-chained using quick-connect harnesses with watertight connectors. The PVA20-B-250-AB can be powered by 12 or 24 VDC systems and has 6-pin Deutsch DT06 Series connectors.
It includes a screw-on type mounting clamp that allows for a panel measuring up to 3/8" thick.
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
