PVA20-T-3000-AB-R1 Tachometer Gage (78700199) *SPECIAL ORDER ITEM*
PVA20-T-3000-AB-R1: 2" PowerView Gage; Tachometer; 3000 RPM; A20 Black Bezel; Optional Remote Second Gage (78700199)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product
———
R1 = Option for a second gage of identical type on the gage network. For example: If you are already using one PVA20-T-3000-AB, order a PVA20-T-3000-AB-R1 for the second gage.

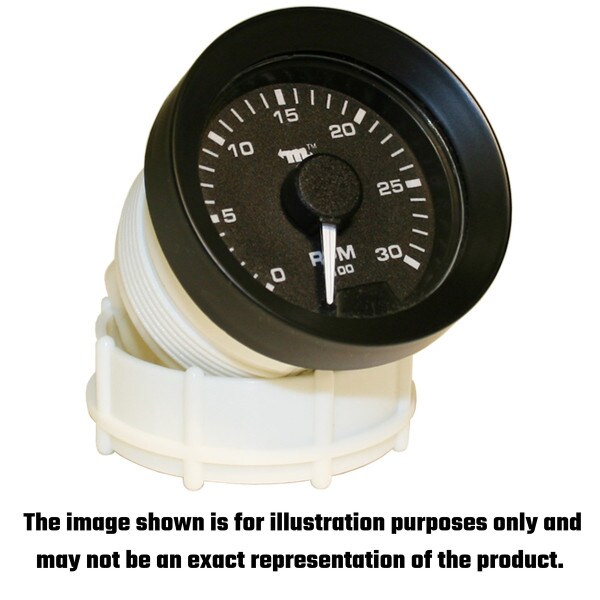

The Murphy 3000 RPM PowerView Analog Tachometer Gage 2" with Black Bezel PVA20-T-3000-AB-R1 is designed to display easy-to-read information transmitted by the PowerView. The PVA gages communicate with the PowerView via a single RS485 twisted pair MODBUS RTU serial link. The gage can be daisy-chained using quick-connect harnesses with watertight connectors. The major feature of the PVA gages is their balance between design and functionality.
The PVA20-T-3000-AB-R1 also features a smooth stepper motor operation for the 270° sweep pointer, an environmentally sealed case with two Deutsch DT style connectors molded into the casing, and green LED back lighting. In addition their plastic cases incorporate a “D” shape allowing panel cutouts that eliminate gage rotation during installation. This gage can be powered by 12 or 24 VDC systems.
FEATURES:
- 2 inch size PowerView Gage
- Bezel Type (flat lens) A20 Black Bezel
- Simple Installation and Wiring Design
- Microprocessor Driven for High Accuracy
- Display SAE J1939 Parameters Broadcast by The PowerView System
- Cutting-Edge, Stepper Motor Technology and Robust Functionality Combined
- For Modern Electronic Engines and Equipment Using SAE J1939 Controller Area Network
- PVA20 –T = Tachometer Gage
- 3000=3000 RPM
- AB= A20 (Black)
- R1 = Option for a second gage of identical type on the gage network. For example: If you are already using one PVA20-T-3000-AB, order a PVA20-T-3000-AB-R1 for the second gage.
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
