PVA35-S-85-A 85 MPH Speedometer (78700163) *SPECIAL ORDER ITEM*
PVA35-S-85-A 85 MPH PowerView® Speedometer, 3-1/2" gage, 85 MPH (78700163)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product
———

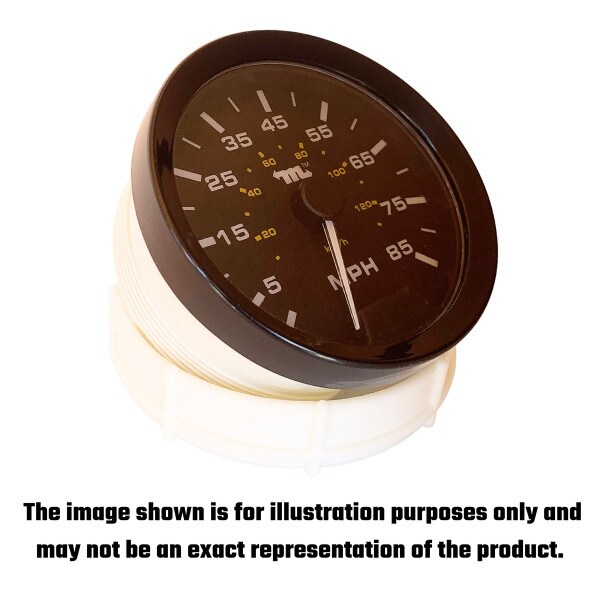

The Murphy 85 MPH Powerview Analog Speedometer Gage 3.5 in. with Brushed Silver Bezel PVA35-S-85-A is designed to display easy-to-read information transmitted by the PowerView. The PVA gages communicate with the PowerView via a single RS485 twisted pair MODBUS RTU serial link. The gage can be daisy-chained using quick-connect harnesses with watertight connectors. The major feature of the PVA gages is their balance between design and functionality.
The PVA35-S-85-A also features a smooth stepper motor operation for the 270° sweep pointer, an environmentally sealed case with two Deutsch DT style connectors molded into the casing, and green LED back lighting. In addition their plastic cases incorporate a “D” shape allowing panel cutouts that eliminate gage rotation during installation. This gage can be powered by 12 or 24 VDC systems.
FEATURES:
- 3-1/2 inch size PowerView Gage
- Bezel Type (flat lens) A20 Brushed Silver
- Simple Installation and Wiring Design
- Microprocessor Driven for High Accuracy
- Display SAE J1939 Parameters Broadcast by The PowerView System
- Cutting-Edge, Stepper Motor Technology and Robust Functionality Combined
- For Modern Electronic Engines and Equipment Using SAE J1939 Controller Area Network
- PVA35 = 3-1/2 inch size PowerView Gage
- S = Speedometer
- 85 = 85 MPH
- A = A20 (Brushed Silver)
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
