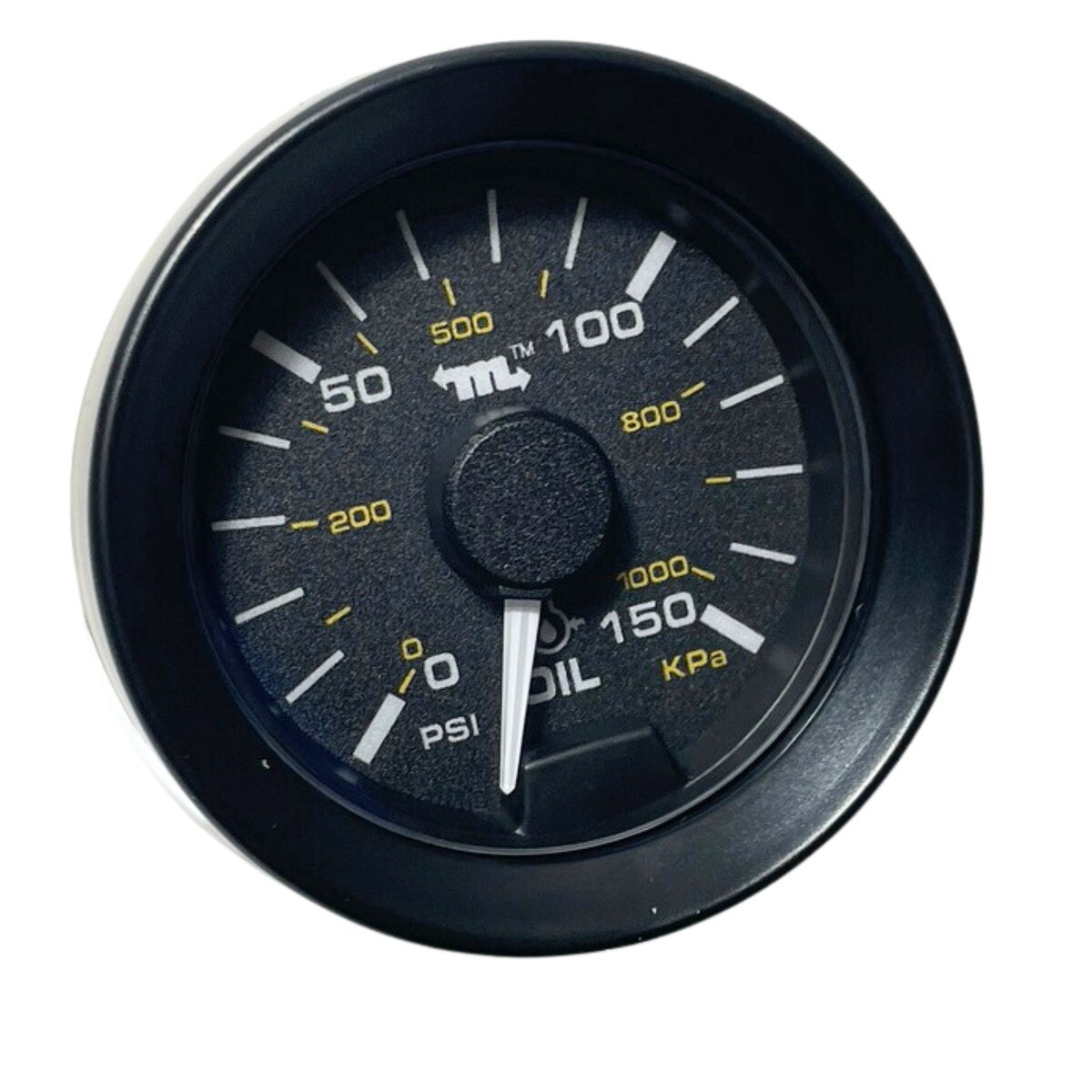

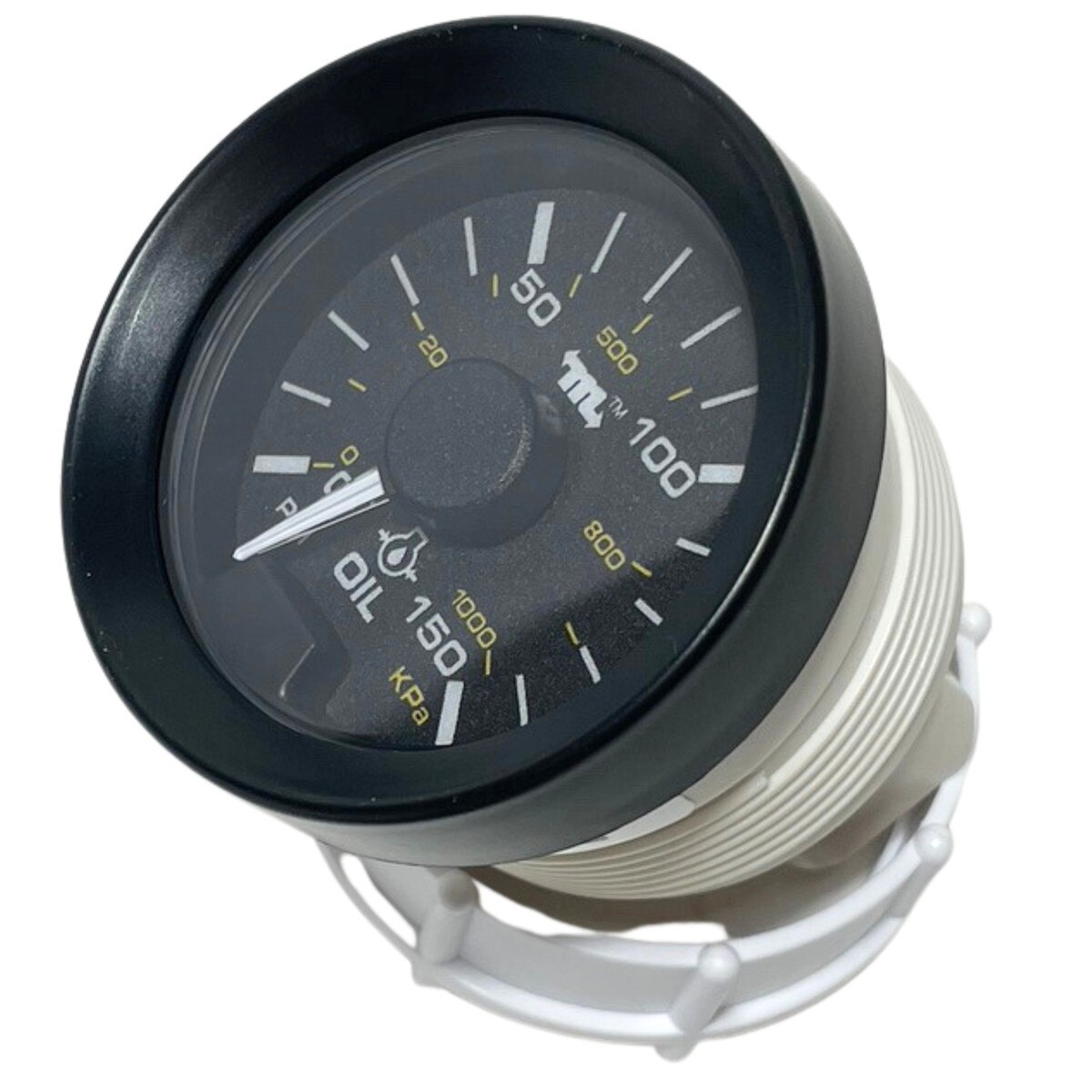

PVCAN20-A-150-AB PowerView® CAN Oil Pressure Gage (78700443)

PVCAN20-A-150-AB PowerView® CAN Oil Pressure Gage, 150 PSI (78700443)

The PowerView CAN Gages (PVCAN) are a series of intelligent gages designed to display easy-to-read information broadcast over the SAE J1939 communications. These gages are designed to be wired directly to the J1939 CAN bus without the need of another device driving them.


Specifications:

• Power Supply Input Voltage: 12/24 V (8-32 VDC Minimum and Maximum Voltage)
• Power Supply Operating Current: Typically 70 mA
• Backlight Maximum Current: 45 mA Input: CAN (SAE J1939)
• Operating Temperatures: -40° F to 185° F (-40° C to 85° C)
• Storage Temperatures: -76° F to 185° F (-60° C to 85° C)
• Dial: White numerals over black background
• Gage Accuracy: Better than ±1% of full scale
• Environmentally Sealed Enclosure: IP68: ±5PSI (±34.4kPa).
• Case Material: Polycarbonate/Polyester (PC+PBT)
• Clamp Material: Polyester (PBT)
• Lens Material: Polycarbonate
• Bezel Material: ABS
• Maximum Panel Thickness: 3/8 in. (9.6 mm)

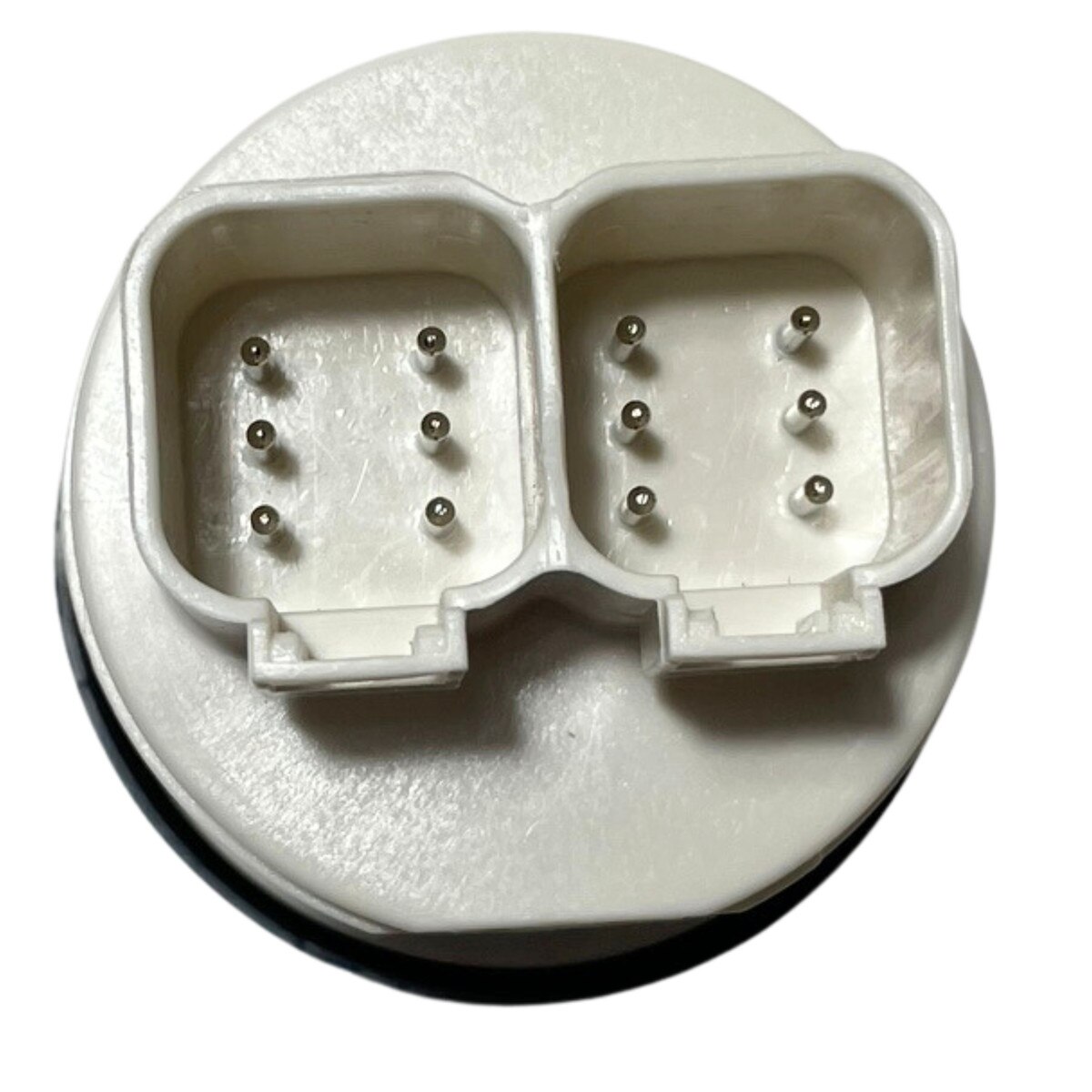

• Connectors: 6-Pin Deutsch DT06
• Series Electromagnetic Compatibility: Directive: 89/336/EEC
• Directive: 2004/108/EC
• European Harmonised standard: EN 61000-6-3:2006 EN 61000-6-1:2005
• Vibrations: Random: 7.86 Grms (5-2,000 Hz), 3 axes Shock: ±50 G, 3 axes
