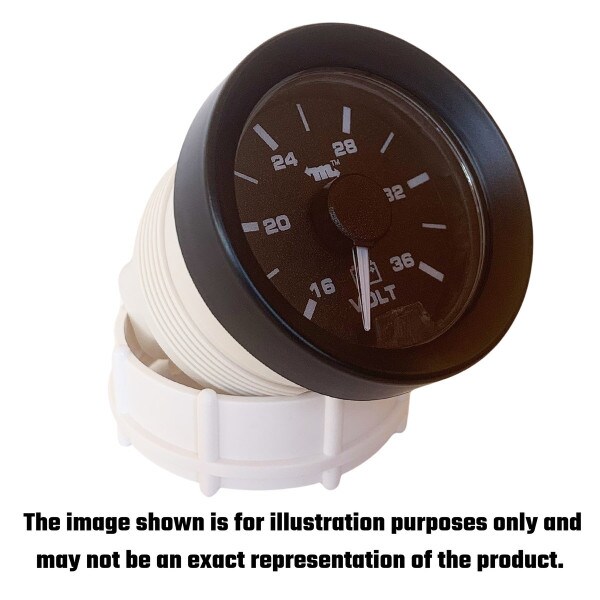

PVCAN20-C-24C-AB PowerView® CAN Voltmeter Gage (78700600) *SPECIAL ORDER ITEM*
PVCAN20-C-24C-AB PowerView® CAN Voltmeter Gage, 24 VDC, A20 (Black) Bezel (78700600)
FOR CUMMINS/CAT ENGINES
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 10 Weeks For Delivery Of This Product
———
Specifications
- Power Supply Input Voltage: 12/24V (8-32VDC Minimum and Maximum Voltage)
- Power Supply Operating Current: Typically 70mA
- Backlight Maximum Current: 45mA
- Input: CAN (SAE J1939)
- Operating Temperatures: -40°F to 185°F (-40°C to 85°C)
- Storage Temperatures: -76°F to 185°F (-60°C to 85°C)
- Dial: White numerals over black background
- Gage Accuracy: Better than ±1% of full scale
- Environmentally Sealed Enclosure: IP68: ±5PSI (±34.4kPa).
- Case Material: Polycarbonate/Polyester (PC+PBT)
- Clamp Material: Polyester (PBT)
- Lens Material: Polycarbonate
- Bezel Material: ABS
- Maximum Panel Thickness: 3/8 in. (9.6mm)
- Connectors: 6-Pin Deutsch DT06 Series
- PVCAN20 = 2” PowerView Gage
- C = Voltmeter
- 24C = 24 VDC Cummins (SPN 168)
- AB = A20 (Black) Bezel
