PVCAN20-F-150C-AB Powerview® CAN Transmission Oil Temperature Gage (78700465)

PVCAN20-F-150C-AB: PowerView® CAN Transmission Oil Temperature Gage (78700465)

The PVCAN20-F-150C-AB Transmission Oil Temperature Gage is an intelligent gage designed to display easy-to-read information broadcast over the SAE J1939 communications protocol. This gage is designed to be wired directly to the J1939 CAN bus without the need of another device, such as a PowerView® display, driving it.

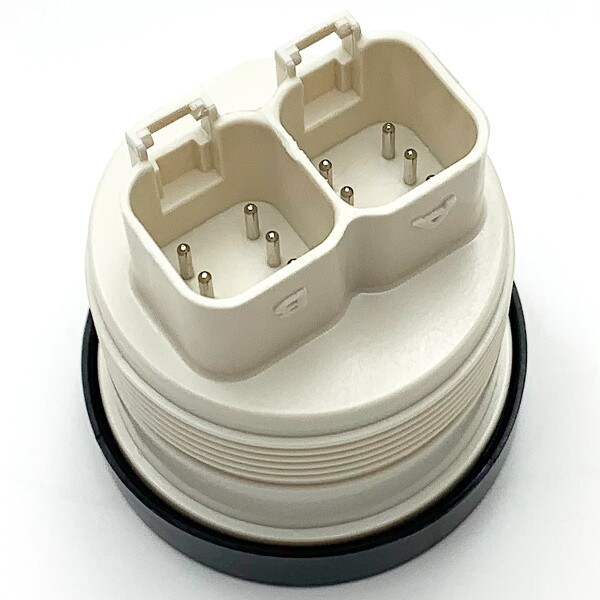

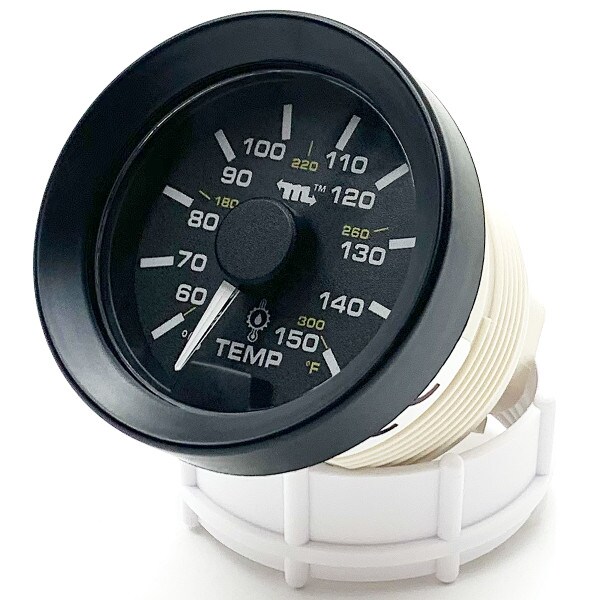

This dual-scale model features a dominant Celsius scale, with a temperature range of 60°-150°C (140°-300°F), and a polycarbonate lens with an A20 black bezel. The gage also includes a smooth stepper motor operation for the 270-degree sweep pointer, an environmentally sealed case with two (2) 6-Pin Deutsch DT06 Series connectors molded into the case, and green LED backlighting.

The PVCAN20-F-150C-AB fits a standard 2-1/16-inch (52mm) diameter hole size. In addition, its polycarbonate/polyester alloy case incorporates a D-shape, allowing panel cutouts that eliminate gage rotation during installation. The gage can be powered by 12- or 24-VDC systems (8-32 VDC minimum and maximum voltage). It includes a screw-on type mounting clamp that allows for a panel measuring up to 3/8" thick.

Specifications

• Power Supply Input Voltage: 12/24V (8-32VDC Minimum and Maximum Voltage)
• Power Supply Operating Current: Typically 70mA
• Backlight Maximum Current: 45mA
• Input: CAN (SAE J1939)
• Operating Temperatures: -40°F to 185°F (-40°C to 85°C)
• Storage Temperatures: -76°F to 185°F (-60°C to 85°C)
• Dial: White numerals over black background
• Gage Accuracy: Better than ±1% of full scale
• Environmentally Sealed Enclosure: IP68: ±5PSI (±34.4kPa).
• Case Material: Polycarbonate/Polyester (PC+PBT)
• Clamp Material: Polyester (PBT)
• Lens Material: Polycarbonate
• Bezel Material: ABS
• Maximum Panel Thickness: 3/8 in. (9.6mm)
• Connectors: 6-Pin Deutsch DT06 Series
