PVCAN20-H-250-A Hydraulic Oil Temperature Gauge (78700470) *SPECIAL ORDER ITEM*
PVCAN20-H-250-A Hydraulic Oil Temperature Gauge, 250° F/120° C, Brushed Silver Bezel (78700470)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 10 Weeks For Delivery Of This Product
———

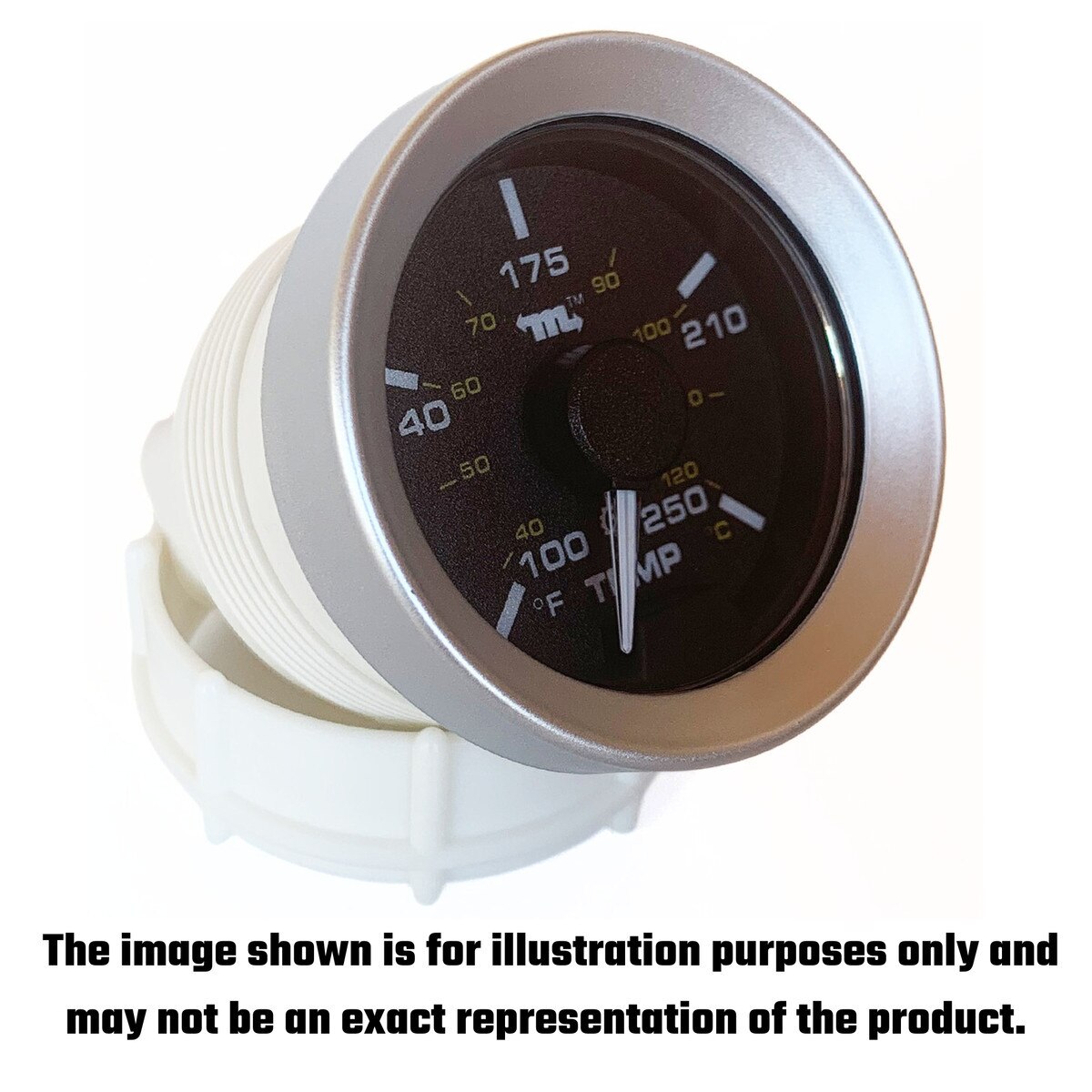

The Murphy 250°F/120°C PowerView CAN Hydraulic Oil Temperature Gage 2" with Brushed Silver Bezel PVCAN20-H-250-A is designed to display easy-to-read information broadcast over the SAE J1939 communications. This gage is designed to be wired directly to the J1939 CAN bus without the need of another device driving them.
The PVCAN20-H-250-A gage includes features such as a smooth stepper motor operation for the 270° sweep pointer, an environmentally sealed case with two Deutsch DT style connectors molded into the case and green LED backlighting. In addition, the Polyester case incorporates a “D” shape allowing panel cutouts that eliminate gage rotation during installation. This gage can be powered by 12 or 24 VDC systems.
FEATURES:
- 2 inch size PowerView Gage
- Bezel Type (flat lens) A20 Brushed Silver
- Microprocessor driven for high accuracy
- Simple installation and wiring design
- No driving device required
- Displays SAE J1939 parameters broadcast via CAN
- Cutting edge, stepper motor technology and robust functionality combined
- For modern electronic engines and equipment using SAE J1939 Controller Area Network
- PVCAN20 = 2” PowerView Gage
- H = Hydraulic Oil Temperature
- 250 = 250° F/120° C
- A = A20 (Brushed Silver)
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
