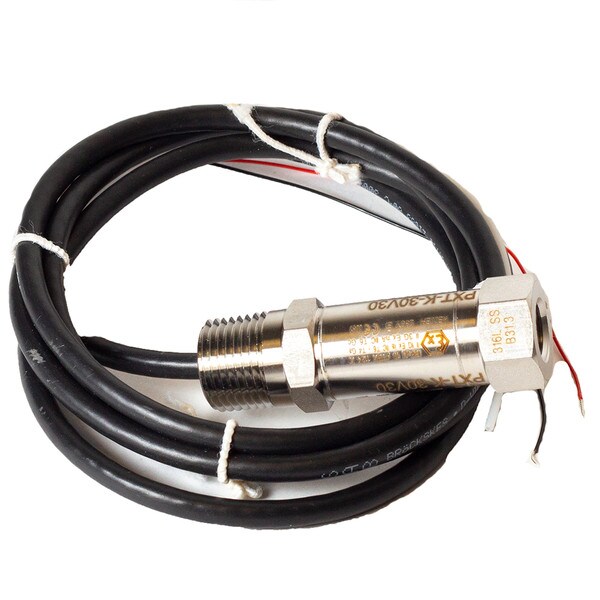

PXT-K-30V30 Vacuum/Pressure Transmitter (05707731)
PXT-K-30V30: Vacuum/Pressure Transmitter, 4-20 ma, 0.25% accuracy, -30" Hg./+30 psig. CSA certified. (05707731)
The PXT-K-30V30 Vacuum and Pressure Transmitter is a state-of-the-art instrument providing a 4 to 20 mA output and -30" Hg./+30 psig. It features a precision micro-machined silicon diaphragm with a fully welded stainless steel pressure port for greater accuracy, stability and a wide range of compatibility.
Silicon technology is used to provide a miniature micro-machined diaphragm which is electrostatically bonded to a glass substrate and is then stitch-bonded within a glass to metal seal assembly to provide exceptional thermal and stress isolation. This technology assures you of high accuracy and stability over a wide range of operating conditions. The corrosion resistant enclosure is made of 316 stainless steel and all wetted parts are 316L stainless steel or HASTELLOY C276.
The PXT-K-30V30 can be used in applications such as compressors, engines, process control, liquid level and pumps. Accuracy is rated at +/- 0.25% including non-linearity, hysteresis and repeatability. Long term stability better than 0.2% FS over twelve (12) months. Process connection is 1/4 NPT female.
Features:
• Process Connection: 1/4 NPT female with 7/8" Hex Nut
• Electrical Connection (PXT-K-30V30): 1/2” NPT Male Conduit connection with 60" long cable, vented
• Wetted Parts: 316L Stainless Steel or HASTELLOY C276 to comply with NACE MR0175
• Supply Voltage: 8-30 VDC (Typically 24 VDC)
• CSA (c/us): Class I / II / III, Div 1 , Groups A-F T4
• Class I / II / III, Div 2, Groups A-D,F,G T4
MADE IN SWITZERLAND
If you are currently using the PXT Series pressure transmitter, please use the cross reference chart to determine the appropriate PXT-K Series pressure transmitter replacement product.
