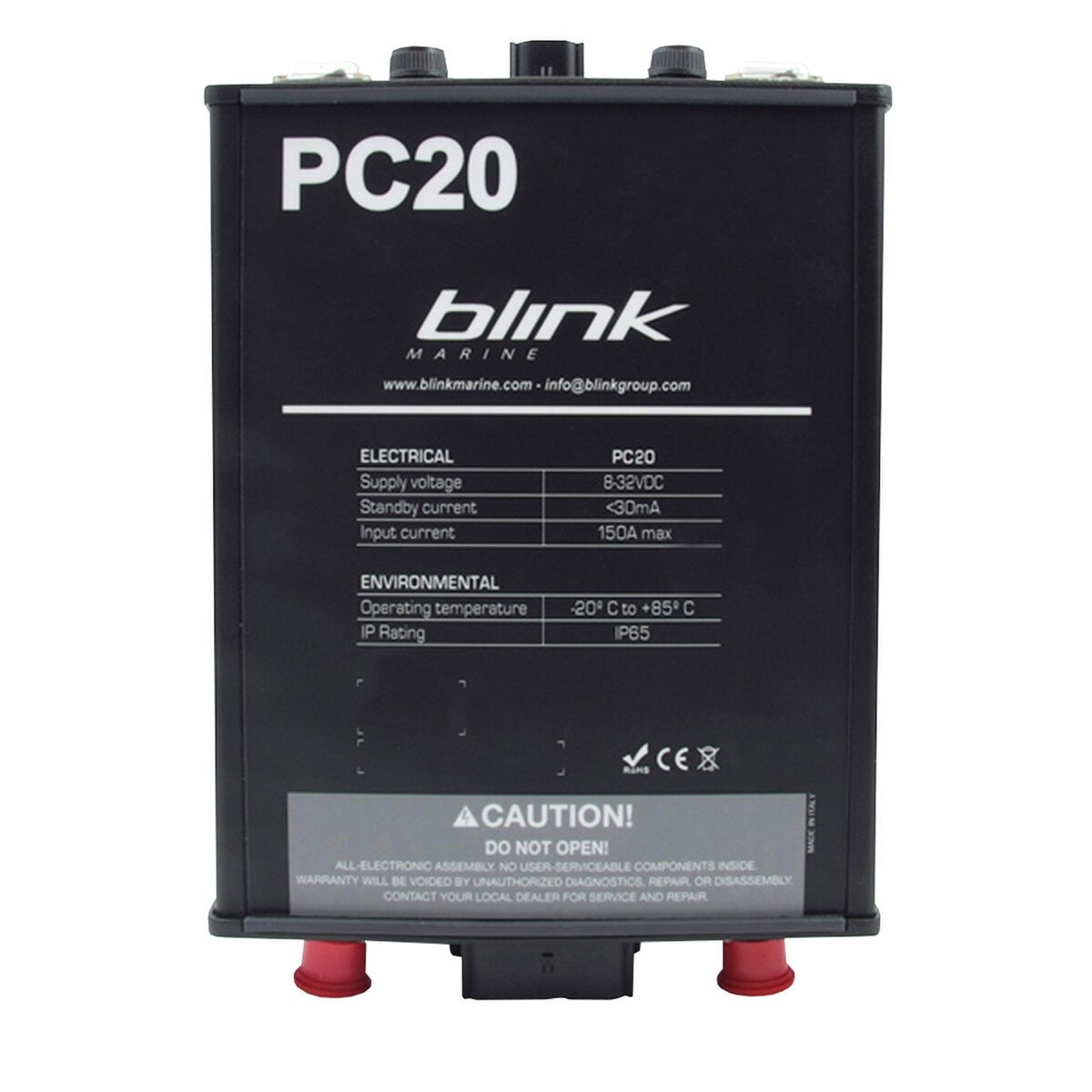

PowerCore PC20 Power Management Unit
PowerCore PC20 Power Management Unit
The Power Management Unit is the brain of the system. This 150A model receives requests from switches or keypads and handles these commands based on the current state of the system. The output may be the activation deactivation of a circuit or starting a timer function. The PowerCore then sends status data from system to keypads to turn on/off the LED indicators and backlighting.
Larger Image: Keybox Relay Module
Electrical Features:
• 12V or 24V nominal input voltage
• 150Ampere total PME input current carrying capability
• Twelve (12) switched circuits that include:
• Momentary, toggle, and time-out functions
• Pulse-width modulation of output voltage for dimming capability
• 3 (three) circuits rated up to 20A maximum continuous load, 9 (nine) circuits rated up to 15A
• 2 (two) complete H-Bridge circuits for driving reversible motors
• Parallelable output increases current rating
• An electronic circuit breaker protects every circuits. The current ratio for each circuit can be set independently
• Remote reset of any output circuitry fault through keypad
• Input undervoltage lock down
Special Features:
• CAN-bus compatible (CANopen/J1939 compliance available)
• Field programmability of electrical functions and current limit trip points available to authorized OEMs and Value-Added Resellers (VARs)
• 4-circuit bypass for essential functions
• Optional N.O. relay contact
Specifications:
• Circuits: Twenty-two (22)
• Pull Down: Nine (9) outputs
• “H” Bridge Capability: Four (4) complete “H” bridges available
Literature
PowerCore PC20 DatasheetMurCal is an Authorized Distributor of Blink Marine products.
MurCal provides experienced application and product support, before and after the sale.
