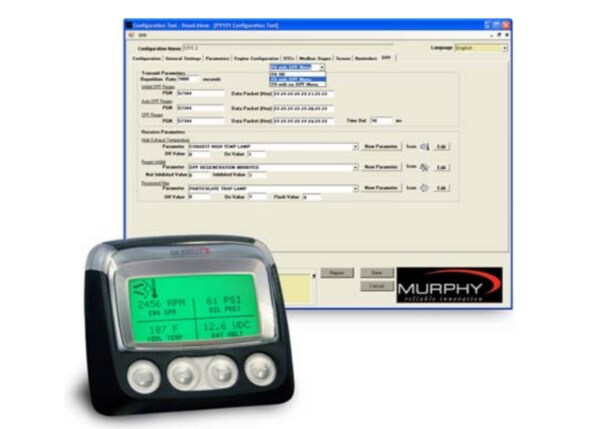

PV101-C Configuration Tool Kit (78700435)
The PowerView Model PV101 Configuration Tool is a PC-based configuration software for the PV101-C display.
The configuration tool allows you to create custom configurations and upload them to the PV101-C without incurring engineering software development charges (If configurations are outside the scope of the configuration tool, contact Murphy for a quotation. Normal NRE charges shall apply.).
The PV101-C Configuration Tool is an easy-to-use interface that enables you to modify features of the PV101-C including:
• Parameters - Allows users to create proprietary and supporting parameters and then add them to their configurations along with the SAE J1939 parameters.
• Diagnostic trouble codes (DTC) - Allows the user select and use DTCs as well as add custom corrective actions.
• Service reminders - Allows the user to set service reminders.
• Diesel particulate filter (DPF) - Allows users to modify messaging structure and icons.
• Modbus gauges - Allows users to use a proprietary PVA gage if setup in that portion of the configuration tool.
• Engine configuration - Allows user to add new parameters into the PV101 for viewing the configuration of the engine via SAE J1939 PGN 65251.
Features:
- Build custom configurations
- Easy-to-use Windows-based interface
- Add custom splash screens
- Tier 4 menu setup
- Add proprietary parameters
- Add supporting parameters outside SAE J1939 Parameters
- Add alternate languages
- Allows corrective action setup for DTCs
- Upload configurations from PV101-C to your PC
- Supports 10 languages including: English, Spanish, French, Italian, German, Russian, Chinese, Japanese, Brazilian Portuguese and Czech (The configuration tool, itself, is only available in English; however, it supports all languages displayed in the PV101-C)
- Allows for proprietary OEM Menu Pass Code
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
