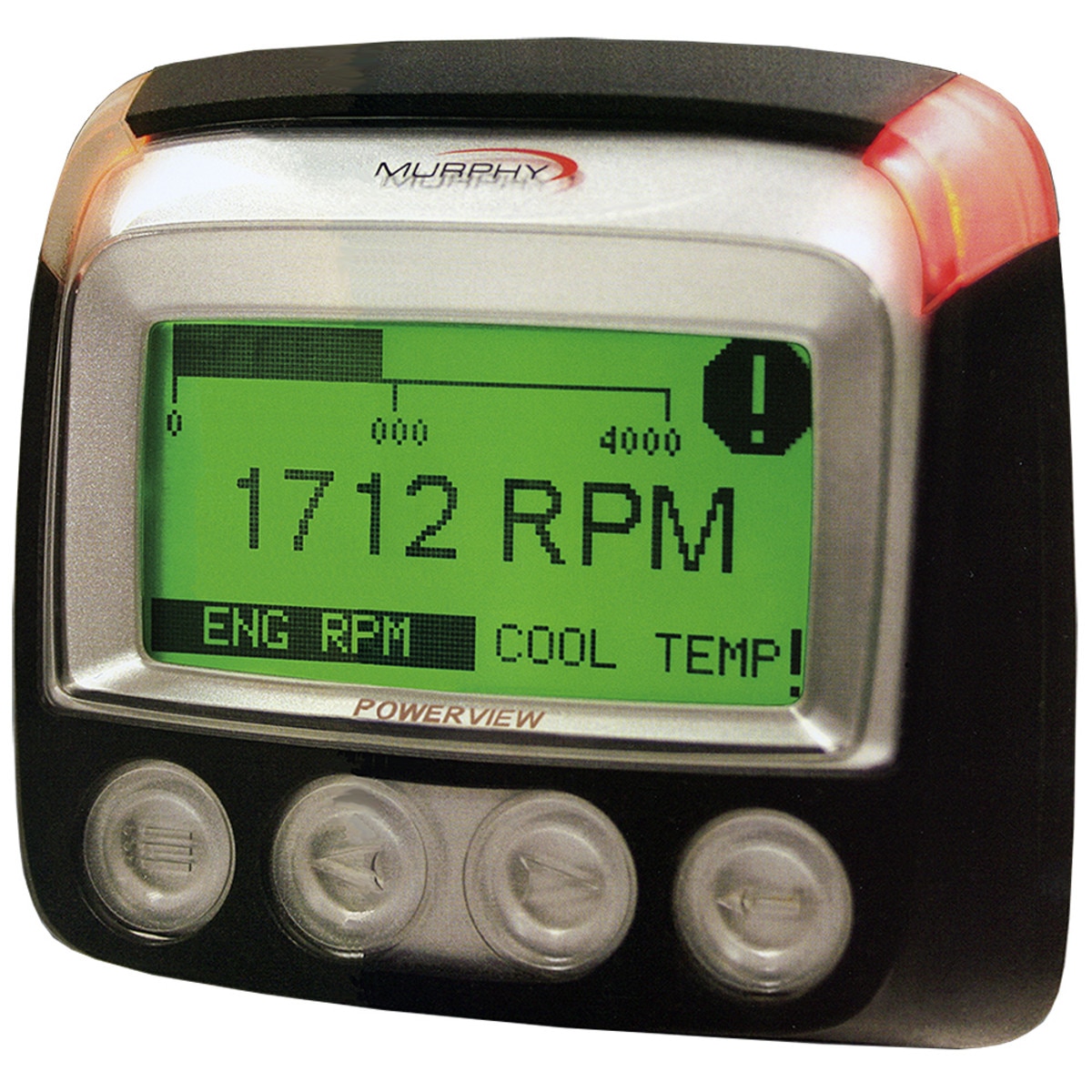

PV101-C PowerView™ Display Module (78700439) *DISCONTINUED*
PV101-C PowerView™ Display Module (78700439) *DISCONTINUED*
PRODUCT IS DISCONTINUED: Please click below for replacements
Check out the S35: The S35 is designed to succeed the PV101. It features a rugged, compact design with a color LCD and tactile buttons, making it suitable for outdoor use. The S35 supports CAN J1939, CAN Open, and RS485 serial communication, allowing for integration into various applications. It includes configurable software for customizing parameters, color schemes, and company logos, and supports multiple languages and data logging.
Another replacement is the JDR100: The JDR100 is designed for universal compatibility with electronic engines and devices equipped with J1939 compatible Electronic Control Units (ECUs). The JDR100 is a cost-effective option, particularly for those who don't need all the features of a modern display like the S35, and it can serve as a drop-in replacement for the PV101 in most applications that don't require Diesel Tier 4 or newer emissions information.
Click Here to see a comparison chart between the JDR100, S35 & PV101
Click Here for the article that compares the Enovation Controls PV101, S35, and Governors America Corp JDR100
MORE INFO ON THE PV101 For Archival Purposes only.
This specific model of the PowerView™ Model PV101-C is a direct replacement for an older version, known as the PV101-A / Part Number 78700244. Non-Tier IV.
MurCal has taken a brand-new display and reprogrammed it with the original PV101-A software. This display provides a window into modern electronic engines and transmissions. As expected, this PV101 offers a wealth of features that make it the "go-to" display for many applications.
PV101-C FAQ
Q: Is it Plug & Play?
A: Yes, it is, but it needs to be configured to your engine’s specific application.
Q: Which Model is Best for my Application?
A: There are 2 models:
1. 78700439 -PV101-C: PowerView™ Display Module (murcal.com)
Works with engines rated Tier 3 and under.
2. 78700615 -PV101-C: New and Improved PowerView™ - Murphy Standard, Tier 4 (78700615) (murcal.com)
Works with Tier 4 engines.
Literature
- Sales Bulletin
- User's Guide
- Configuration Software V3.2 Installation and Operations Manual
- Implementation of SAE J1939 Parameters
- Wiring Harness Accessories for PV101C and PVA Gages
- Wiring Diagrams (w/ optional PVA Gages)
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
