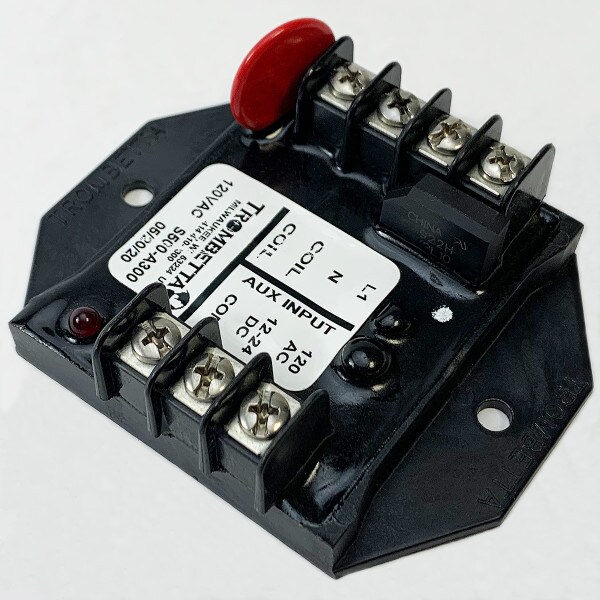

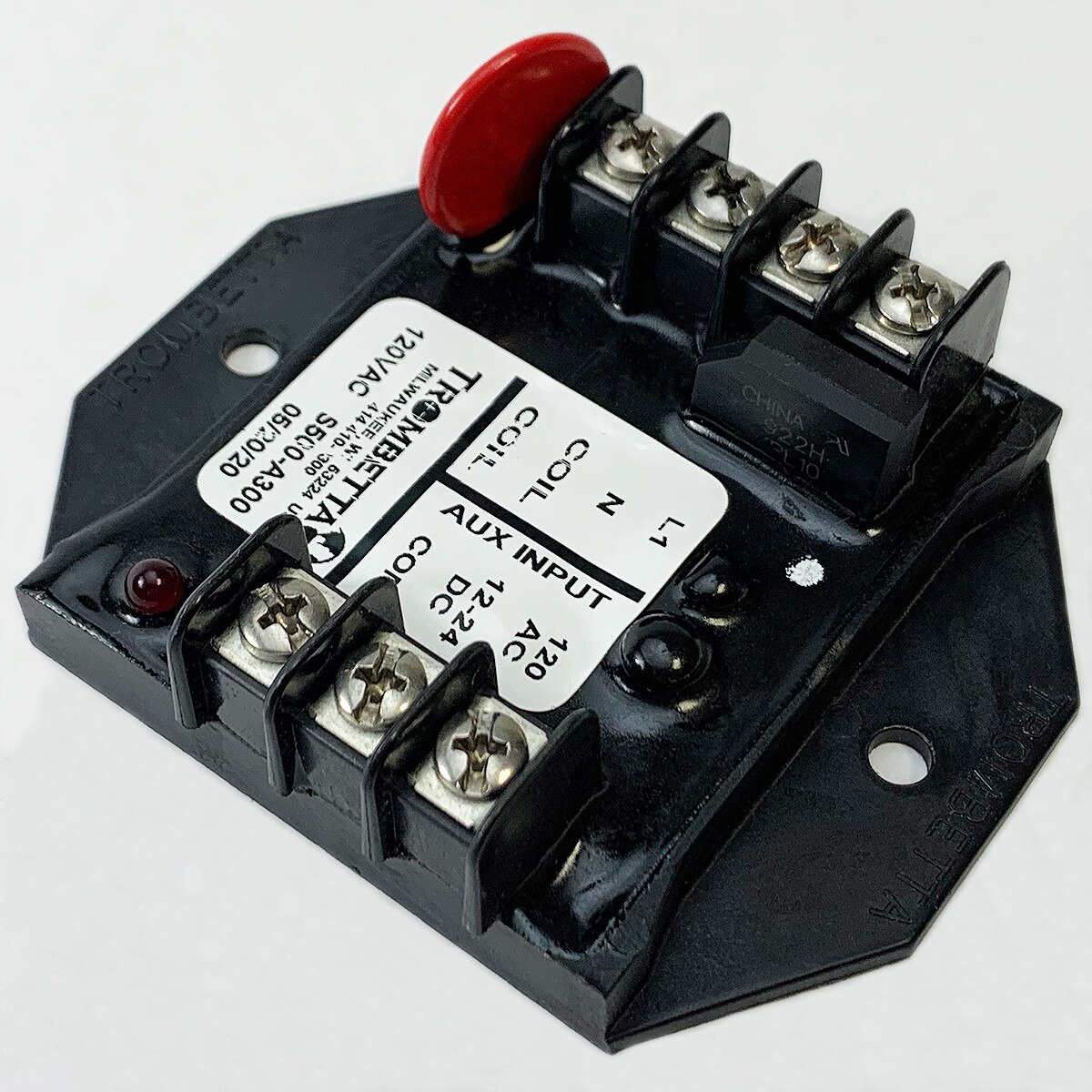

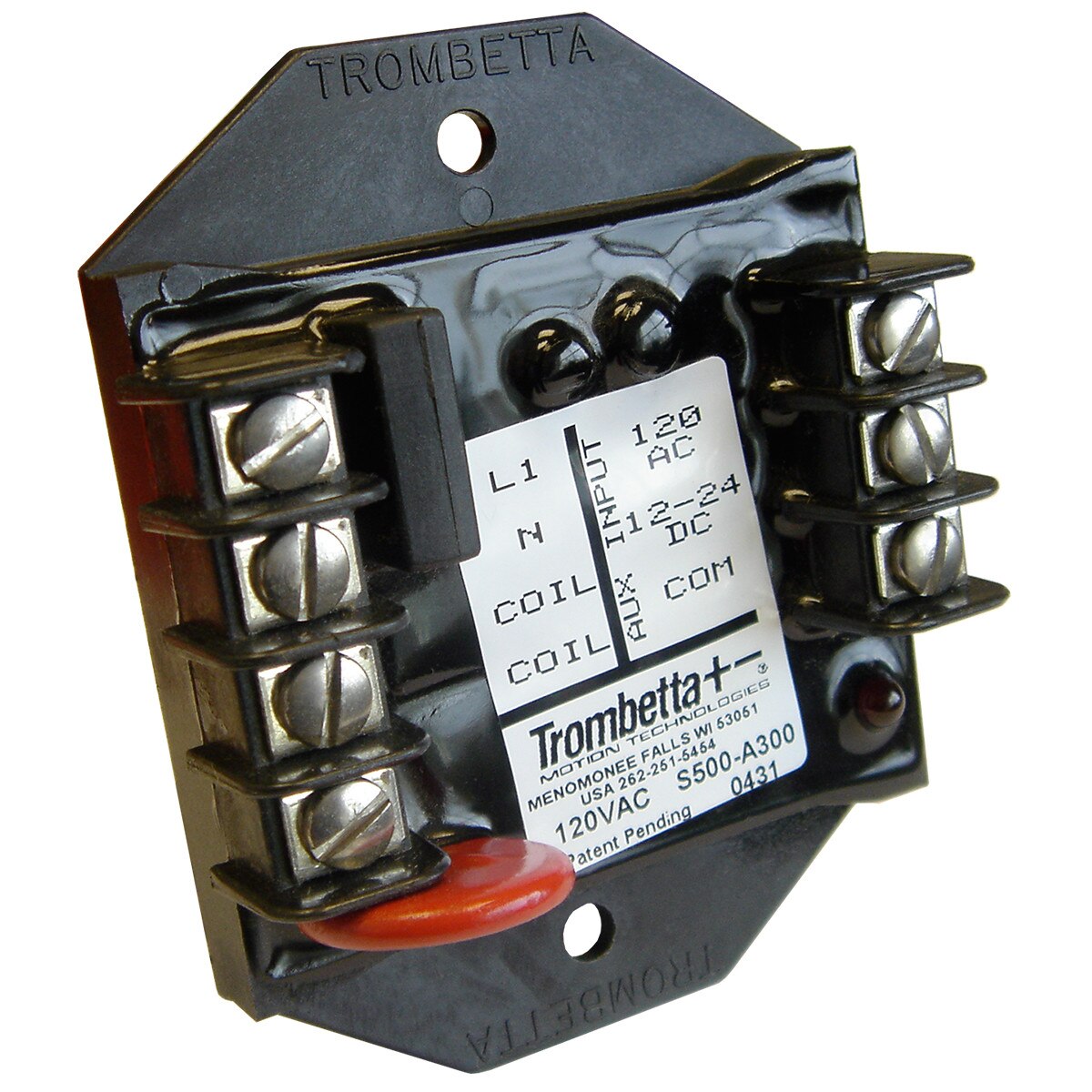

Trombetta S500-A300 Electronic Control Module, 120 Volt
Trombetta S500-A300 Electronic Control Module, 120 Volt
Trombetta's S500-A300 electronic control is designed to enhance solenoid performance by increasing force capability and reducing operating temperature. The S500-A300 regulates the magnitude of electrical drive applied to the coil during the pull in and/or hold operation of the solenoid to optimize the performance of the solenoid.
This module is built for single-winding solenoid applications, and gives you the option of using AC or DC voltage for the Aux trigger signal. It accepts your 2-wire switched input (90-130VAC or 12-24V) and applies full voltage to the solenoid coil.
The module operates in the following manner: When a remote control signal is applied to the Aux input of the module it applies full voltage to the solenoid coil. After the actuation time (approximately .5 seconds) the module reduces the output voltage to the solenoid by a factor of 13% to 16% of the input voltage for continuous duty. This reduced voltage level is applied to the coil until the control signal is removed.
The A300 module will adjust its duty cycle depending on the line voltage. This module also offers an LED display. The LED will display if the module is in the pull or hold mode and will indicate lower power cut off since the last trigger request. For example, the LED will display bright if the module is in the pull mode, dim when the module is in the hold mode, and will flash to indicate low power cut off since the last trigger request.
This model has a response time of 10 ms using a separate trigger source, and 40 ms when Aux-in is hard wired to the power source. The module can power a 2400 Watt coil maximum, and features variable pulse width modulation (PWM) dependent upon line voltage. Termination is Beau connectors, 6-32 panhead.
Literature:
- Electronic Controls Brochure
- Sales Bulletin: S500-A300
- Instruction Sheet: S500-A300
- Dimensions & Wiring Diagrams: S500-A300
