SenderCAN PLUS (78700683)
Details

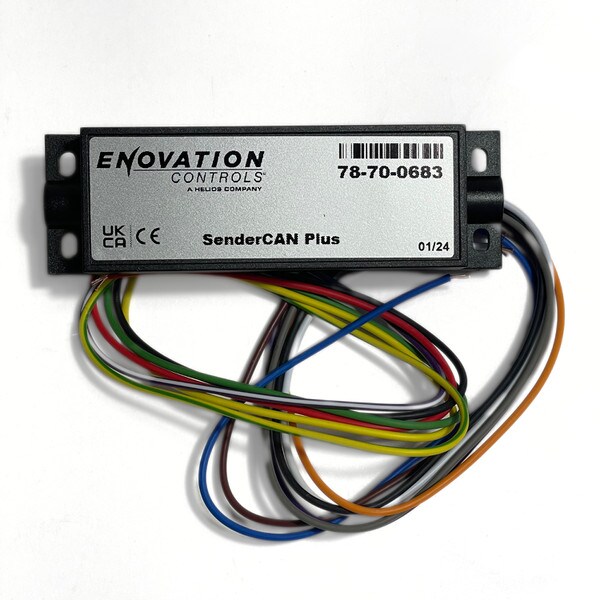

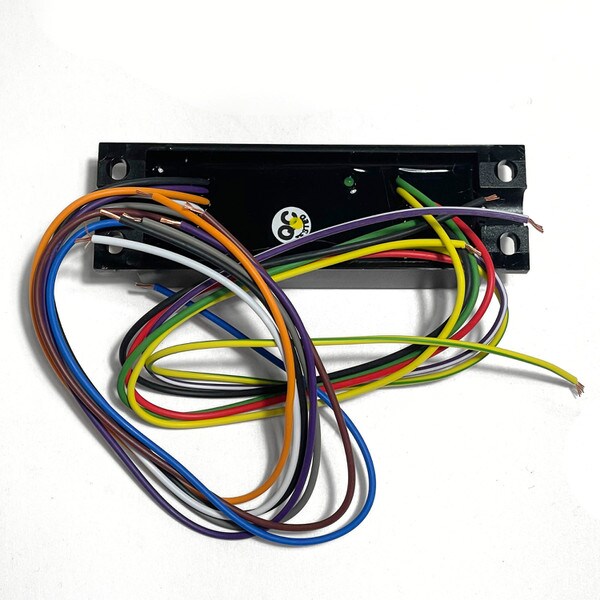

SenderCAN PLUS - Configurable with MVP config tool (78700683) *Can be programmed to 78700694 or 78700695
SenderCAN PLUS is a user configurable I/O Module Part Number 78700683 and is designed to convert up to four switch, resistive, voltage, or current inputs into J1939 parameters that are broadcast on a CAN network which can then be used by any J1939 compliant device. Two outputs are available that can be controlled by a J1939 CAN message or driven by internally generated alarms. A separate dedicated input is available to convert a frequency signal into Engine Speed or Vehicle Speed.
A free simple to use Configuration Tool allows the developer to select all the input/output settings for their custom application. A complete J1939 library is included with the ability to create custom J1939 messages.
Specifications
Electrical:
Power supply
Operating Voltage: 7-35 VDC, protected against reverse polarity.
Current consumption: 25mA (typ.)
Inputs: (4) software configurable (0-5V (measurable
Range 0-4.6V), 0-32V, 4-20mA,
Resistive, Close to ground switch, Close to positive switch).
Digital Outputs: (2) low side open-drain, capable of sinking 250 mA max.
Speed (magnetic pickup): 1 optically isolated frequency input, 3 - 30 VRMS, 30 Hz - 10 kHz.
Communications:
CAN: (1) CAN 2.0B.
Protocols: J1939.
Terminating resistor: Configurable 120 Ohm resistor
Environmental:
Operating Temperature: -20°C to +85 °C (-4 °F to +185 °F)
Storage Temperature: -40°C to +85°C (-40 °F to +185 °F)
Protection: IP65 case, exposed lead ends.
Emissions/Immunity: SAE J1113-11; (CE) - EN 61236-1:2013, EN 61326-1:2013 (2014/30/EU)
Case material: High impact ABS enclosure, epoxy filled
Environmental sealing: IP65 case, exposed lead ends
CAN Outputs (software enabled):
Monitor and broadcast internal battery voltage.
Accumulate and broadcast machine hours.
