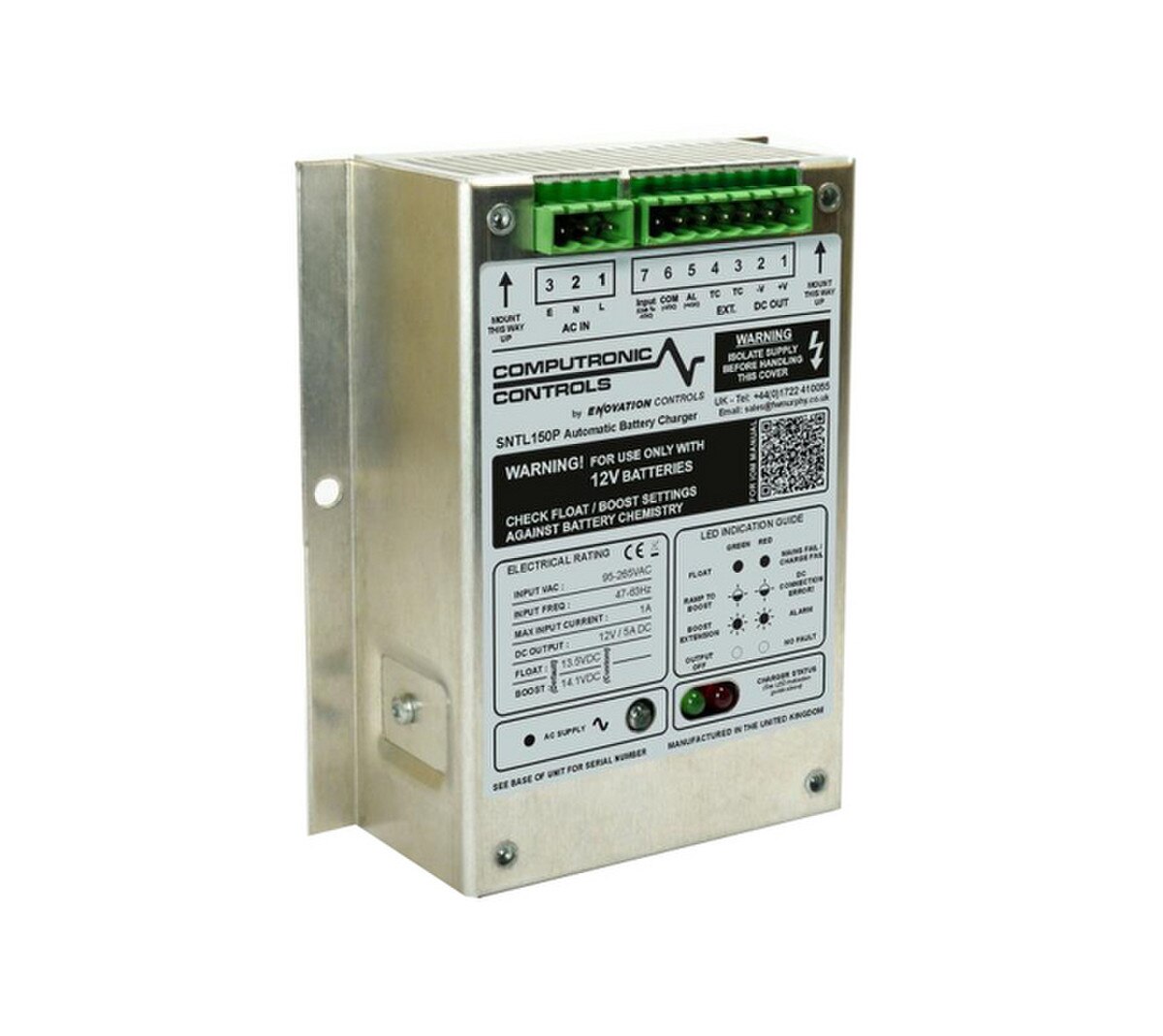

Sentinel 150 12V/5A SNTL150P Automatic switch mode battery charger (42703810)

Sentinel 150 12V/5A (42703810) - SNTL150P Automatic switch mode battery charger, 12V/5A nominal output, 95-265Vac 47-63Hz input, calibrated for lead acid batteries (can be re-calibrated for alternative batteries using the SNTL150P-PCSUITE software tool), Auto-boost and temperature compensation (requires RTC sensor) – includes required mating connectors.

Product Discontinued and Replaced by the 300 Series

The Sentinel 150P is a range of highly efficient, high performance battery chargers, designed for continuous float charge and standby power applications. Switch mode technology provides major advances in power supply and battery charger design, giving a compact and lightweight construction, improved efficiency and low heat dissipation, wide supply voltage tolerance and low output ripple.

The chargers are configured for fast, accurate charging, to give optimum battery life and reliability. Each charger's output can be OEM-configured for optimal charging of different cell types: vented/wet lead acid, Calcium-Calcium, sealed VRLA (AGM or Gel), NiCd or custom requirements. The very smooth output (< 1% ripple) allows charging of sealed or vented batteries or use as a stand-alone power supply.

All models feature an intelligent, multi-stage charge regime: during charge recovery mode, the Sentinel gives a constant (maximum) current output; as the battery approaches peak charge, the output reverts to float charge mode, maintaining an optimum cell voltage and supplying additional standing load current up to the rated maximum. Output current is always limited to the rated maximum, even during high load (e.g., engine cranking), short-circuit or reverse polarity connection.

  Features

• Switch mode power supply technology: light and compact, power efficient with low heat dissipation.
• Multi-stage, low ripple charging: 12 V/5 A or 24 V/5 A.
• Versatile: OEM-configuration gives optimized output for different battery types, plus programmable I/O functions.
• AutoBoost and temperature compensation.
• Open frame with protective cover, for surface mounting inside a panel.
• For stationary engine, genset and standby power applications.

Literature:

Sales Bulletin
