Sentinel 300P, 12/24VDC, 10A, Enclosed, Analog-Metered Battery Charger (42703879)

(0)No Reviews yet
$1,154.49
SKU: Sentinel 300PM, 12/24VDC, 10A, Enclosed, Analog (42703879)
Please contact us for pricing and availability. 661.272.4700 or sales@murcal.com Thank you!

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

Sentinel 300PM, 12/24VDC, 10A, Enclosed, Analog Volts/Amp, Programmable, ESNTL300PM (42703879)


The Sentinel 300P, 12/24VDC, 10A Enclosed, Analog-Metered Battery Charger provides new levels of DC power control, monitoring and protection for stationary engine starting and standby battery applications.
This microprocessor-controlled charger features switch mode charging technology, high power efficiency and low heat dissipation, plus wide supply voltage tolerance.

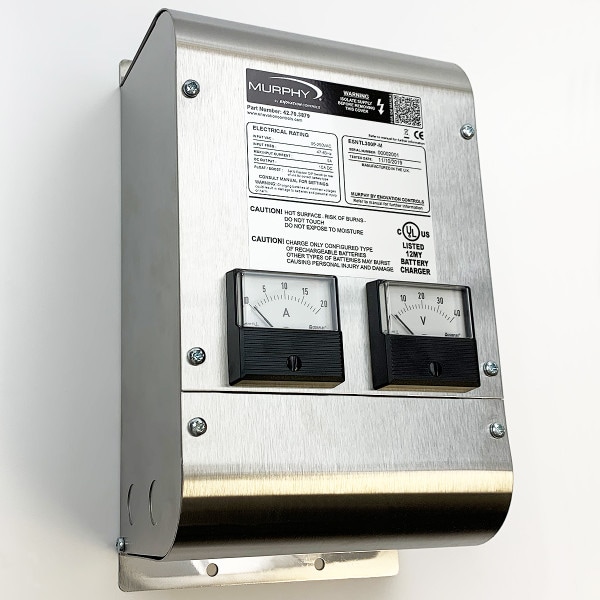

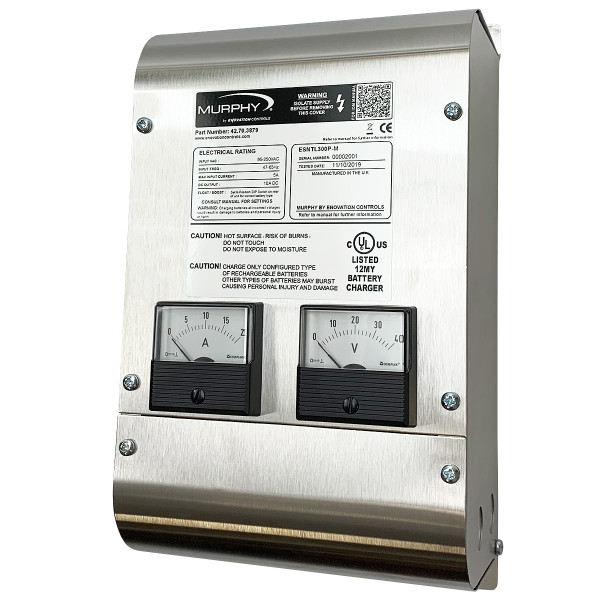

This model features an analog voltmeter and an analog ammeter, side-by-side, on the front of the panel.



Standard features include:

  • Multistage Charging, including Auto Boost, which ensures no compromise between rapid charge recovery and long-term battery capacity and life.
  • Low Output Ripple, which is beneficial for vented lead acid and NiCd cells, essential for VRLA, and configurable as a stand-alone DC power supply.
  • Temperature Compensation, whereby the Sentinel measures temperature with a battery mounted sensor and adjusts output voltage to prevent under or over charging.

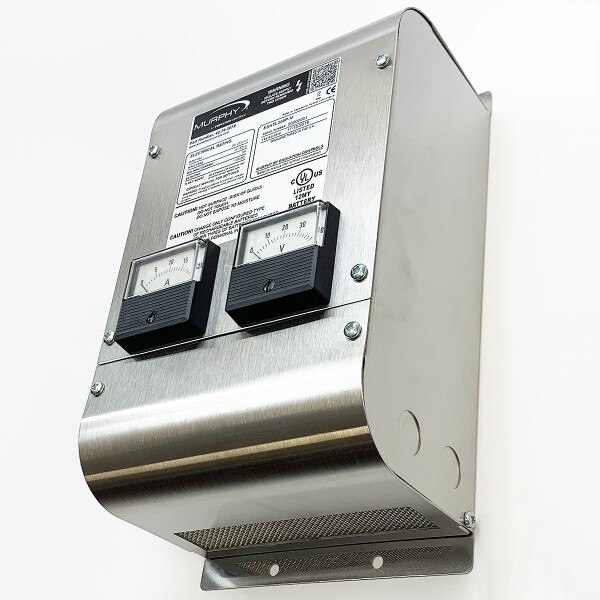

  • This UL-listed, stainless-steel, wall-mounted enclosure connects using a wire harness, accessed by knock-out cable gland holes in the case side.
  • Battery type is selected by circuit board DIP switches or SNTL-PCSuite configuration software. Nominal voltage is 12 or 24 volts, programmable.
  • Float/boost voltage is also programmable.
  • The unit measures 6.5" (165 mm) wide, 11.81" (300 mm) high, and 4.92" (125 mm) deep. Weight: 4.4 - 4.6 lbs (2.0 - 2.1 kg).
  • This model accommodates the following battery types: 12 Volt: Wet (vented) lead acid (6 cells), Calcium-Calcium (6 cells), Lead acid Antimony (6 cells), VRLA / AGM (6 cells), VRLA / Gel (6 cells), NiCd (10 cells). 24 Volt: Wet (vented) lead acid (12 cells), Calcium-Calcium (12 cells), Lead acid Antimony (12 cells), VRLA / AGM (12 cells), VRLA / Gel (12 cells), NiCd (18 cells), NiCd (20 cells).


Literature:


Sales Bulletin



MurCal is an Authorized Distributor of Enovation Controls products.
MurCal provides experienced application and product support, before and after the sale.
