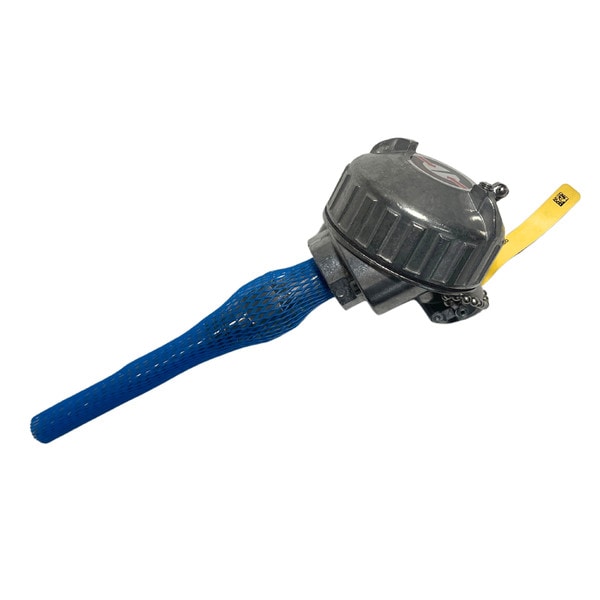

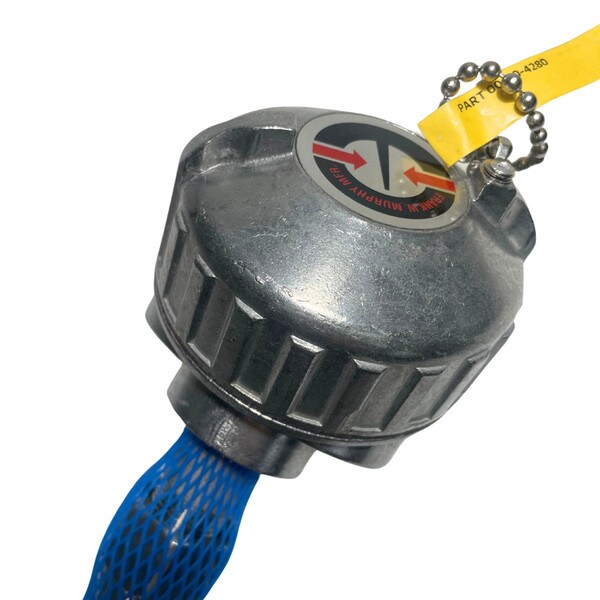

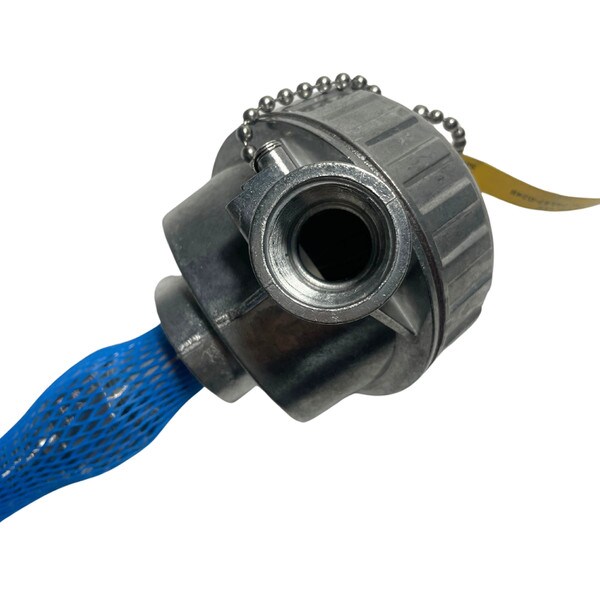

TCK-245 K Type underground thermocouple 1/2 NPT(10704211)
TCK-245 K Type Underground Thermocouple, 1/2 NPT, 4-1/2 in. (114 mm) insertion length (10704211)
The Murphy Thermocouple Assembly TCK-245 features a 304 stainless steel thermowell that provides protection to the spring loaded element. The cast aluminum connecting head meets NEMA 4 requirements and includes a thermocouple. The TCK-245 has ungrounded elements in a 304 stainless steel spring loaded sheath.
Applications: Enovation Control’s temperature sensing assemblies fit in a variety of industrial processes and applications. Their ruggedness and characteristics make these assemblies a popular and price-competitive choice.
FEATURES:
- 1/2 NPT Thread
- Type K Ungrounded Thermocouple
- 304 Stainless Steel Thermowell Protection
- Compatible with Digital Swichgage
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
