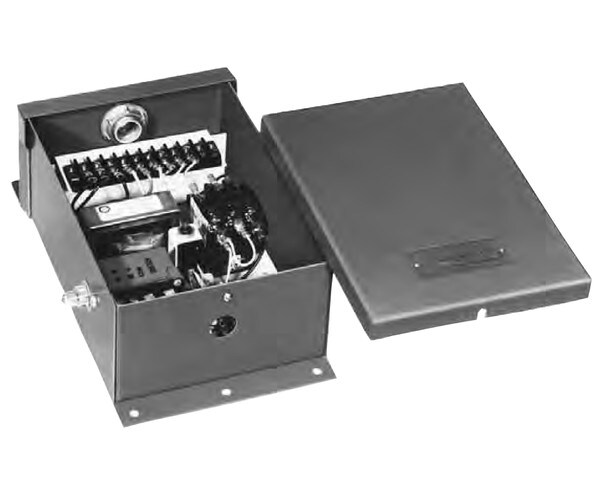

TR1761 Transformer Relay Assembly (45700002)

TR1761: Transformer Relay Assembly; Electric Motor Controller  (45700002)

The Murphy TR Series, Transformer Relay Assemblies are electric motor controllers.
All TR Series internal control circuits are completely prewired and relays are plug in type to facilitate field servicing.
NEMA 1 enclosure is standard on all TR Series models.
NEMA 3 weatherproof enclosure, and “LC” Less Case versions are optional.
Murphy SWICHGAGE® instruments for pressure, temperature, level etc., can be used with the TR’s for semiautomatic or totally unattended operation and control of your electric motor powered equipment.
Controls up to 480 Volts A set of normally open, dry relay contacts controlled by a 24 VAC relay coil, controls the magnetic motor starter holding coil up to 480 volts. The high voltage contacts are completely isolated from the low voltage control to help reduce electrical hazards.

Features

■ Heavy-duty transformer with multiple primary taps for easy connection to most any available AC power sources.
■ 24 VAC low Voltage secondary control circuit with terminals for remote auxiliary switches.
■ Plug-in relays have three SPDT silver cadmium oxide contacts providing long life reliability.
■ Power relay has extra heavy silver cadmium oxide contacts rated 10 amp, 480 VAC.
■ When TR is used with a Murphy Analog SWICHGAGE® , it allows for visual reading of operating conditions, and provides an adjustable differential between high and low settings throughout the SWICHGAGE® dial range.

Literature

Sale Bulletin
