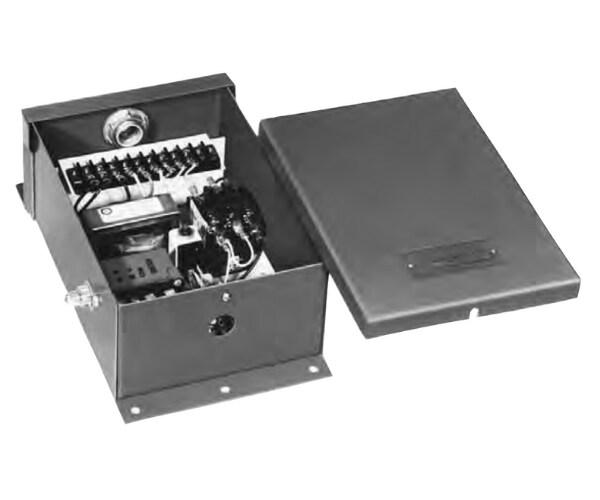

TR7207-LC Electric Motor Controller (45700019)

TR7207-LC: Transformer Relay Assembly; Electric Motor Controller; Less Case (45700019)

The Murphy TR Series Transformer Relay Assemblies are electric motor controllers. It is used for emergency shutdown of electric motors driven equipment which are manually started. Tattletale® indicates shutdown and locks out power until the malfunction is corrected and the Tattletale is reset. A momentary power failure during shutdown will not void the lockout feature. For use with standard, normally open, one-wire to ground Murphy Swichgage instruments.

Murphy Swichgage® instruments for pressure, temperature, level etc., can be used with the TRs for semiautomatic or totally unattended operation and control of your electric motor powered equipment. A set of normally open, dry relay contacts controlled by a 24 VAC relay coil controls the magnetic motor starter holding coil up to 480 volts. The high voltage contacts are completely isolated from the low voltage control to help reduce electrical hazards.

Features:

• Heavy-duty transformer with multiple primary taps for easy connection to most any available AC power sources
• 24 VAC low voltage secondary control circuit with terminals for remote auxiliary switches
• Plug-in relays have three SPDT silver cadmium oxide contacts providing long life reliability
• Power relay has extra heavy silver cadmium oxide contacts rated 10 amp, 480 VAC
• When TR is used with a Murphy Analog Swichgage, it allows for visual reading of operating conditions and provides an adjustable differential between high and low settings throughout the Swichgage dial range

Specifications:

• Murphy Part No.: TR7207-LC
• Series: TR Series
• Option: Less Case
• Transformer: Primary (power supply) with triple taps for 120/240/480 VAC; 50/60 Hz; Secondary (control supply) 24 VAC
• Power Rating: 25 VA
• Terminal Blocks: High Voltage rated at 30 A, 600 V; Low Voltage rated at 20 A, 300 V
• Control Relays: Plug-in, 120 V, 10 A contact rating
• Power (holding): 10 A, 480 VAC, SPST
• Control (auxiliary): 480 VAC, 690 VA pilot duty
• Conduit: Top: 3/4 in. hub; Bottom 1/2 in. hole
• Applications: for emergency shutdown of electric motors driven equipment which are manually started
• Approximated Shipping Dimensions: 15 x 15 x 7 in. (381 x 381 x 178 mm)
• Approximated Shipping Weight: 14 lb. (6.35 kg)

Literature:

Sales Bulletin
