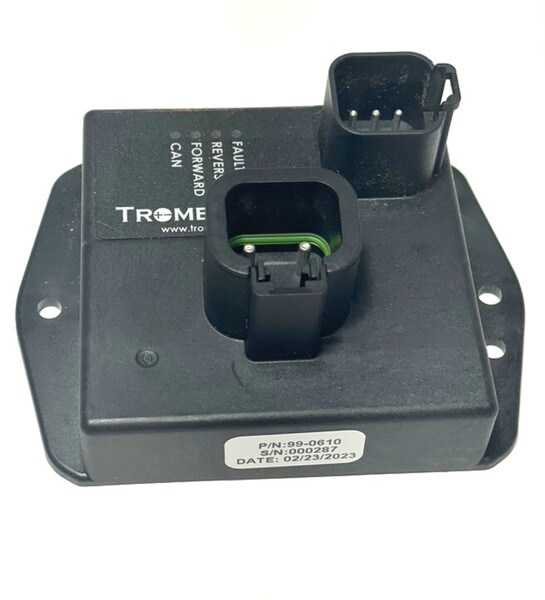

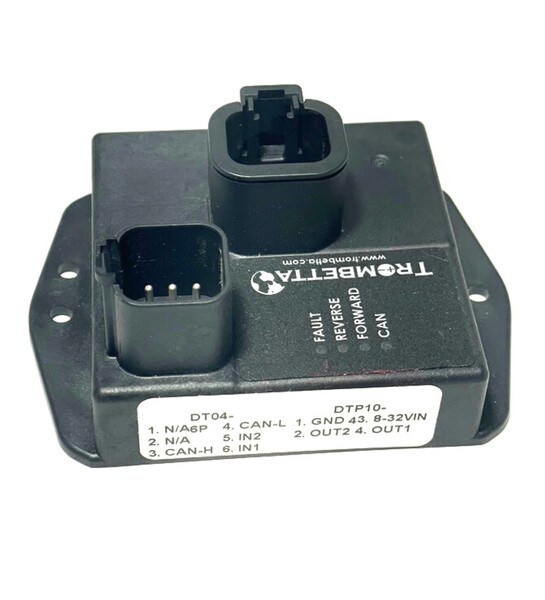

Trombetta J1939 H-Bridge Module (99-0610)

(0)No Reviews yet
$127.99
SKU: Trombetta J1939 H-Bridge Module (99-0610)

This item is IN STOCK

Current Stock: 141

Trombetta J1939 H-Bridge Module (99-0610)

(Replaces - 99-0011)

Control output direction, frequency, duty cycle and peak current via CAN. Operating voltage of 12V to 24V with a max output current of 20A. Built in short circuit and overload protection along with reverse battery and voltage transient protection.

PLEASE NOTE: In case you're getting this message "error for a short circuit in the reverse direction", here's what Trombetta has to say:

For this HBRIDGE module (and other output modules we have made) – we have seen customers experience short circuit fault reporting due to spikes of current/voltage. For instance, customers driving motors, flywheels, and other similar type equipment often will have inrush current upon startup or change of direction. The spikes are significantly higher than nominal current draws of the equipment, thus tripping the modules output, but can only really be detected by getting an oscilloscope reading during the event


Literature:

  1. Sales Bulletin
  2. DBC File

MurCal is an Authorized Distributor of Trombetta products.
MurCal provides experienced application and product support, before and after the sale.

For California customers: Prop 65 WARNING: This product may have been manufactured with or uses components that can expose you to chemicals which are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.
