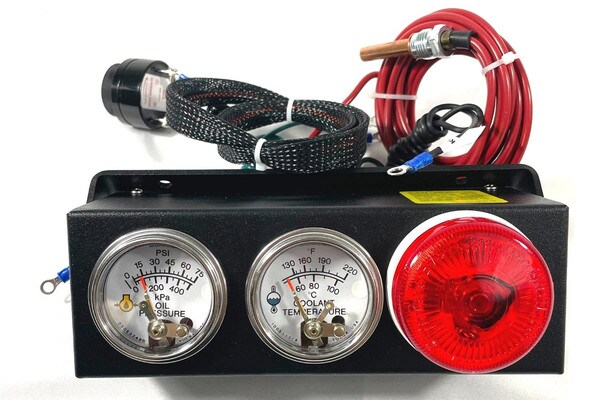

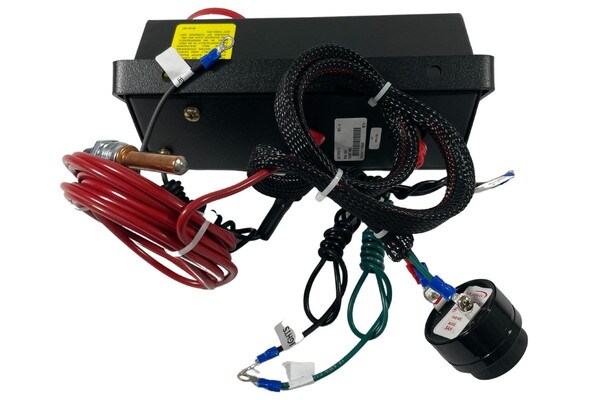

WAI2-C12 Swichgage® Shutdown Panels for Mobile Equipment (30700073)

WAI2-C12: Enclosed Engine Panel; Oil Pressure and Coolant Temp Swichgages; 12 ft Capillary (30700073)

WAI Series Murphy panels offer engine protection for on and off-road mobile equipment. You get accurate engine readings and time delayed automatic shutdowns.
Flashing light and mini siren signal a warning before the shutdown. Alarm-only panels (without shutdown capabilities) are also available. WAI panels are easy to install and function test without the need for expensive auxiliary equipment.
The WAI Series Panels are complete diagnostic, engine-protection systems. Any vehicle or engine can be monitored and in case of potentially damaging conditions an alarm will operate before the engine is shut down.
WAI Panels feature direct-reading, mechanical Swichgage instruments (gauge and limit switch in one) and Selectronic relays and alarms. Swichgage instruments are internally lighted for night illumination.

WAI-2: Completely enclosed and with convenient under-dash mounting provides Swichgage instruments for low oil pressure and high coolant temperature; visual and audible alarms before automatic shutdown. Includes a 270°pivoting, mounting bracket.

Specifications:

• Enclosed Panel
• Oil Pressure Swichgage instrument
• Coolant Temperature Swichgage instrument
• Mini siren
• FL3/TL2 flasher and light
• 760AF Magnetic Switch with 30 second time delay for alarm before shutdown.

Literature:

Sales Bulletin
