WD300LV-E6 Swichgage® Shutdown Panel (30700086)

(0)No Reviews yet
$370.49
SKU: WD300LV-E6 (30700086)

This item is IN STOCK

Current Stock: 15

WD300LV-E6: Swichgage® Shutdown Panel; Less SV Fuel Valve, 6 foot capillary temperature gage. (30700086)


The WD300LV-E6 Swichgage® Shutdown Panel is the ideal control solution for a wide variety of diesel engines that have the fuel shut-off solenoid built into the injection pump.
This panel features a 6 foot capillary on the temperature gage.

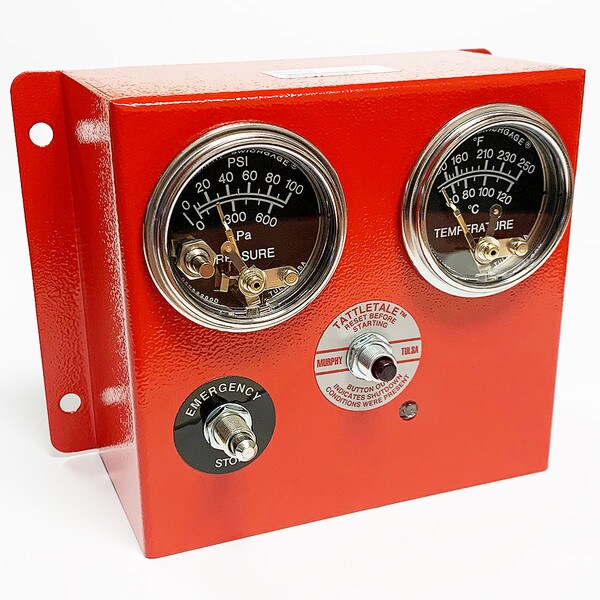

The panel includes a Low Lube Oil Pressure Swichgage®, a High Coolant/Temperature Swichgage®, a 117PH Magnetic Switch and an emergency stop push button. The WD300LV does not include an SV Series Solenoid Fuel Shutoff Valve.

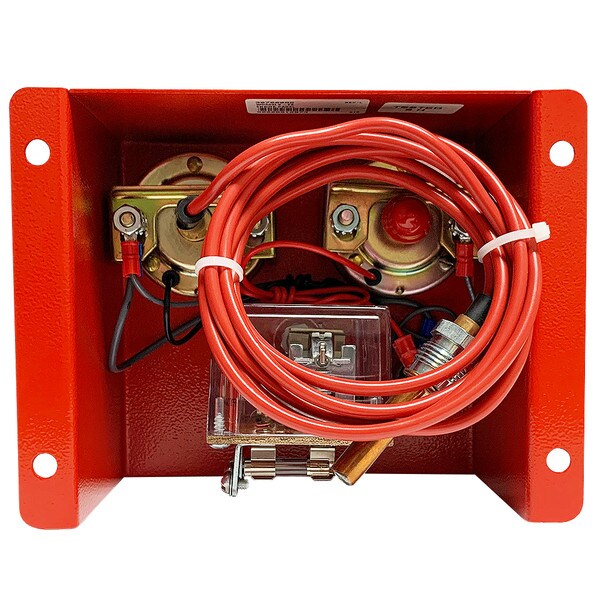

The panel is a universal design, enclosed on the top, bottom and both sides. The back of the panel is open and flanged mounting brackets are on both sides.

20P Oil Pressure Swichgage®: 0-100 psi (0-689 kPa) [0-6.89 bar]; 1/8 NPT process connection.
20T Temperature Swichgage®: 130-250˚F (54-121˚C); 72 inch (1.8 m) capillary; 1/2-14 NPT process connection.
117PH Magnetic Switch
PB128S Emergency stop push button


Literature



  1. Sales Bulletin
  2. General Installation Instructions
