WD300LV-E10 Swichgage® Shutdown Panel (30700200)

(0)No Reviews yet
$566.99
SKU: WD300LV-E10 (30700200)

This item is IN STOCK

Current Stock: 1

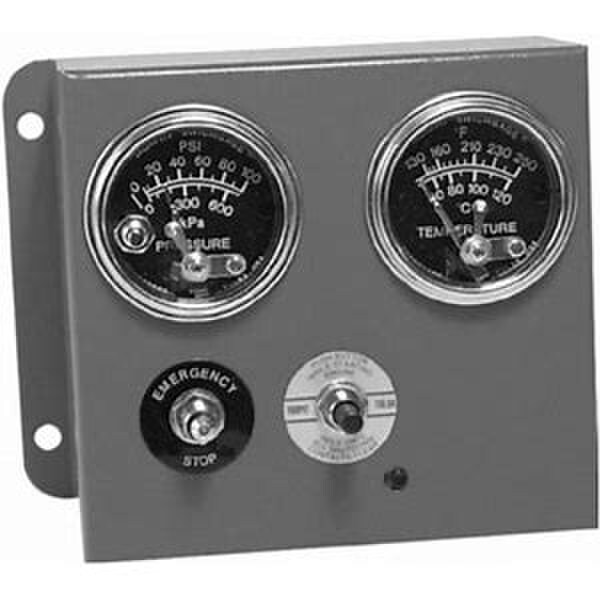

WD300LV-E10: Swichgage® Shutdown Panel; Less SV Valve, 10 ft capillary on temp gage (30700200)

The WD300LV Swichgage® Shutdown Panel is the ideal control solution for a wide variety of diesel engines that have the fuel shut-off solenoid built into the injection pump.

The panel includes a Low Lube Oil Pressure Swichgage®, a High Coolant/Temperature Swichgage®, a 117PH Magnetic Switch and an emergency stop push button. The WD300LV does not include an SV Series Solenoid Fuel Shutoff Valve. The panel is a universal design, enclosed on the top, bottom and both sides. The back of the panel is open and flanged mounting brackets are on both sides.

20P Oil Pressure Swichgage®: 0-100 psi (0-689 kPa) [0-6.89 bar]; 1/8 NPT process connection.
20T Temperature Swichgage®: 130-250°F (54-121°C); 48-inch (1.2 m) capillary; 1/2-14 NPT process connection.
117PH Magnetic Switch
PB128S Emergency stop push button



Literature:

  1. Sales Bulletin
  2. General Installation Instructions



MurCal is an Authorized Distributor of Murphy by Enovation products
MurCal provides experienced application and product support, before and after the sale
