AEC101 Automatic Engine Controller (30700861)

(0)No Reviews yet
$943.49
SKU: AEC101 (30700861)

This item is IN STOCK

Current Stock: 3

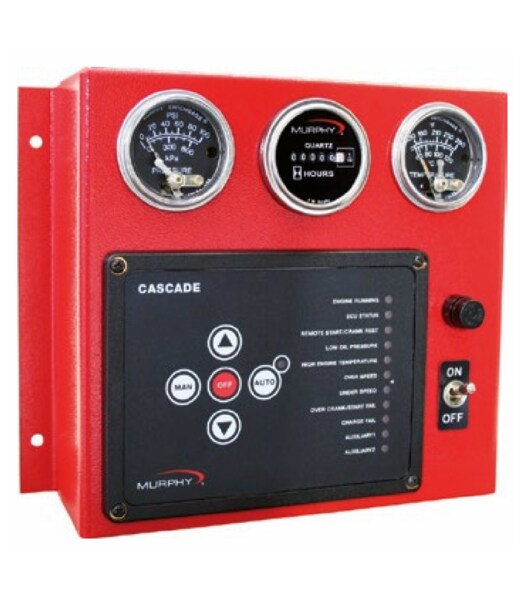

AEC101 Automatic Engine Controller (30700861)

The AEC101 Automatic Engine Controller provides simple, yet sophisticated engine automation. It features basic automatic start/stop capabilities plus other features found on more advanced and expensive controllers, all in an easy-to-install panel.
The AEC101 operates from 12- or 24-volt systems. It includes crank and rest cycles, sensing circuits for crank disconnect and overspeed, over-crank and re-crank on false starts. The top LED for engine running indicates when crank disconnect occurs. Four of the up to six shut-down LEDs are dedicated for low oil pressure, high engine temperature, overspeed and underspeed. Two remaining LEDs can be established for first-out shutdown indication through auxiliary inputs 1 and 2.
The built-in oil pressure and water temperature Swichgage® instruments provide visual indication and can be set to initiate shutdown.
The electromechanical quartz-based hourmeter can record up to 9,999.9 hours. It is housed in a shock-proof case and built to be rugged and durable for a long life.
The Cascade controller allows manual or automatic selection of the operation sequence.
Additional features of the AEC101 are an adjustable shutdown lockout delay, engine running indication LED, advanced microprocessor technology and a convenient hat bracket design for simple engine mounting.

Literature:


Sales Bulletin


MurCal is an Authorized Distributor of Enovation Controls products.
MurCal provides experienced application and product support, before and after the sale.
