AgZone™4 Power/CAN Adapter Harness (6519015)

AgZone™4 Power/CAN Adapter Harness 7ft (6519015)


Enhance the Capabilities of TEC-10, ML1000 and ML2000-R2 Controllers

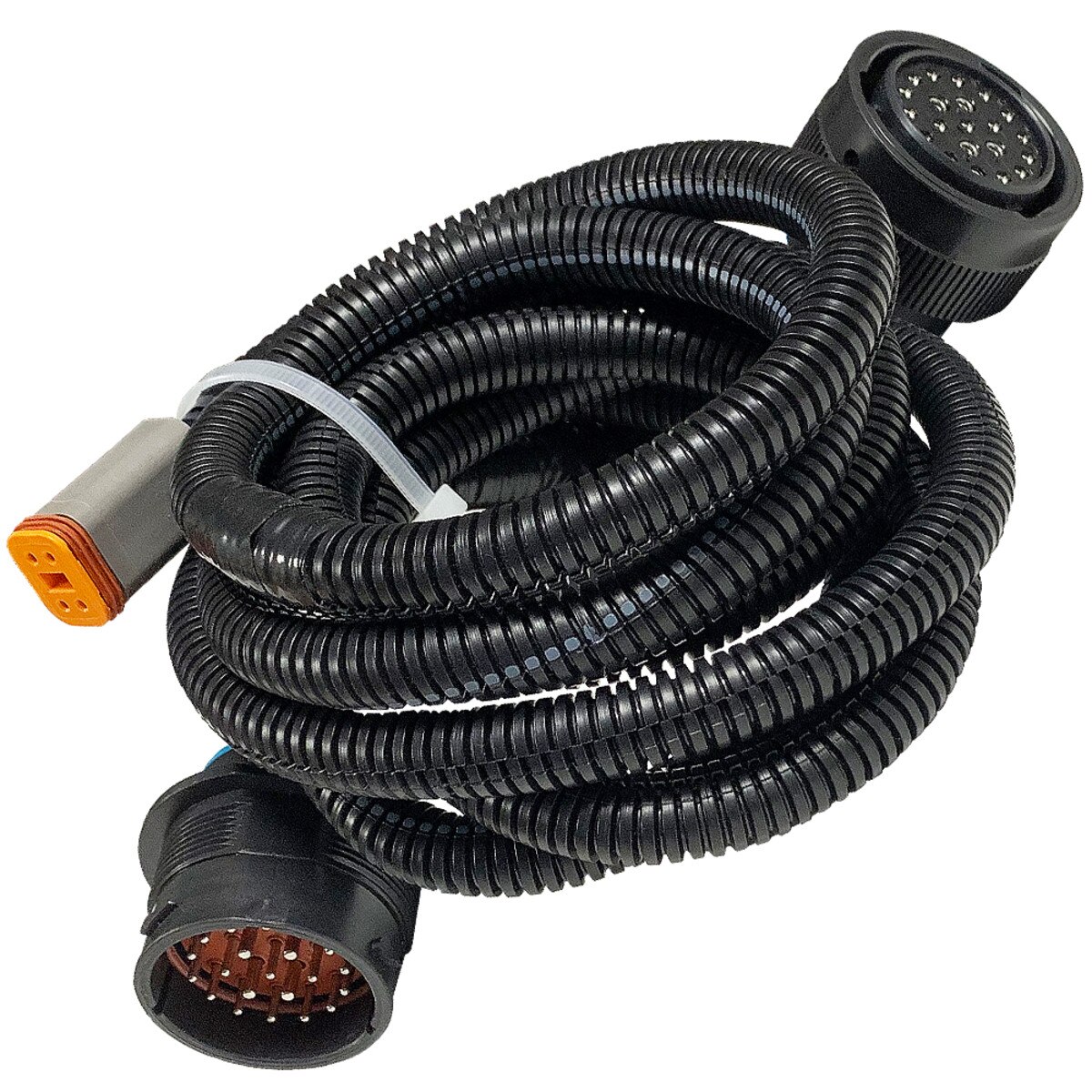

The AgZone™4 Power/CAN Adapter Harness is 84” (7 foot / 2.13 meter) in length, and includes Deutsch Pin Plugs, Receptacles, and Wedgelocks, combined with Omni Cable and 18GA wire encased in High Temperature Split Loom.

The Power/CAN Adapter Harness is necessary to power MurCal's AgZone™4 Four Button Keypad (6518014) and to provide communication between the controller and the keypad buttons on any one of the following Murphy PowerCore® controllers, when configured with MurCal’s proprietary software:

   •  AgZone™4 TEC-10 Engine Control Panel (4018035)
   •  AgZone™4 ML1000-4X Engine Control Panel (4018034)
   •  AgZone™4 ML2000-R2-4X Engine Control Panel (4018033)
   •  AgZone™4 ML2000-R2-Metal Engine Control Panel (4018038)

Literature


AgZone™4 Power/CAN Adapter Harness Bulletin
