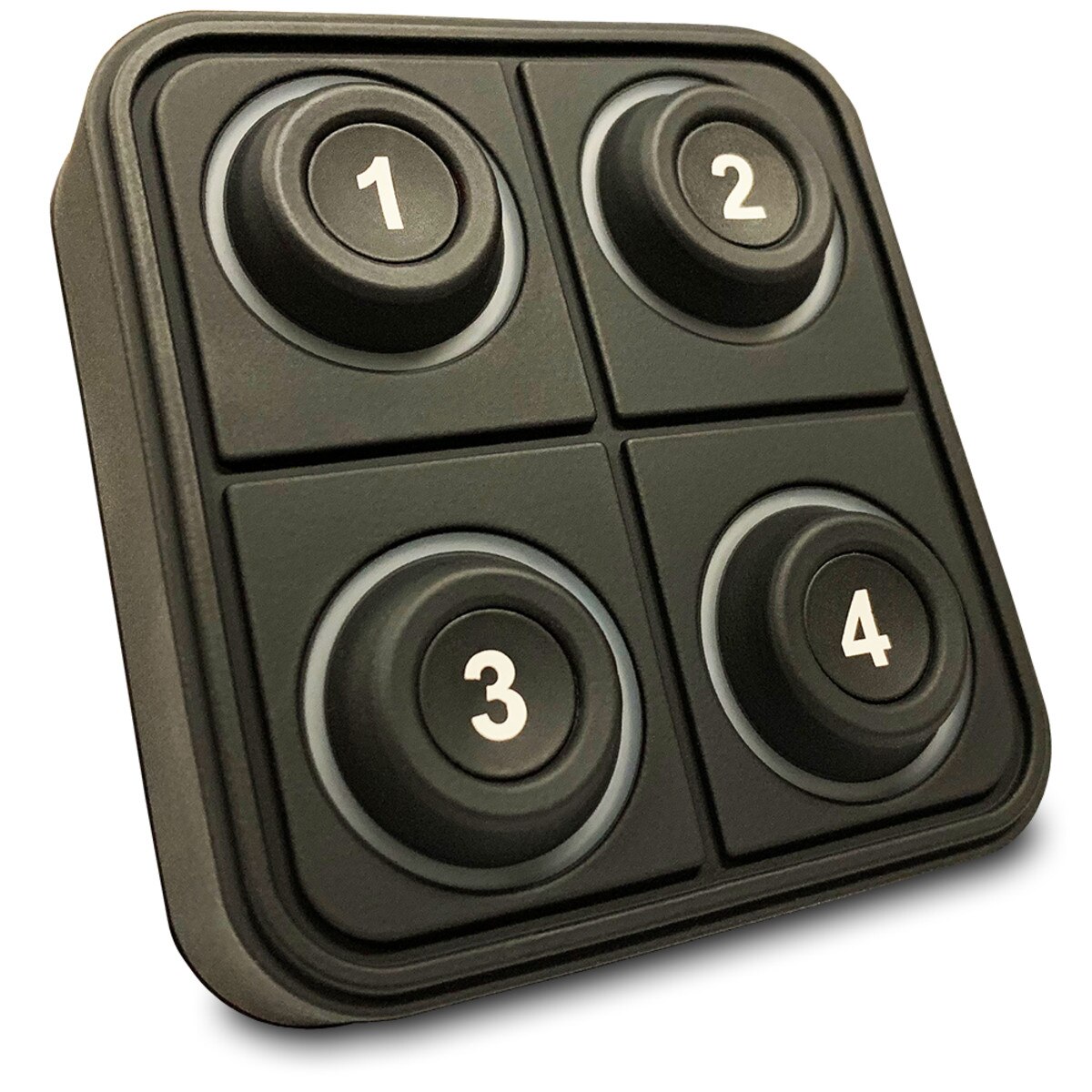

AgZone™4 Four Button Keypad (6518014)

AgZone™4 Automatic Four Zone Keypad

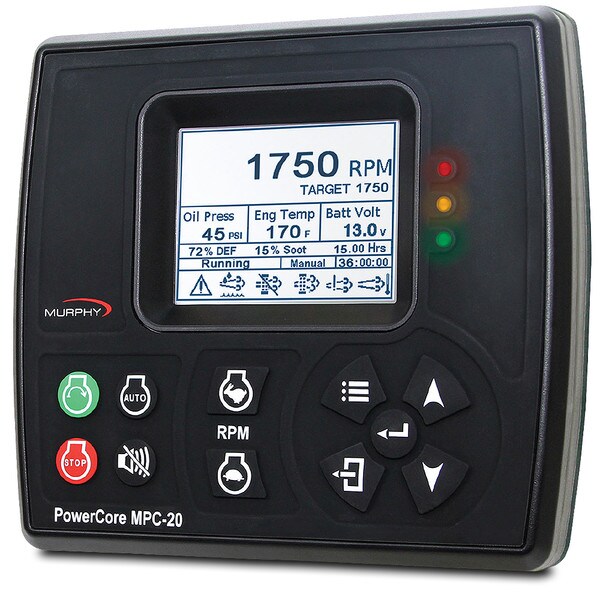

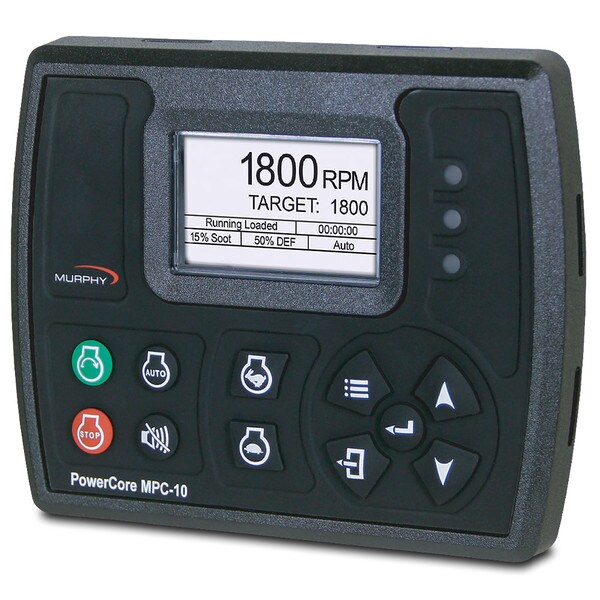

• Enhance the Capabilities of TEC-10, MPC-10, MPC-20-R2, ML1000 and ML2000-R2 Controllers
• Easily Switch Parameters for Four Different Crops
• SAE J1939 Compliant
• User Friendly Design
• Change a Group of Set-Points with the Push of a Button
• Simple, Icon-Based Interface to Simplify your Ag Irrigation Operations

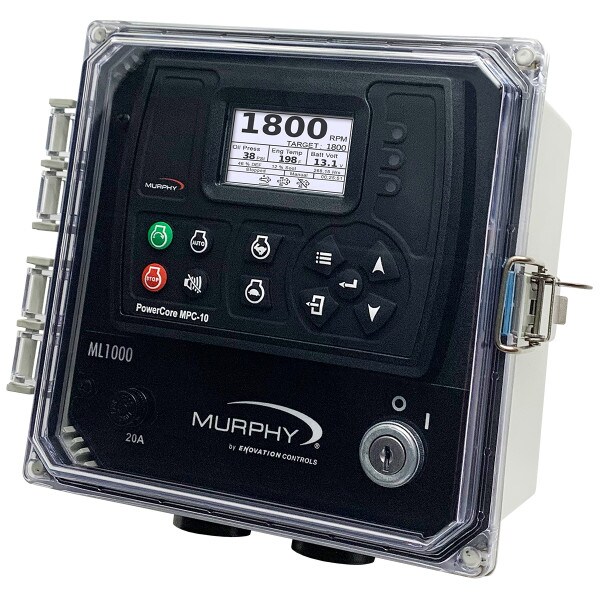

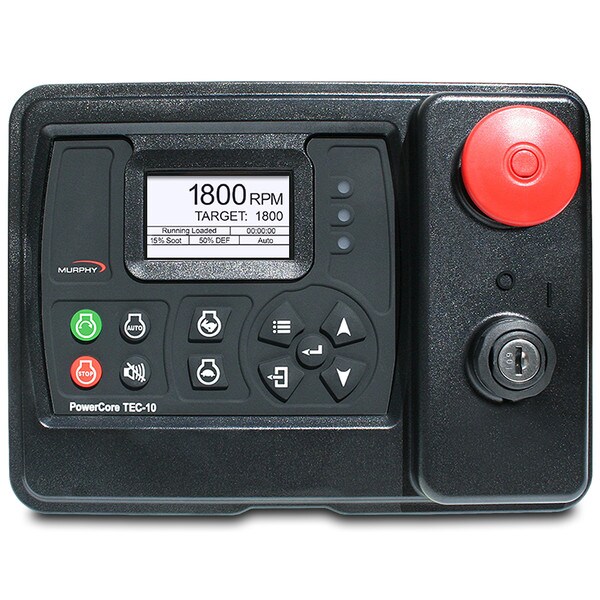

You really can’t get much simpler than this. An easy button for engine control. A few years back, MurCal pioneered the easy-to-use “123” box for EMS controller models. Now, the Ag-Zone™4 gives the same capabilities to the full line of Murphy PowerCore® engine control panels, including the TEC-10, ML1000 and ML2000-R2 models, with a simple firmware update by MurCal. Harnessing is required for use with the stand-alone MPC-10 and MPC-20-R2 engine controllers.

You simply locate this small keypad within seven (7’) feet of your PowerCore® engine control panel. Plug it in and configure your operating parameters for each different type of crop in the four zones. Select the crop to water by pushing its associated button. The controller will maintain the appropriate discharge pressure and run the preset amount of time.


Larger Images: Multiple views of the AgZone4 (pdf)


Standard Features:


• Custom configuration included which allows compatibility with the PowerCore® TEC-10, MPC-10, MPC-20-R2, ML1000 and ML2000-R2, or later
• Adapts easily to different crop types and their specific watering requirements
• Ability to customize icons: relegendable buttons / LED backlit icons / multicolor LED backlit indicator rings (minimum quantities and NRE)
• Weather sealed keypad with backlit keys IP67 NEMA 6
• Current & updated controller configuration is included
• Pre-set your Ag-Zone4 to meet weather-related or seasonal needs
• Colored ring illumination may be easily programmed


Software Features:


   •  LED acknowledgement
   •  SAE J1939 Compliant


Keypad Size:


   •  Only 4” square (3.9 in./99.0 mm)
   •  Less than 1” thick (.88 in./22.4 mm)
   •  Large, numbered buttons are 1” (25.4 mm) in diameter


Literature


AgZone™4 Automatic Four Zone Keypad Sales Bulletin
