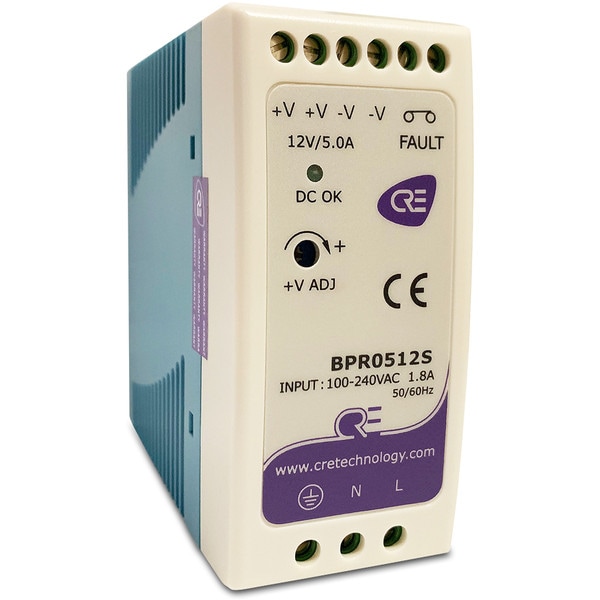

Compact Range Battery Charger; 12V; 5A (BPR0512S)
Compact Range Battery Charger; 12V; 5A (BPR0512S)
CRE’s Compact Series BPR0512S battery charger is designed to supply constant voltage to the battery with a permanent connection and a maximum of efficiency. This model is rated at 12V of DC voltage with a rated current of 5A and a current range of 0 - 5A.
Rated power is 60W with a maximum ripple & noise of 120mVp-p. Ripple and noise are measured at 20MHz of bandwidth by using a 12” twisted pair wire terminated with a 0.1 uf & 47 uf parallel capacitor. Charger dimensions are 1.57” (40mm) W x 3.54” (90mm) H x 3.94” (100mm) D.
Features:
- Protections: Short circuit/ Overload/ Over voltage
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or TS-35/15
- LED indicator for power on
- FAULT relay contact
- No load power consumption < 0.75W
- 100% full load burn-in test
- 3 years warranty
- Can be installed on DIN Rail
- Output relay
- Competitive price
Literature
- Battery Chargers Sales Bulletin
- BPR Compact Series Specifications
- BP Battery Chargers Technical Documentation
- Case Study: Off-Power Generation Engine Application
