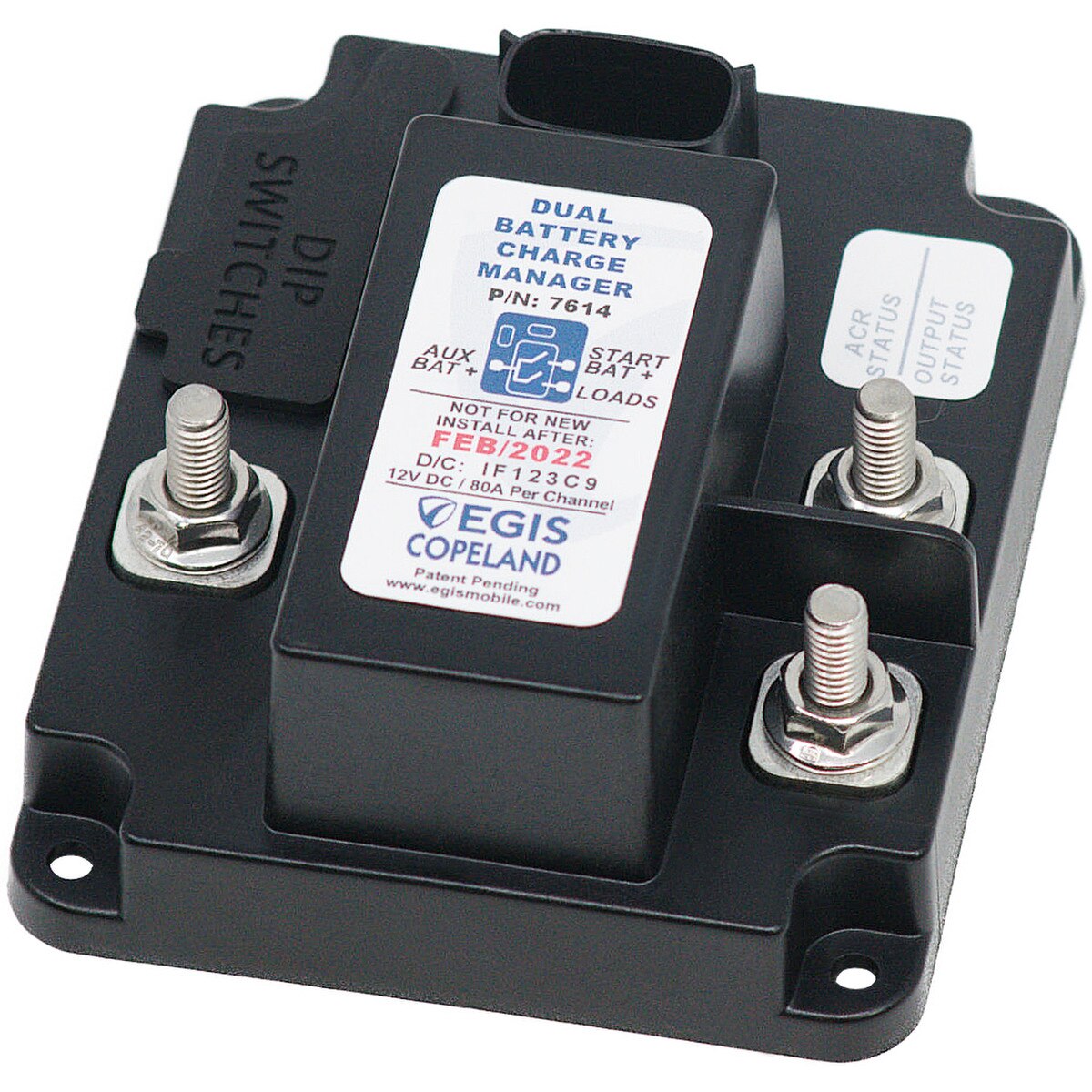

EGIS Dual Battery Charge Manager (7614B)

(0)No Reviews yet
$109.49
SKU: EGIS Dual Battery Charge Manager (7614B)

This item is IN STOCK

Current Stock: 10

EGIS Dual Battery Charge Manager (TDR+ACR), Bulk (7614B)


One Product Handles Two Functions for both auxiliary battery charge management and timed load shedding for add-on circuits.
Prevents add-on equipment from draining batteries / maximizes and extends operational readiness.
Protects sensitive on-board electronics via optional under/over voltage shutdown and start event isolation.


Features:



  • Monitors battery voltage and disconnects load from battery to prevent further discharge.
  • Lowest off-state current draw (1.3 mA) available.
  • Flexible Control Options via Ignition Key, alternator voltage sense, or both.
  • Simple & Robust Installation: Sealed plug with optional long wire leads.
  • Single device reduces installation time and costs and points of potential failure.
  • Kill Switch control input options for service technicians, emergency OFF Adjustable OFF Time Delay & Low Voltage Cut-Off: 0 Seconds to 4 hours, Switch only mode, LVD only mode, 11.0, 11.5, 12.0 Vdc cutoff levels.
  • Remote and on-board diagnosis indicators and simplify trouble shooting.
  • Bullet-proof Construction: Sealed unit, high temperature materials allow mounting anywhere.
  • Internal temperature overload protection
  • Start Isolation input protects sensitive add-on equipment from engine starting event.
  • Meets Stringent OEM Standards for electrical transient self-protection.
  • 4 Year Industry Leading Warranty


Literature


Sales Bulletin



MurCal is an Authorized Distributor of EGIS Mobile Electric products.
MurCal provides experienced application and product support, before and after the sale.
