ES2P-100 2-Wire Ungrounded Pressure Sender (05701858)

ES2P-100: 2-wire ungrounded pressure sender for use with electric pressure gages; 100 psi maximum (05701858)

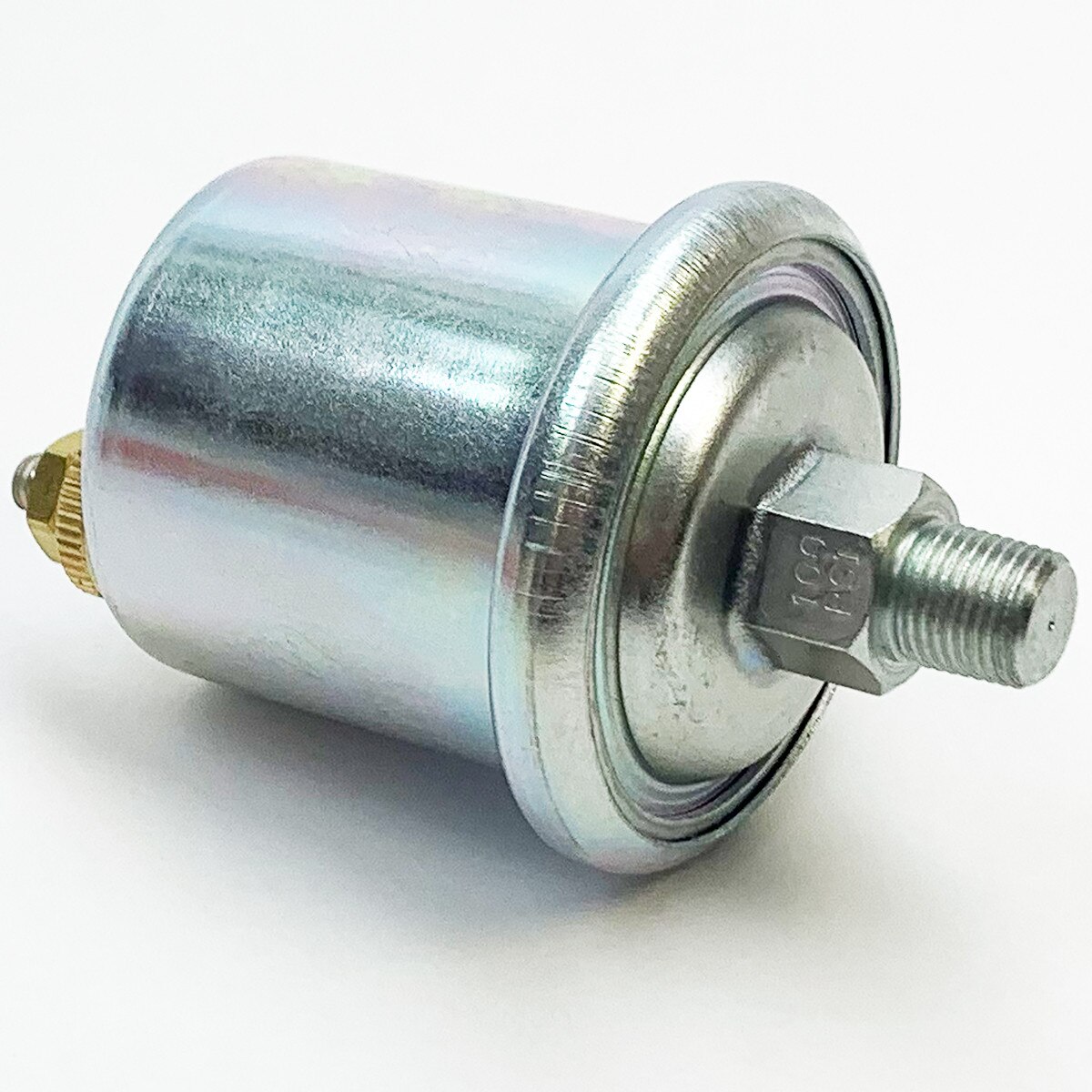

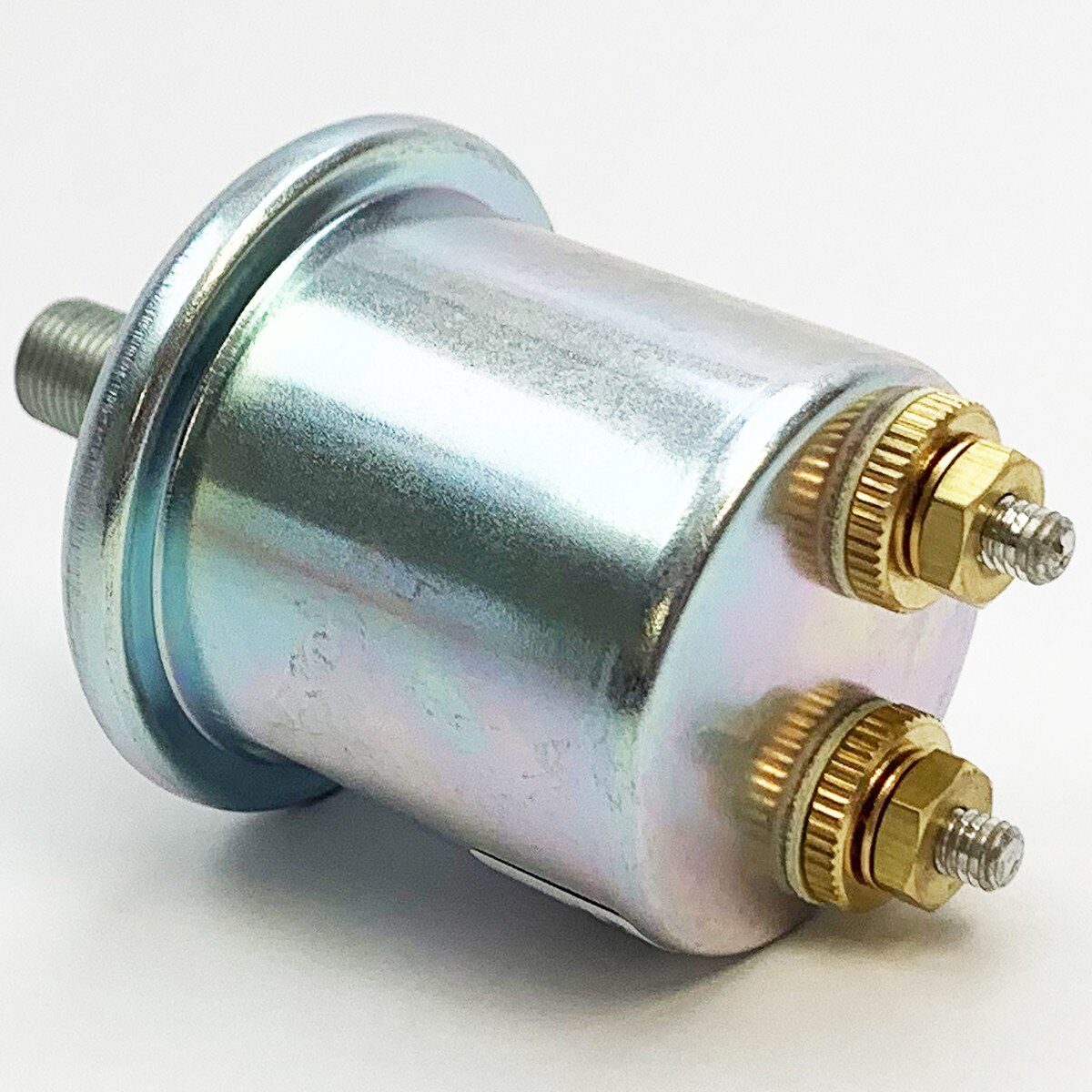

The ES2P-100 is a 2-wire ungrounded pressure sender for use with electric pressure gages. This pressure sender is rated at 100 psi (689 kPa) [6.89 bar] maximum. The manufacturer recommends mounting off-equipment.
The ES2P-100 is designed to be used in conjunction with our EG Series Swichgage® Instruments as well as CAN I/O modules.

NOTE: Always provide proper circuit protection with fuses or circuit breakers.



Literature:


1. Sales Bulletin
2. Electric Gage Series Brochure
3. Installation Instructions (1999)
4. Installation Instructions (2008)

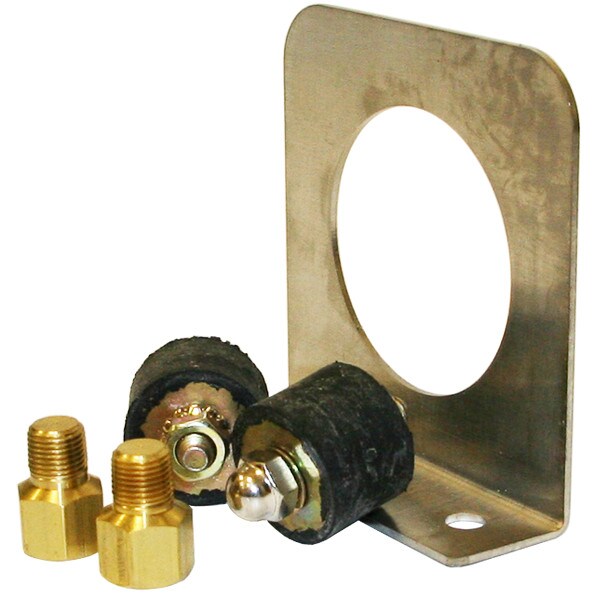

5. Installation Instructions for Off-Equipment Mounting Kit #30000213 of Gear Oil Pressure Sender
6. Resistive Table for Electric Gage Pressure Senders
