ESDP-100 Dual Pressure Sender (05701859)

ESDP-100 Dual Pressure Sender (05701859)

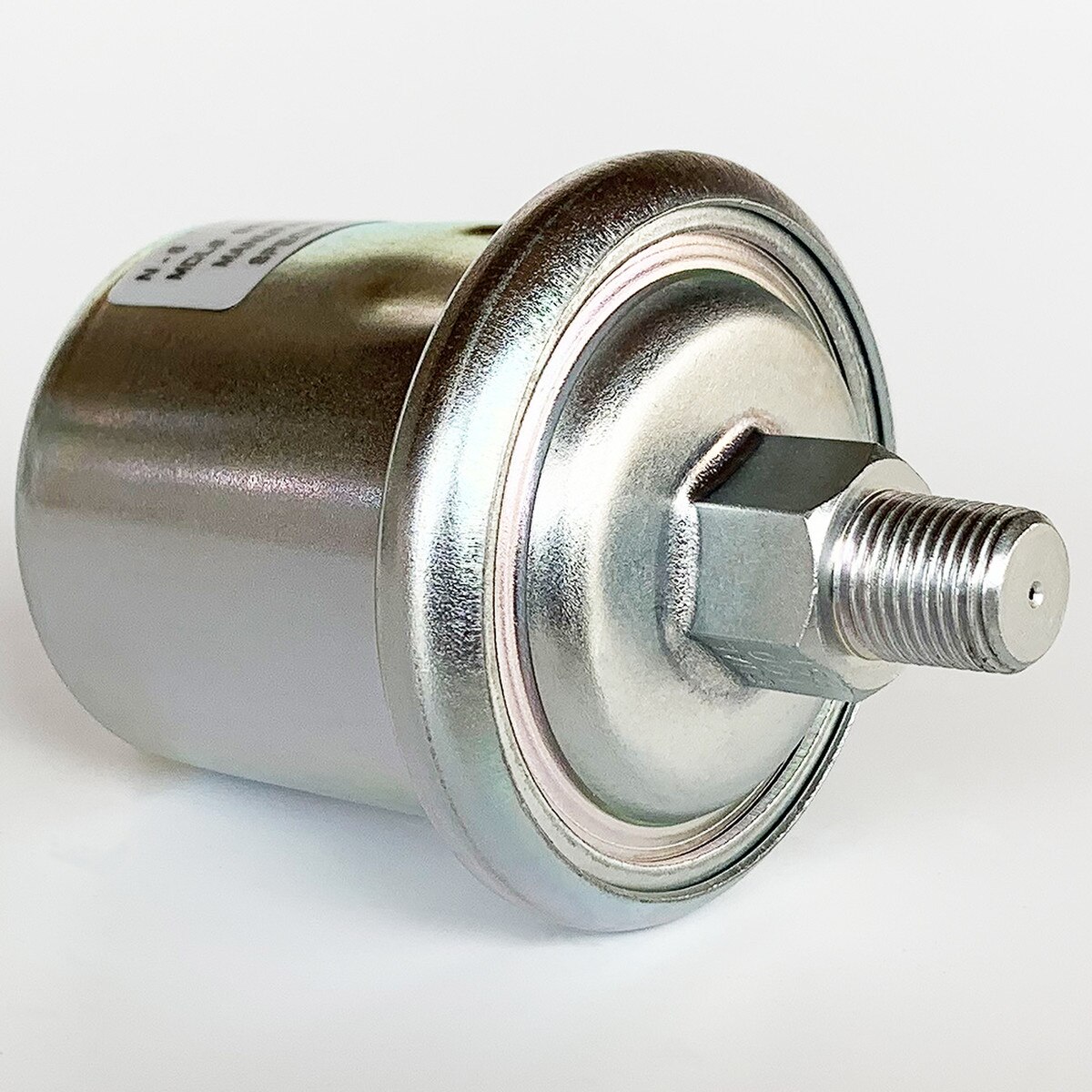

The ESDP-100 Dual Pressure Sender is a dual output sending unit designed to drive two (2) Murphy EG series electric gauges. Rated at 100 psi maximum. It provides two signals that range from 240 ohms at 0 psi and 33 ohms at 100 psi. The manufacturer recommends mounting off-equipment.
The ESDP-100 is designed to be used in conjunction with our EG Series Swichgage® Instruments as well as CAN I/O modules.

NOTE: Always provide proper circuit protection with fuses or circuit breakers.

Literature:

1. Sales Bulletin
2. Electric Gage Series Brochure
3. Installation Instructions (1999)
4. Installation Instructions (2008)
5. Installation Instructions for Off-Equipment Mounting Kit #30000213 of Gear Oil Pressure Sender
6. Resistive Table for Electric Gage Pressure Senders
