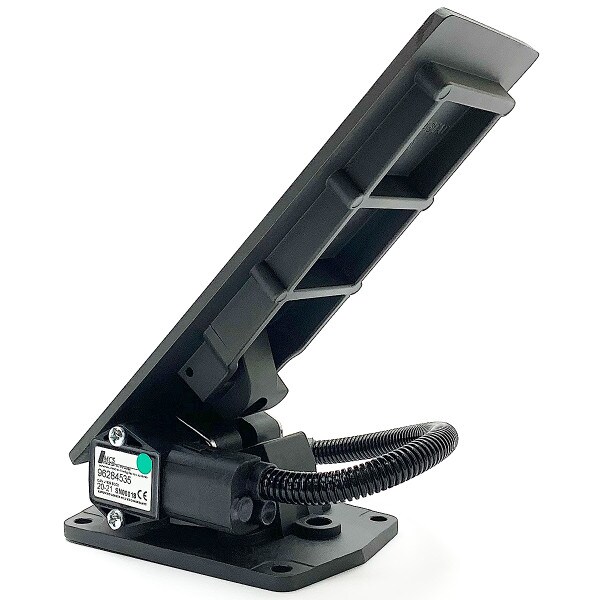

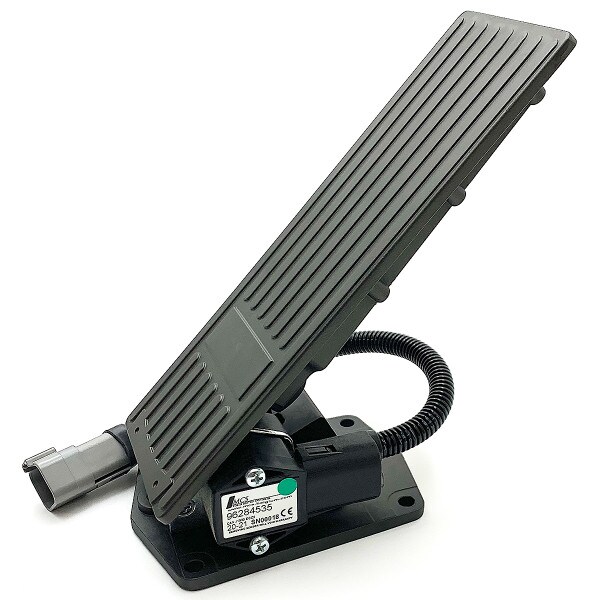

Electronic Floor Mounted Throttle Pedal 45° (962 845 35)
Electronic Floor Mounted Throttle Pedal 45° (962 845 35)
All electronic throttle controls are fitted with programmable hall effect sensors. The signals generated by the electronic throttle controls will allow a smooth and precise engine speed control.
The output values are programmable and hence can be adapted to the customer’s specifications. Electronic throttle controls can be connected directly to the engine management system, or engine electronic control module.
Specifications:
• Two “built-in” return springs
• Additional return spring built in the sensor

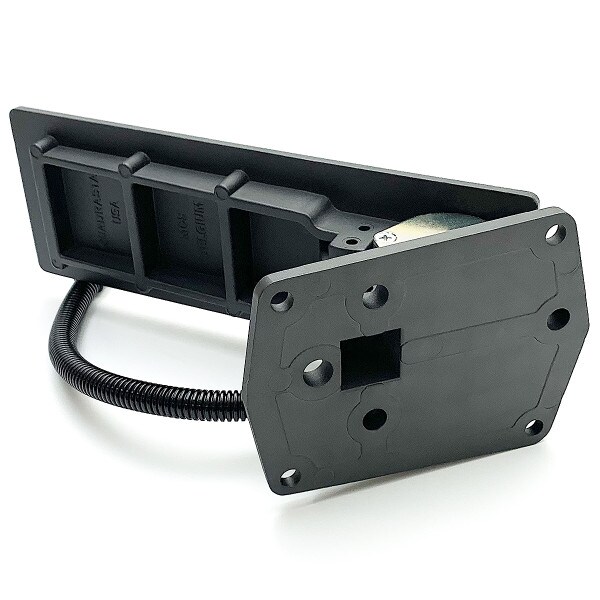

• Die cast aluminum treadle and mounting plate
• Complies with FMVSS 124
• Protection classification: IP66 (IP67 if LHE sensor)
• Travel angle: 22°
• Pedal Angle: 45°

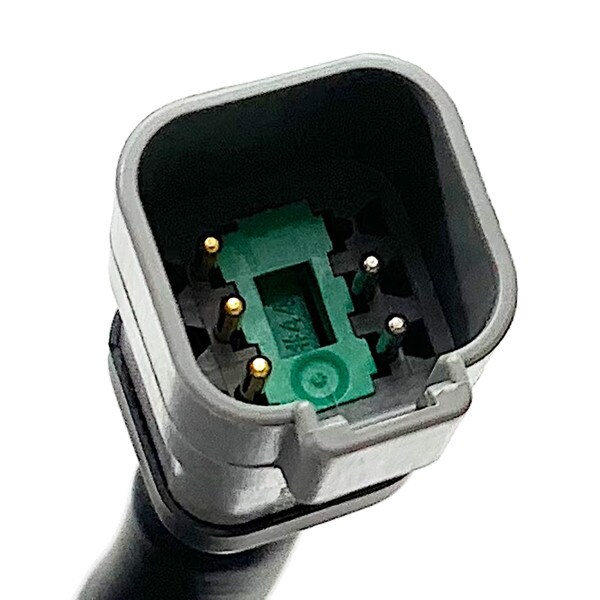

• Connector: AMP, 6 pin, waterproof (IP69)
• Supply voltage: 12.0V / 24.0V
Literature:
- Specifications Manual, 962 Series
- 962 X45 XX Drawing
- 962 845 35 Drawing with Connectors / J1939 Settings
- Pedal Tool Data Sheet
- 3D Model in .step format
