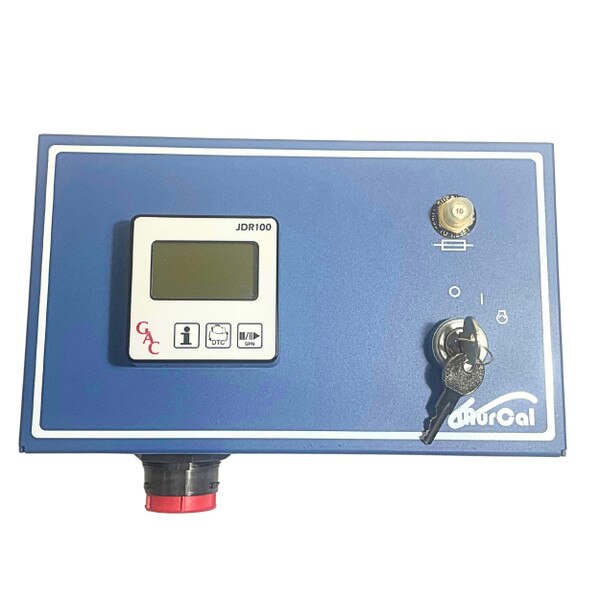

JDR100 SAE J1939 Diagnostic Trouble Code (DTC) Reader
JDR100 SAE J1939 Diagnostic Trouble Code (DTC) Live Engine Parameter Reader
GAC’s JDR series of J1939 data readers, are low-cost universal devices that allow users to read Diagnostic Trouble Codes (DTC’s). More advanced models allow users to monitor standard J1939 engine parameters, and or monitor and control Tier-IV diesel particulate regeneration function. The JDR devices are designed for Electronic Engines (ECMs) and devices equipped with J1939 compatible Electronic Control Units (ECU).

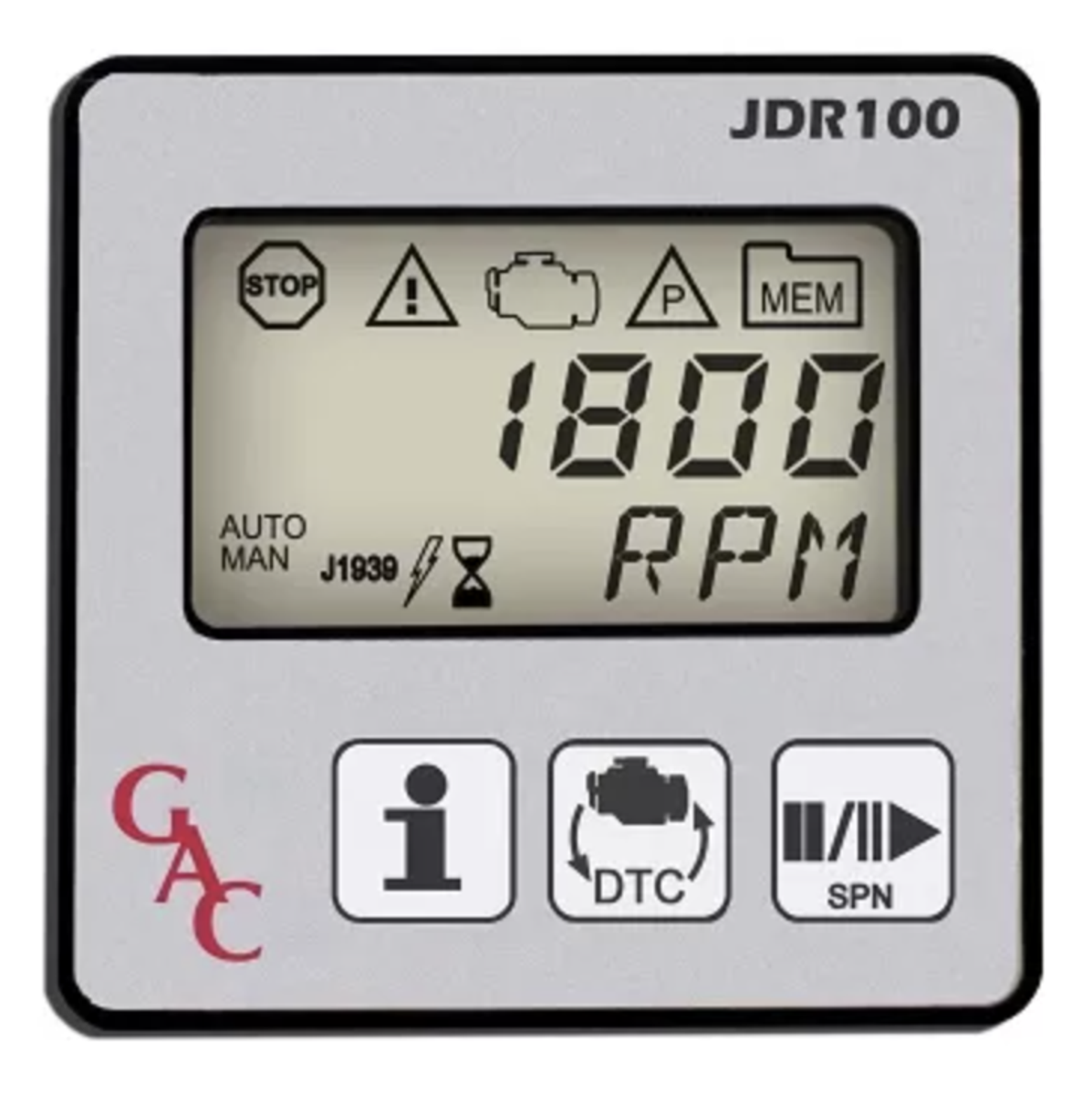

JDR100 builds on the JDR050, displaying 6 live engine parameters by default: RPM, Oil Pressure, Coolant Temperature, Fuel Level, Battery Voltage, Engine Run Hours, as well as J1939 stop, warning, malfunction, and protection status messages.
Click Here to see a comparison chart between the JDR100, S35 & PV101
Literature:
