LS200NDVO Pneumatic Level Switch (15700756)

(0) No Reviews yet
$366.49
SKU: LS200NDVO (15700756)

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

Details

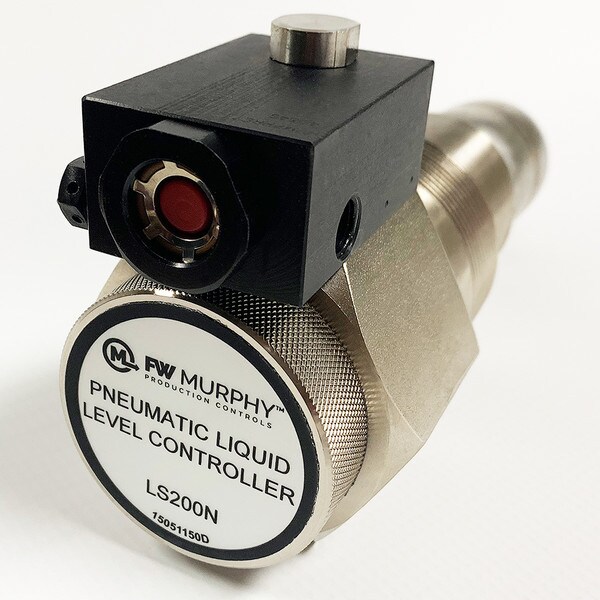

The LS200NDVO is a pneumatic level switch with snap action Dump Valve Operator (DVO) without the pressure regulator for those applications where the system provides a filter regulator for "instrument quality" air or gas as the control medium.

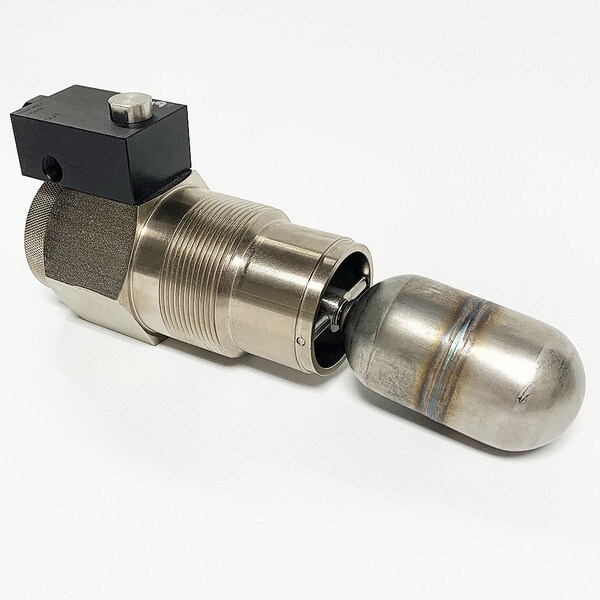

The LS200NDVO is designed for harsh gas compressor scrubber applications. The improved design provides better snap action and dependability with a reduced number of moving parts. A nickel plated body provides enhanced corrosion protection, and the 304 stainless steel float operates in 0.5 specific gravity and heavier fluids.

The LS200NDVO is rated for 2000 psi (13.8 MPa) [138 bar] working pressure and listed for Class I, Division I, Group C & D locations. The DVO valve is 3-way, normally closed with manual operator; all connections 1/8" NPT.


Sales Bulletin

Installation & Operations Manual

Scrubber Level Control System Bulletin






For California customers: Prop 65 WARNING: This product may have been manufactured with or uses components that can expose you to chemicals which are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.
