MC485 Power Unit Panel 24 VDC (4021052-24)

MC485 Power Unit Panel 24 VDC (4021052-24)

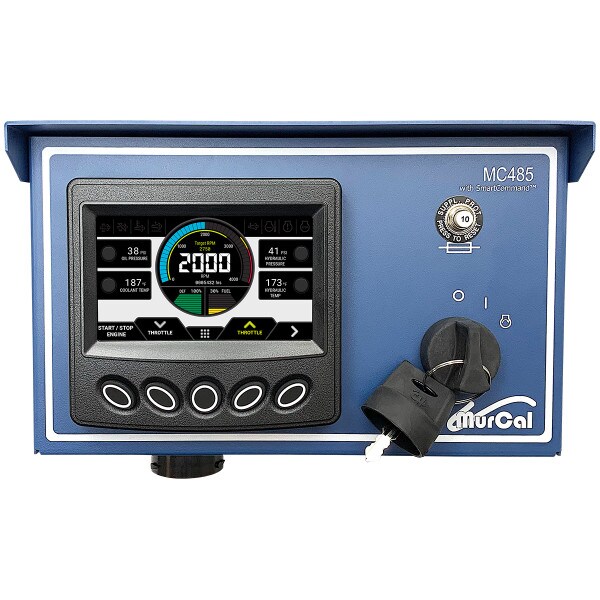

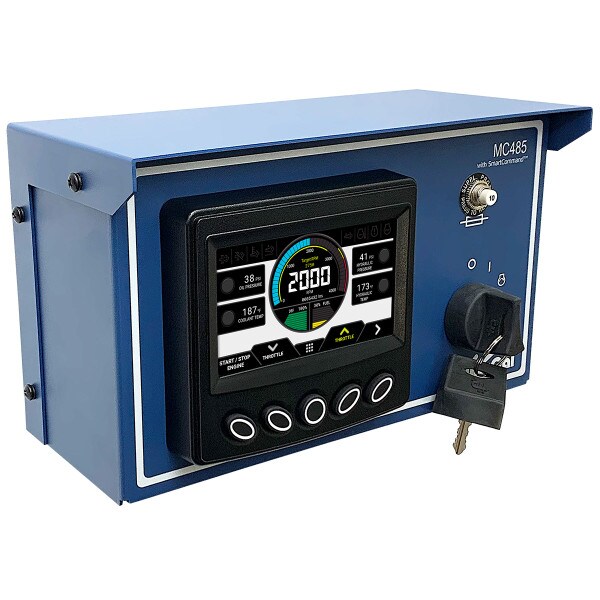

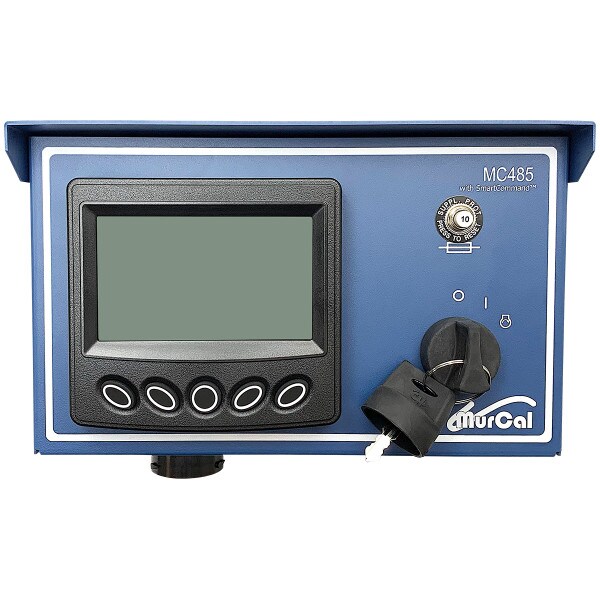

MurCal’s MC485 Power Unit Panel is a 24 Volt engine panel that combines several features that enhance the Powerview® PV485 display in terms of functionality and environmental protection.

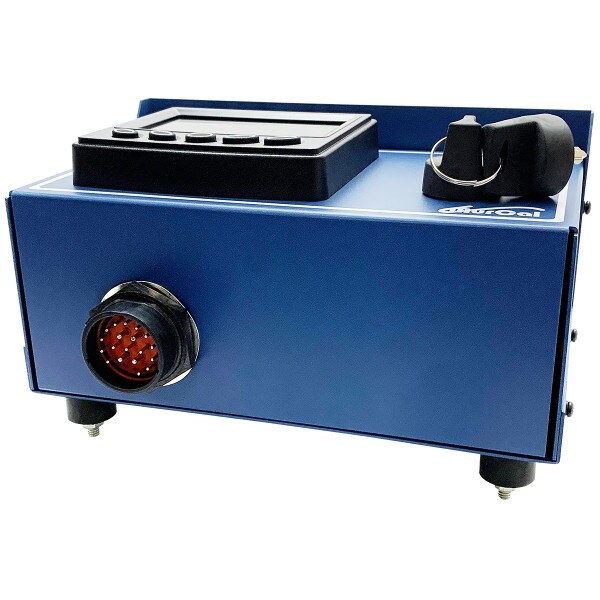

The MC485 Power Unit Panel is a two-piece, powder-coated metal enclosure that measures 10” W x 6”H x 4” D, and features:

    •  Powerview® PV485 customizable, all-in-one color display and controller

    •  4 (Four) Position Keyswitch: ACC, OFF, ACC/IGN, START; with spring return, key boot, and anti-restart.

    •  10A Panel Mount Breaker

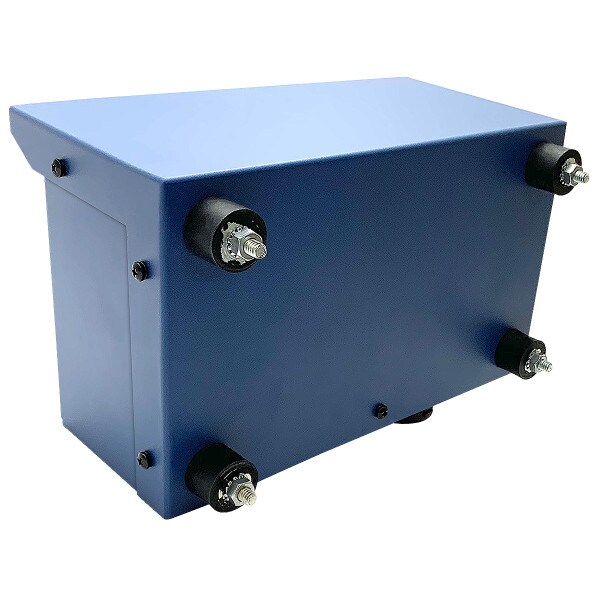

    •  4 (Four) Shockmount Assemblies, CM x 1/2"

The PowerView® PV485 Display:

The PowerView® 485 is a customizable, all-in-one color display and controller designed to meet the needs of modern electronic engines and equipment applications. Its rugged design offers a wide array of configurable I/O, including an RS485 serial connection, and support for both mechanical and J1939 electronic engines. The PV485 also supports Tier 4 and stage IV engines, helping to make your transition to Tier 4 easier.

The display’s bonded LCD can easily be viewed in full sunlight, and its rugged tactile soft keys and durable design make it a perfect solution for all types of environments and applications.

Literature:


1. Sales Bulletin
2. Data Sheet
3. RoHS Directive
4. MC485 Power Unit Panel Wiring Diagram (40-21-052-A)
5. MC380-MC485-MC500 w/Smart Command Sales Bulletin
