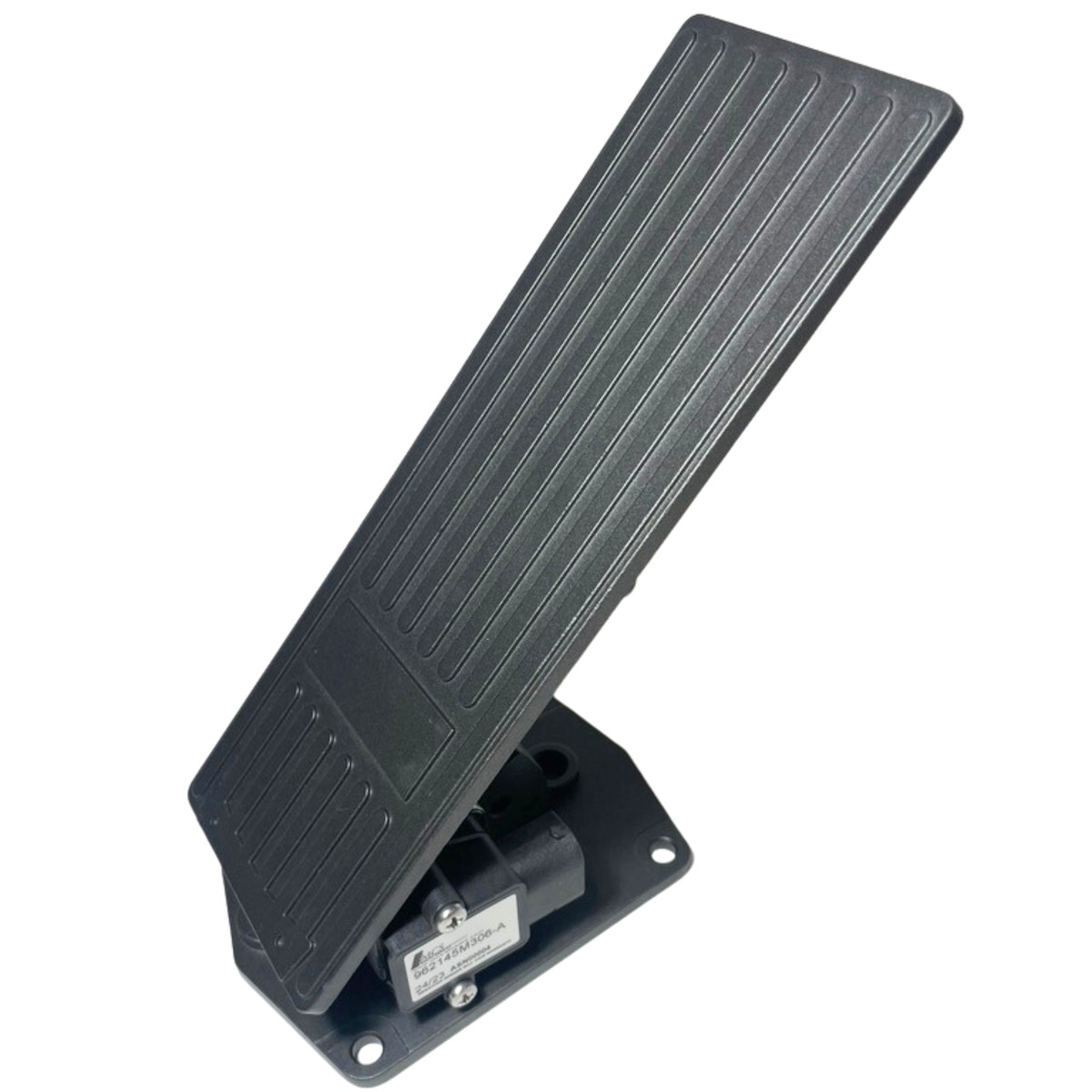

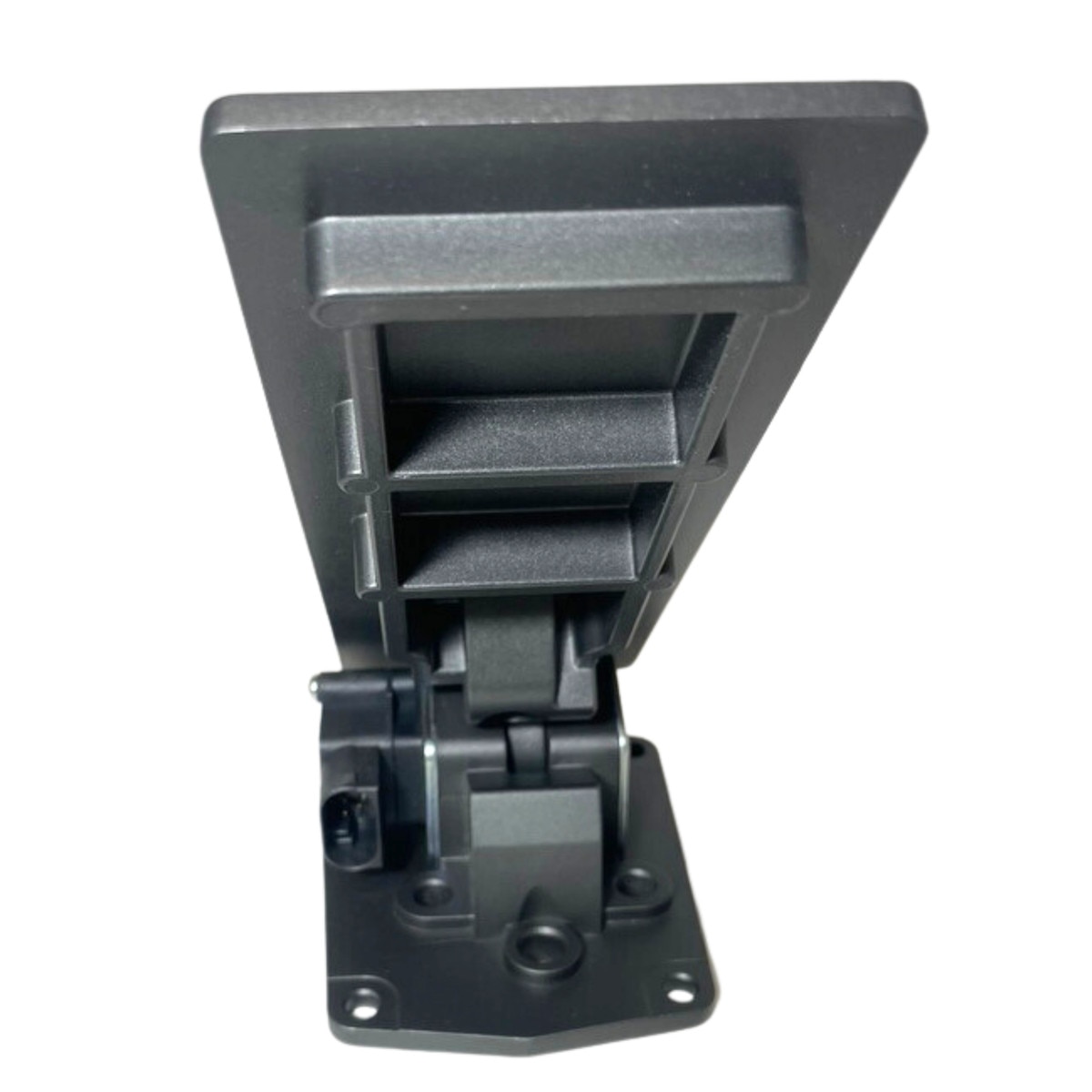

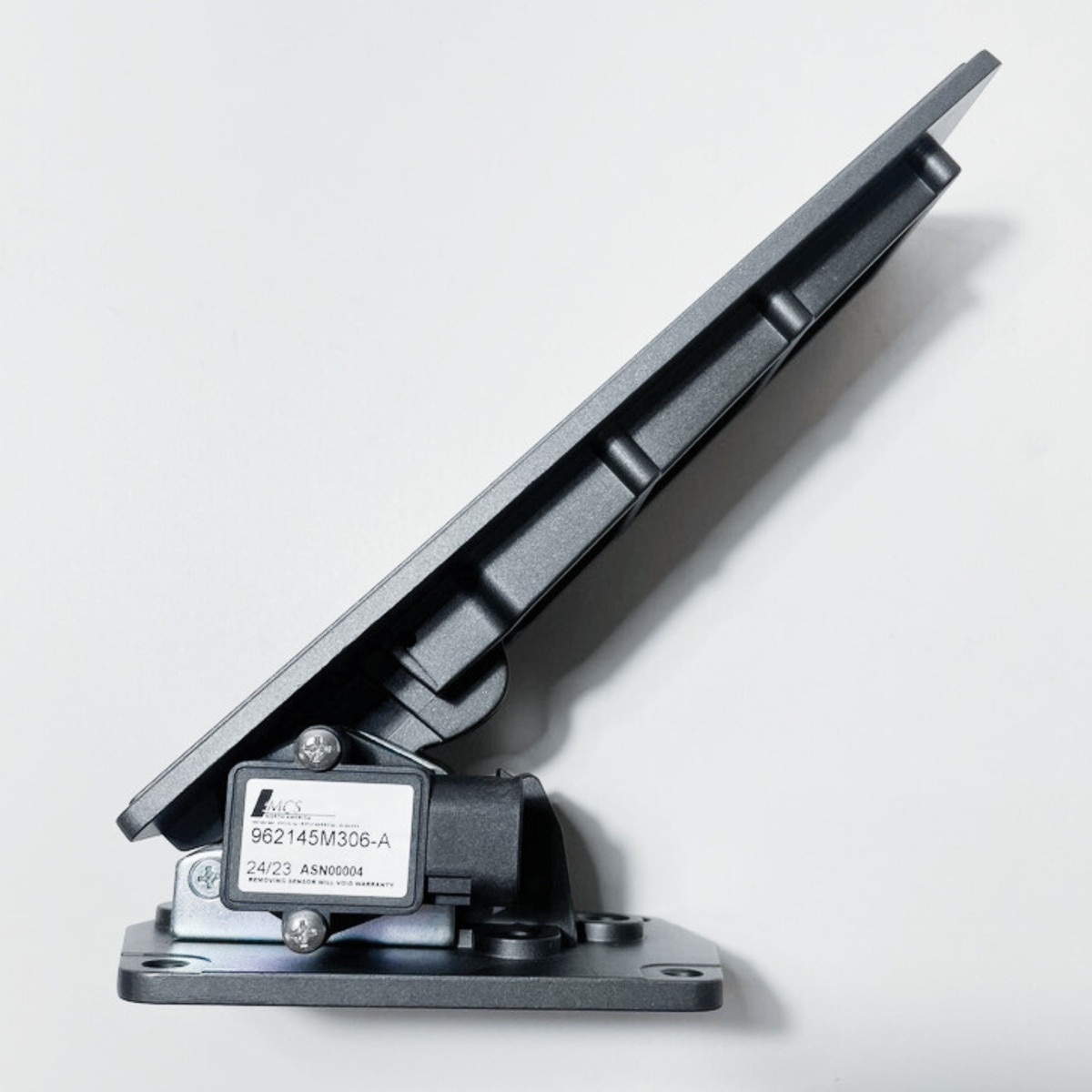

MCS Throttle pedal 45° Single 0-5 VDC + IVS (962145M306)

MCS Throttle pedal 45° Single 0-5 VDC + IVS (962145M306). Foot pedal with 0-5 VDC output and Idle Validation Switch.

All electronic throttle controls are fitted with programmable hall effect sensors. The signals generated by the electronic throttle controls will allow a smooth and precise engine speed control. This model is a programmable single analog sensor with programmable electronic Idle Validation Switch (IVS).

The output values are programmable and hence can be adapted to the customer’s specifications. Electronic throttle controls can be connected directly to the engine management system, or engine electronic control module.

Characteristics

– Rest positions: 30°, 35° or 45°

– Travel angle: 22°

– Two “built-in” return springs

– Die cast aluminum treadle support and mounting plate

– Water and dust ingress up to IP69K

– Storage temperature: -40°C to +125°C

– Operating temperature: -40°C to +125°C

– Connector: AMP – 6 pins

Literature:


Specifications Manual, 962 Series
