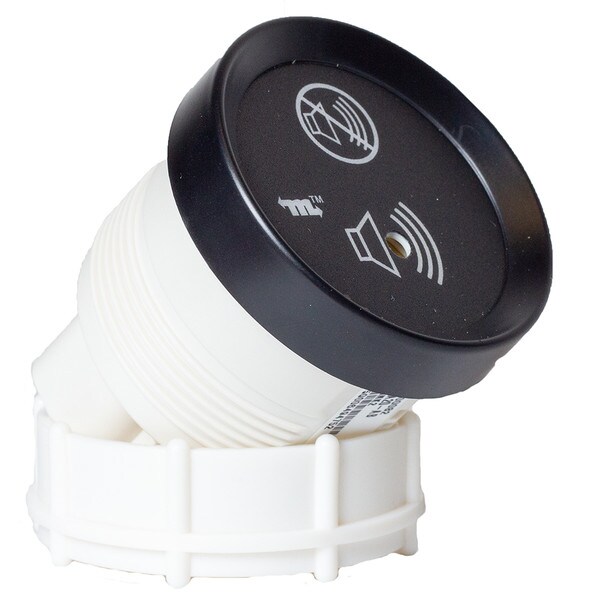

PVAA20-AB PowerView® Audible Alarm w/ Acknowledgement (78700082)
PVAA20-AB: 2" Powerview Audible Alarm; A20 Black Bezel (78700082)
The PVAA20-AB is a 2" Powerview Audible Alarm with an acknowledgement button and an A20 Black Bezel. Works with PowerView displays.
The PowerView Analog Gages (PVA) are a series of intelligent gages designed to display easy-to-read information transmitted by the PowerView.
The PVA gages communicate with the PowerView via a single RS485 twisted pair MODBUS®† RTU serial link. The gages can be daisy-chained using quick-connect harnesses with watertight connectors.
The major feature of the PVA gages is their balance between design and functionality.

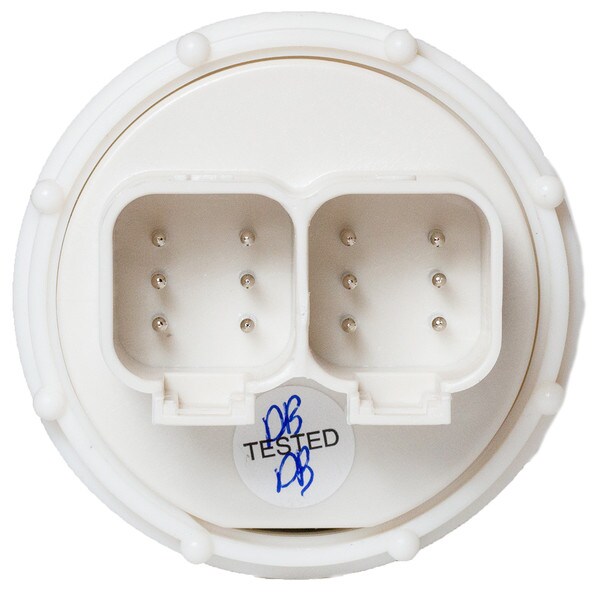

The PVA gages also include features such as a smooth stepper motor operation for the 270° sweep pointer, an environmentally sealed case with two Deutsch DT style connectors molded into the casing, and green LED back lighting.

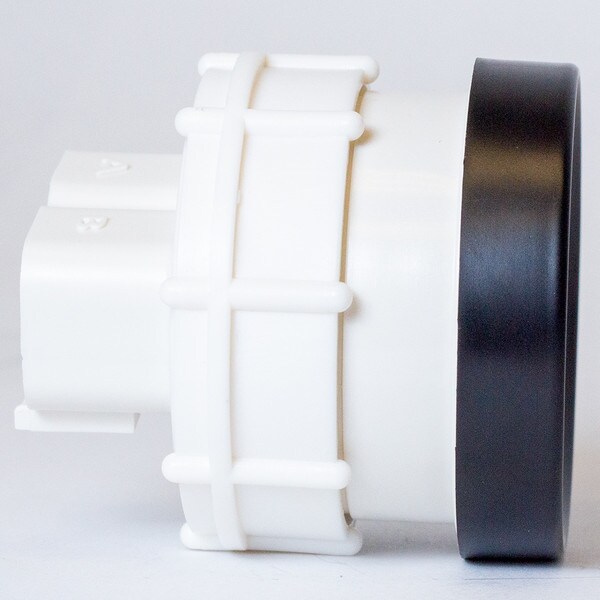

In addition their plastic cases incorporate a “D” shape allowing panel cutouts that eliminate gage rotation during installation. The PowerView Audible Alarm (PVAA) alerts operators to fault conditions via piezoelectric alarm and relay contacts. It also has a temporary silencer button that silences the audible tone for 2 minutes on warnings and 30 seconds on shutdown conditions.
