TEC-10: PowerCore® Panel (40700495)
TEC-10: PowerCore® Panel (40700495)

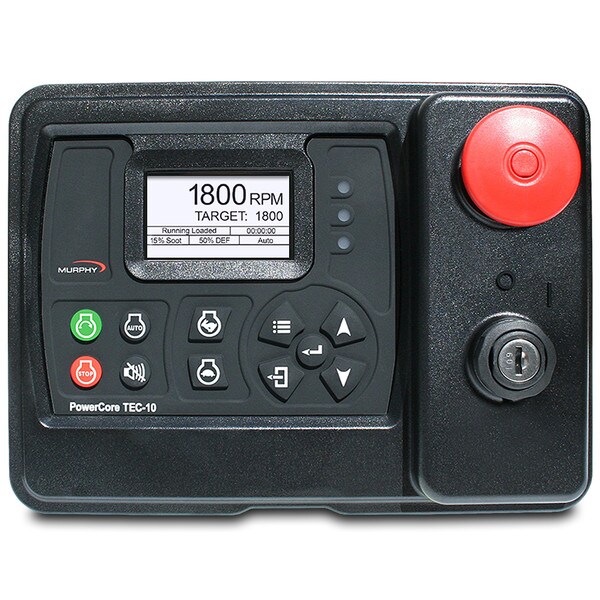

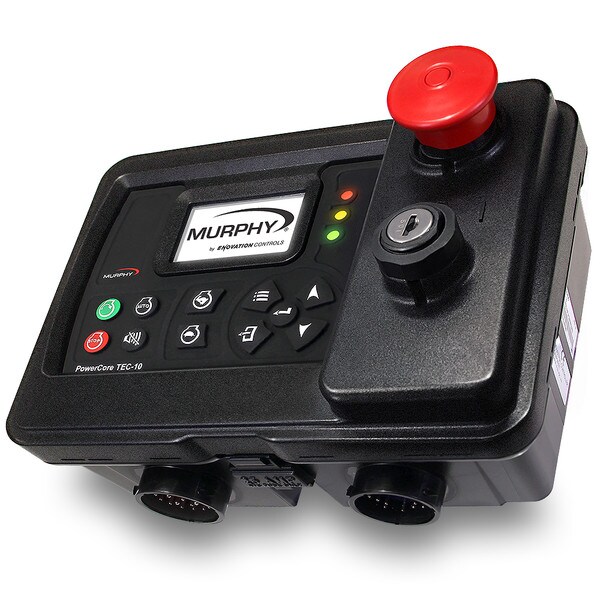

Murphy's PowerCore® TEC-10 panel provides full control of your engine including auto start/stop, auto throttling and display of both engine parameters and critical faults from the engine/application. The TEC-10 supports SAE J1939 CAN protocols for electronically governed engines as well as analog sensors on mechanical engines for fault and safety warnings/shutdowns.
The TEC-10 follows a standard operating sequence of 22 machine states that happen in a predetermined order. The machine states may be set to zero, if not needed, or adjusted to fit the application. The incredibly versatile menu structure allows parameters and settings to be changed from the face without the need of a PC tool, if desired. This flexibility allows for the same control panel to be used across a wide range of applications while providing operator consistency and familiarity.
Designed as a plug-and-play solution, the TEC-10 may utilize a free PC configuration tool that allows customers to change default settings as well as providing three levels of passcode protection. The rugged TEC-10 panel may be mounted directly to the engine or engine/application cover. Built to endure industrial environments from full sun to wide temperature ranges, the panel features a high degree of sealing for dust and water as well as the ability to withstand high vibration.
The control panel features molded, industry-standard connectors mating with Deutsch HDP series connectors and is compatible for use on the simplest mechanical engine to the most advanced, fully electronic Tier 4 engines.

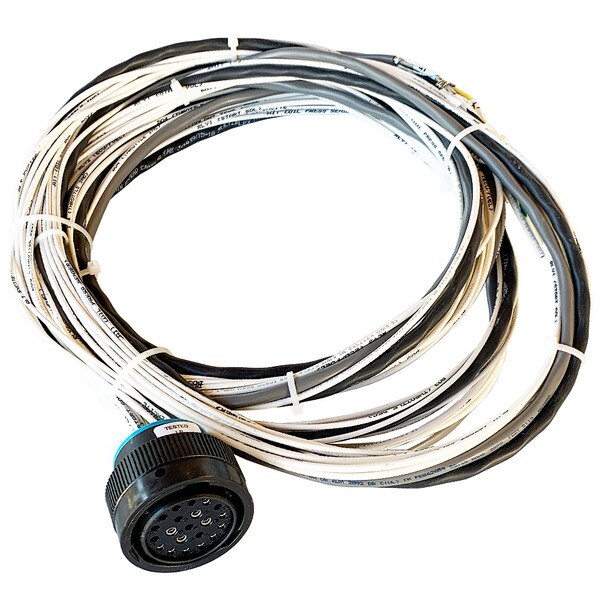

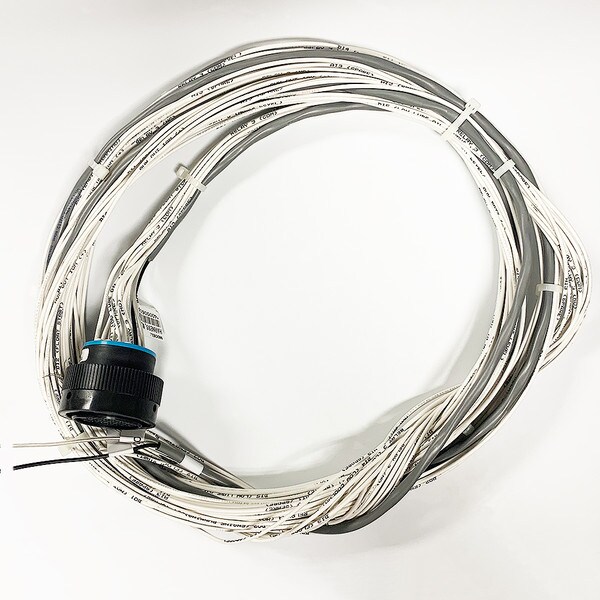

Murphy's Industrial Harness or John Deere's OEM engine harnessing is required.
- Turnkey Electronic Controller
- Supports SAE J1939 CAN protocols
- Change settings from the face of the panel
- Rugged panel withstands dust, water and vibration
- Can be utilized across many applications providing familiarity for users
Q: Is it Plug & Play?
A: Yes, it is, but it needs to be configured to your engine’s specific application.
Q: Which Model is Best for my Application?
A: There are 3 main models:
1. MPC-10 - MPC-10: PowerCore™ Controller (murcal.com)
Does not use 21 & 31 pins connectors. Uses Deutsch DT06-12 Series connectors.
2. TEC-10 - PowerCore® TEC-10 Panel (murcal.com)
Uses the 21 & 31 pin connectors, plus it is weather sealed.
3. ML-1000 - ML1000-4X: MurphyLink® Series Panel (murcal.com)
Uses the 21 & 31 pin connectors plus it is “super” weather sealed using the NEMA 4X Enclosure.
If you are getting a low discharge pressure shutdown at the end of the cooldown timer, the fix is to go to Advanced Engine Settings > Bubble Lockout Time. Set this to 2 seconds. Next, go to Bubble Lockout 1 and set this to "Low Discharge Pressure."
Older versions of the TEC-10 didn't have this defaulted. Newer versions should have this defaulted.
- Sales Bulletin: PowerCore® TEC-10
- Sales Insert: PowerCore® TEC-10
- Installation Manual: PowerCore® TEC-10
- Operations Manual
- Pin Specifications
- Enlarged Photo #1
- Enlarged Photo #2
Enovation Video Support Page
Clicking on this link will take you away from the MurCal website and present a page in the Murphy by Enovation Controls website that introduces the “PowerCore Series Video Guides”, presented by Richard Lund, Enovation Controls Application Engineer. Richard walks you through the configuration process using the controller’s menu. The page also provides additional resources to assist setup.
The Video Support Series includes:
“Getting to Know PowerCore” - a ten (10) video series.
“MPC-20-R1” - a five (5) video series
