MPC-10: PowerCore® Controller (40700494)

(0)No Reviews yet
SKU: MPC-10: PowerCore® Controller (40700494)

This item is IN STOCK

Current Stock: 30

MPC-10: PowerCore® Controller (40700494)

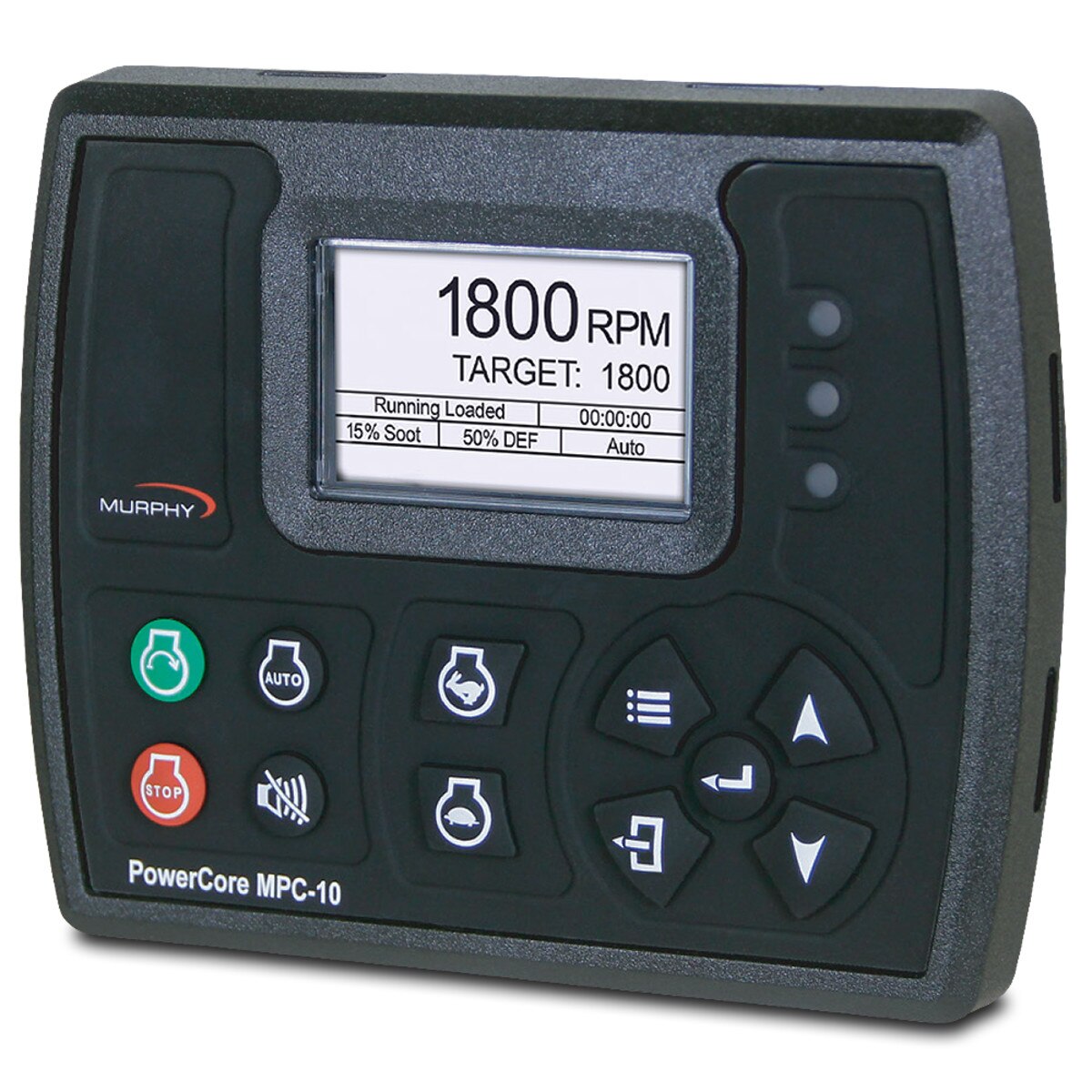

Murphy's PowerCore® MPC-10 Controller is a general, all-purpose manual/auto start and manual/auto throttling engine controller designed with rental applications in mind. The controller is purposed primarily for applications where a wide array of inputs and outputs are not required. This is a powerful and rugged controller that supports J1939 CAN protocols for electronically governed engines as well as analog sensors on mechanical engines for fault and safety shutdowns.

While reprogrammable, the MPC-10 follows a standard operating sequence. This operating sequence is a set of 22 machine states that happen in a predetermined order. Machine states can be set to zero if not needed or adjusted to fit the application. The MPC-10 boasts three levels of menu security which can easily be set with the configuration tool. The menu structure is incredibly versatile, with the ability to change many parameters and settings from the face without the need of a PC tool, if desired.

The MPC-10 is flexible in many aspects, with the ability to:
* Use the same controller on 12VDC or 24VDC systems
* Assign multiple levels of passcode protection to the menu using the free of charge PC Configuration Tool
* Change the input sensor type for the analog inputs
* Use analog inputs as digital ground inputs
* Be mounted in all-weather environments
* Be customer mounted in panel of choice


* Operates with 12VDC or 24VDC systems
* Large, Easy-To-Read 2.7-inch WQVGA Monochrome HR-TFT Display(400x240)
* Three Configurable Levels of Passcode Protection
* Flexible Input Sensor Types For the Analog Inputs
* Analog Inputs Can Be Used as Digital Ground Inputs
* Designed For All Weather Environments
* CAN J1939 Communications
* Tier 4/Stage IIIB/IV Ready

Read the Article  where we highlight and explain how the MPC-10 was specifically developed to put power, flexibility and control at your fingertips.



Q: Is it Plug & Play?

A: Yes it is, but it needs to be configured to your engine’s specific application.

Q: Which Model is Best for my Application?

A: There are 3 main models:

     1. MPC-10 - MPC-10: PowerCore™ Controller (murcal.com)
Does not use 21 & 31 pins connectors. Uses Deutsch DT06-12 Series connectors.

     2. TEC-10 - PowerCore® TEC-10 Panel (murcal.com)
Uses the 21 & 31 pin connectors, plus it is weather sealed.

     3. ML-1000 - ML1000-4X: MurphyLink® Series Panel (murcal.com)

Uses the 21 & 31 pin connectors plus it is “super” weather sealed using the NEMA 4X Enclosure.



  1. Sales Bulletin
  2. Sales Flier
  3. Installation Instructions
  4. Operations Manual
  5. Wiring Instructions
  6. Magnetic Pickup Installation Instructions

Enovation Video Support Page

Clicking on this link will take you away from the MurCal website and present a page in the Murphy by Enovation Controls website that introduces the “PowerCore Series Video Guides”, presented by Richard Lund, Enovation Controls Application Engineer. Richard walks you through the configuration process using the controller’s menu. The page also provides additional resources to assist setup.

The Video Support Series includes:

“Getting to Know PowerCore” - a ten (10) video series

“MPC-20-R1” - a five (5) video series

MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
