SD85: Solenoid Drive Time Delay (40700067)

(0)No Reviews yet
SKU: SD85 (40700067) *DISCONTINUED*

Contact Our Sales Team 661-272-4700 or


SD85: Solenoid Drive Time Delay (40700067) *DISCONTINUED*

This product has been discontinued. If you are in need of something similar, please read our article about its replacement here…

The SD85 is a Solenoid Power Drive and is used when the solenoid is duty cycled for short time periods, such as 2-position throttle operation. It also provides enhanced operational control for normal on-off applications.
The SD85 activates both coils of the solenoid for a short time then de-energizes the Energize-coil. The Hold-in coil remains energized as long as the signal to the SD85 is active. This increases the life of the RP solenoid.

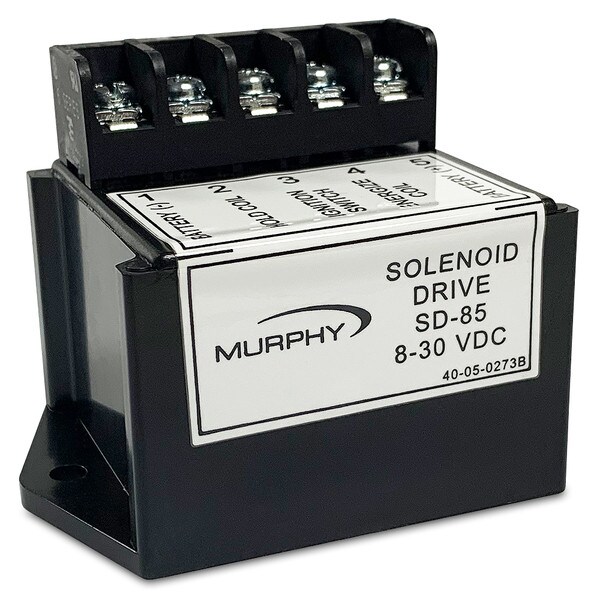

The SD85 measures 2-1/4" wide by 2-3/16" high, with a 5-screw terminal block on top.

Other specifications follow:
Input Voltage: 8 to 30 VDC
Current Ratings: 40 mA standby (quiescent) 8 to 30 VDC 75 Amps Pull-In @ 12 VDC 1 Amps Hold @ 12VDC 37.5 Amps Pull-In @ 24VDC 0.5 Amps Hold @ 24VDC Terminal #3 2 Amps maximum Terminal #5 112.5 Amps maximum during Pull-in.

MurCal is an Authorized Distributor of Enovation Controls products.
MurCal provides experienced application and product support, before and after the sale.
