Sentinel 300P, 12/24VDC, 10A, Open Frame Battery Charger (42703850)

(0) No Reviews yet
$620.99
SKU: Sentinel 300P, 12/24VDC, 10A, Open Frame (42703850)
Please contact us for pricing and availability. 661.272.4700 or sales@murcal.com Thank you!

This item is IN STOCK

Current Stock: 7

Details

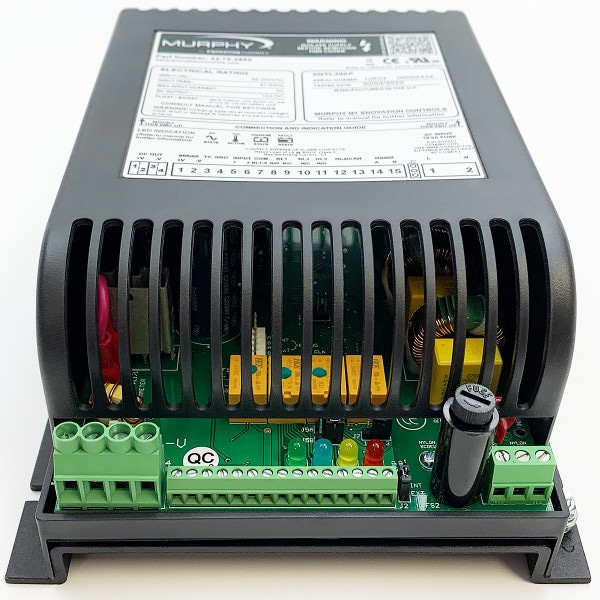

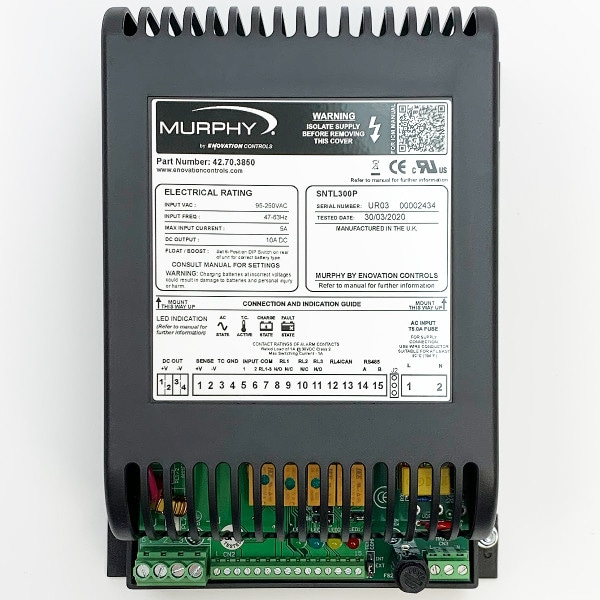

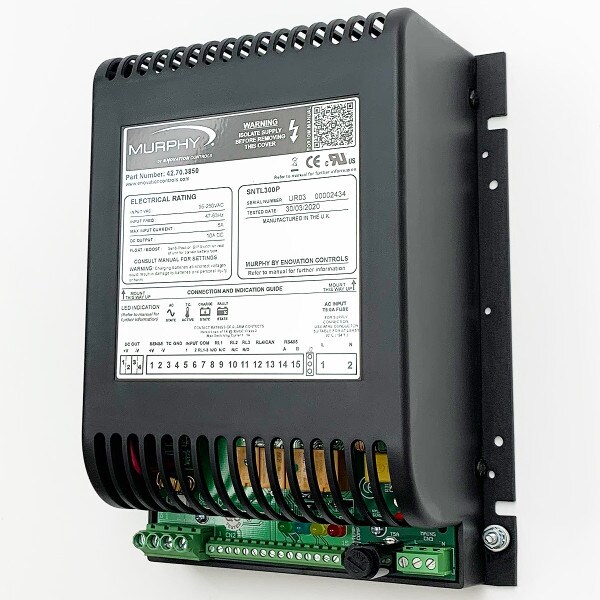

The Sentinel 300P, 12/24VDC, 10A Open Frame Battery Charger provides new levels of DC power control, monitoring and protection for stationary engine starting and standby battery applications. This microprocessor controlled charger features switch mode charging technology, high power efficiency and low heat dissipation, plus wide supply voltage tolerance. Standard features include Multistage Charging, including AutoBoost, which ensures no compromise between rapid charge recovery and long-term battery capacity and life; Low Output Ripple, which is beneficial for vented lead acid and NiCd cells, essential for VRLA, and configurable as a stand-alone DC power supply; Temperature Compensation, whereby the Sentinel measures temperature with a battery mounted sensor, and adjusts output voltage to prevent under or over charging. This open-frame, UL-recognized model mounts in an existing control panel. Electrical connection is by screw terminal blocks. Battery type is selected by circuit board DIP switches or SNTL-PCSuite configuration software. The unit measures 6.22" (158 mm) wide, 8.19" (208 mm) high, and 3.31" (84 mm) deep. Weight: 2.5 lbs (1.1 kg). There is an optional clip for DIN rail mounting, part # 045-0001 (2 required for each charger). This model accommodates the following battery types: 12 Volt: Wet (vented) lead acid (6 cells), Calcium-Calcium (6 cells), Lead acid Antimony (6 cells), VRLA / AGM (6 cells), VRLA / Gel (6 cells), NiCd (10 cells). 24 Volt: Wet (vented) lead acid (12 cells), Calcium-Calcium (12 cells), Lead acid Antimony (12 cells), VRLA / AGM (12 cells), VRLA / Gel (12 cells), NiCd (18 cells), NiCd (20 cells). Sales Bulletin



For California customers: Prop 65 WARNING: This product may have been manufactured with or uses components that can expose you to chemicals which are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.
