Trombetta 4 Pin, 6 connector, J1939 CAN Bus Splitter Module (99-0820)
Trombetta 4 Pin, 6 connector, J1939 CAN Bus Splitter Module (99-0820)

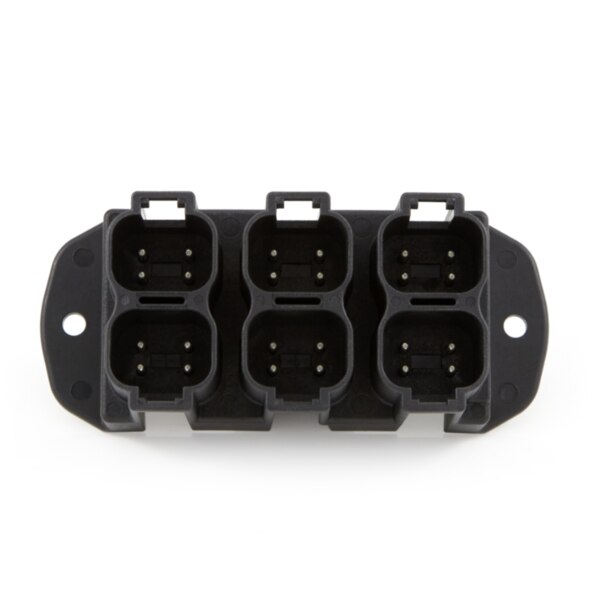

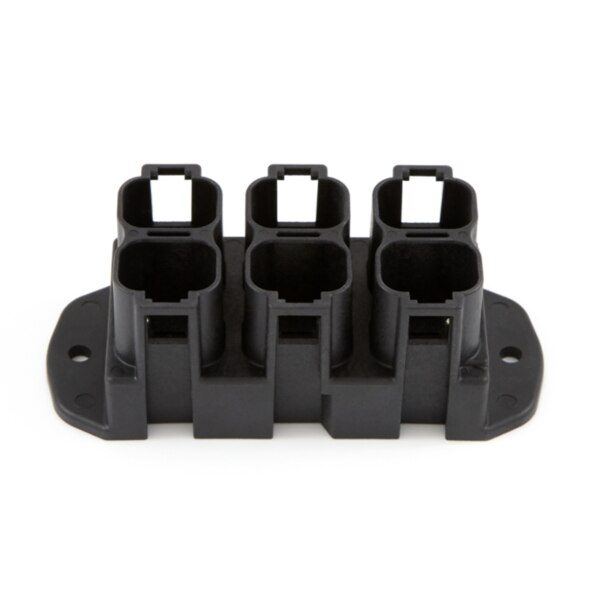

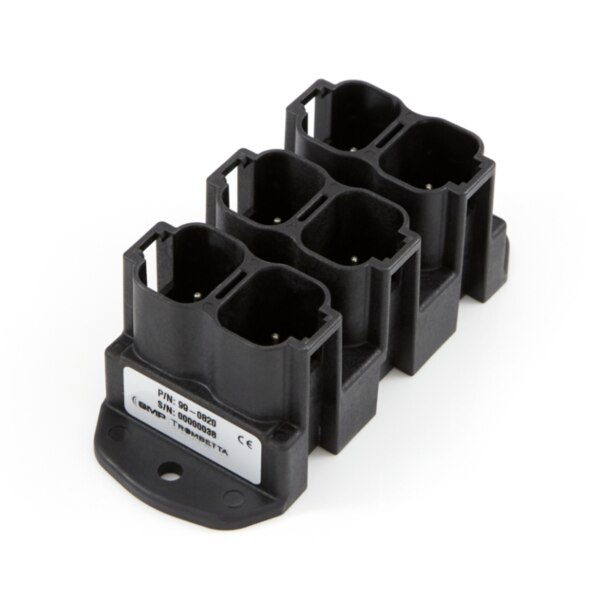

Manufactured by Trombetta, the 99-0820 J1939 CAN Bus Splitter Module features rugged and field-proven AT/DT connectors that comply with SAE standards for CAN applications. The splitter provides one 4-pin input connector and five 4-pin output connectors (6 connectors total), making it an effective way to link several devices to the SAE J1939 CAN bus.
Built to withstand harsh environments, the junction box boasts an environmentally sealed potting that ensures a true IP67 rating. It utilizes six durable DT04-4P, 4-pin Amphenol/Deutsch connectors, and mates with stock number 38174 connectors and size 16 contacts with wedge locks for secure connections.
With an operating temperature range from -40°F (-40°C) up to 185°F (85°C), and a current rating of 13A, this module delivers reliable performance in demanding conditions. Proudly manufactured in the USA, the Trombetta DT04-2P junction box offers a rugged, convenient, and high-quality solution to simplify CAN bus power distribution and maintain system integrity in industrial and automotive applications.
Literature:
MurCal is an Authorized Distributor of Trombetta products.
MurCal provides experienced application and product support, before and after the sale.
