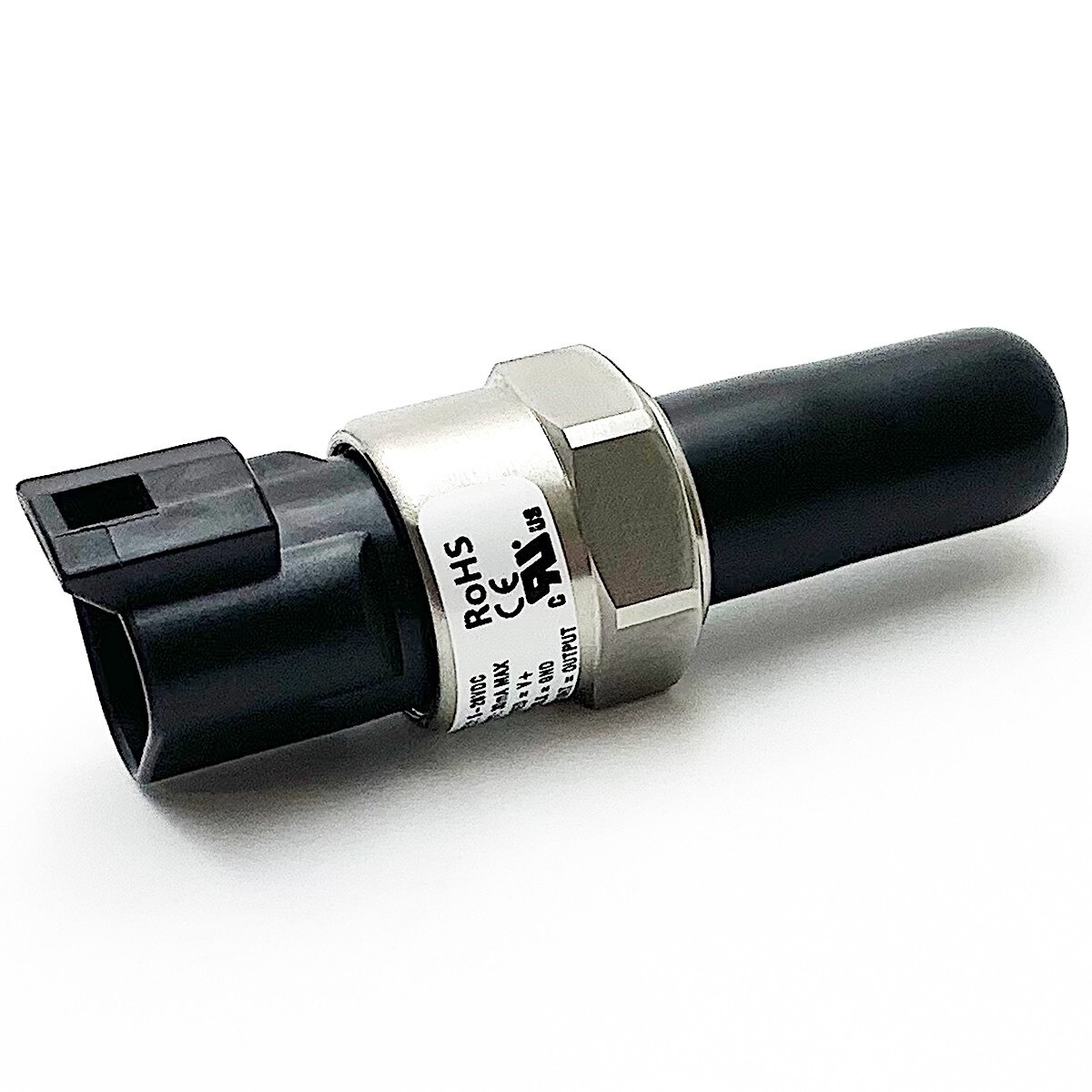

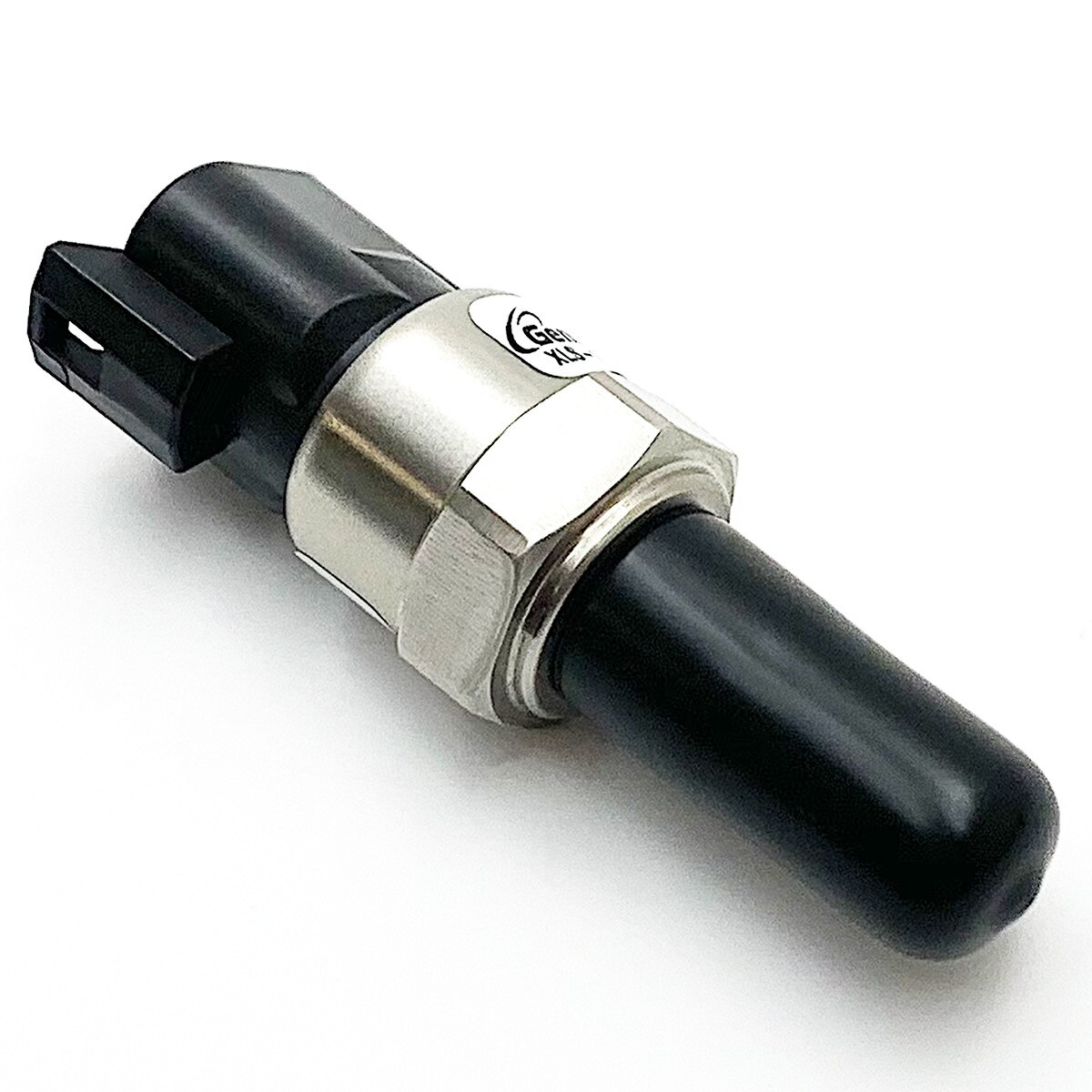

XLS-1: Ultrasonic Level Sensor (247700)


The XLS-1 Ultrasonic Level Sensor is GEMS’ rugged alternative to reed switch level sensors. This sensor is compatible with water, water-based and hydrocarbon-based liquids, and is perfect for applications where foam and condensation may affect other sensing technologies. The XLS-1 is an ideal solution for sensing liquid level in generators, water tanks, radiators, printers, and other harsh industrial applications.

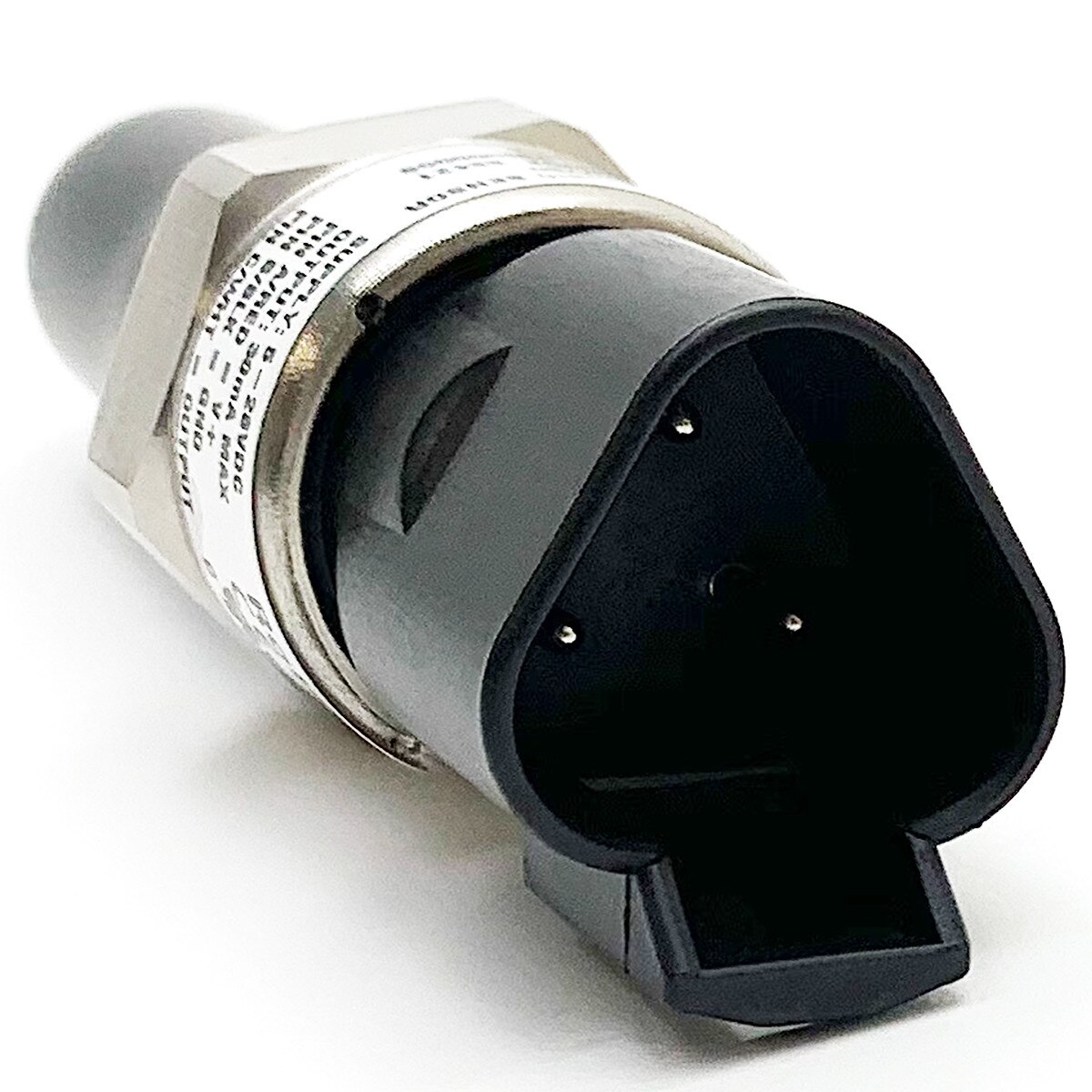

The XLS-1 comes pretested to industry-leading load (15 G), temperature (-40°F to 257°F/-40°C to 125°C), vibration (10 to 2000 Hz) and pressure (250 psi) standards to reduce your overall product testing. An integral 3-pin Deustch® Connector (DT04-3P) offers resistance against moisture intrusion under limited submersion or from powerful high temperature water jets.

In addition to meeting IP67, Gems XLS-1 meets IP6K9K – a more stringent requirement for high-pressure/high-temperature wash downs. The industry leading IP standard reduces customer worry about moisture ingress in tough environments.




Features:


•  No Moving Parts

•  Zero Maintenance

•  Ignores Condensation on Sensor

•  Will Not Sense Foam as Liquid

•  Microcontroller-Based Electronics




Specifications:


•  Probe Length: 1.25” (including threads)

•  Switch Operation: Wet Sink

•  Stem Material: Stainless Steel

•  Mounting Size: 1/4"-18 NPT (Type 14)

•  Mounting: Horizontal

•  Switch Type: TTL/CMOS Compatible

•  Input: 5-28 VDC

•  Output: Open Collector Sink 30 Ma @ 30 VDC

•  Maximum Pressure (PSI): 250

•  Minimum Temperature: (°F) -40, (°C) -40

•  Maximum Temperature: (°F) 257, (°C) 125

•  Electrical Termination: Integral 3-pin Deutsch Connector

•  Wetted Materials: 316L Stainless Steel, EPDM. 30% Glass Filled Polyester

•  Approvals: CE, RoHS, UL/cIL Recognized
