20P-I-100 Pressure Swichgage® (05703235)
20P-I-100: 2" Pressure Swichgage®; Illumination; 0-100 psi (05703235)

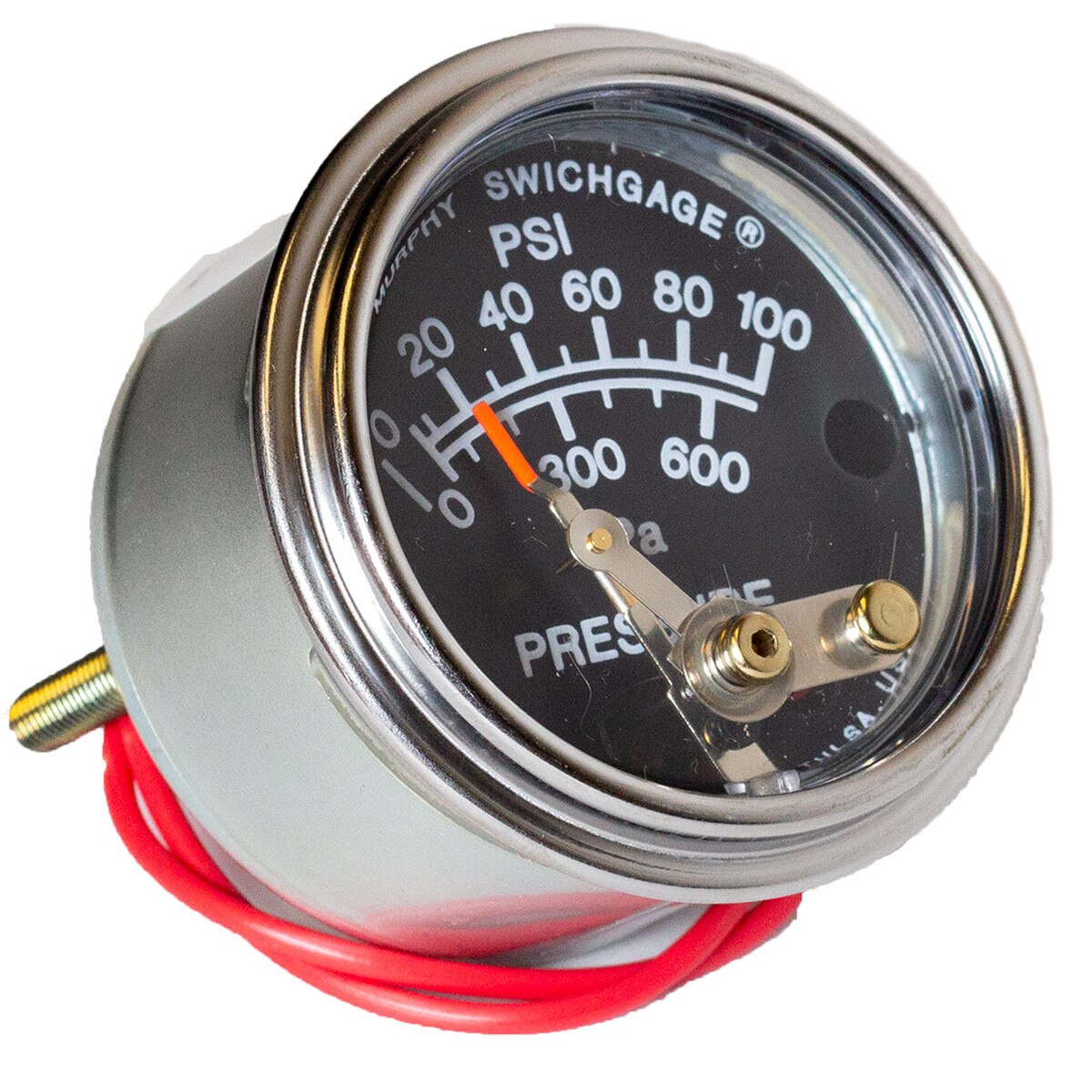

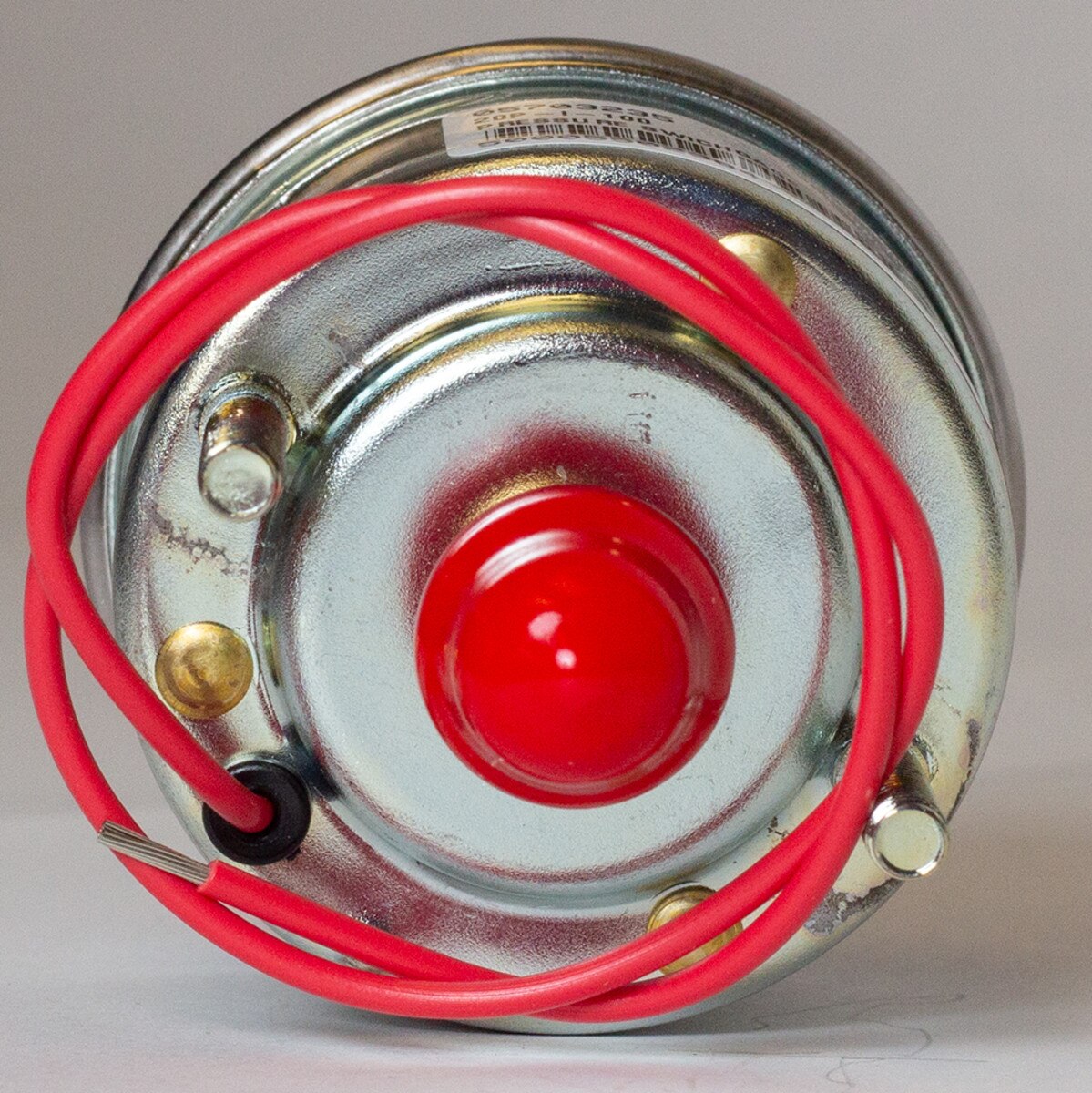

The 20P-I-100 Pressure Swichgage® is a 2 inch (51 mm) dial, with illumination and a pressure range of 0-100 psi. The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break-resistant lens and a polished, stainless steel bezel help protect this rugged instrument. Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning. The gage pointer acts as a pressure indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contacts are grounded through the case and have a self-cleaning motion to ensure electrical continuity.
Images
Literature
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
