20T-F-250-8-1/2 Temperature Swichgage® (10702239)

(0)No Reviews yet
$117.99
SKU: 20T-F-250-8-1/2 (10702239)

Contact Our Sales Team 661-272-4700 or sales@MurCal.com


20T-F-250-8-1/2: 2" Temperature Swichgage®; 130-250° F. temp range; "FS" stud for closed loop w/ 518 tattletale; 8 ft. capillary length (10702239)

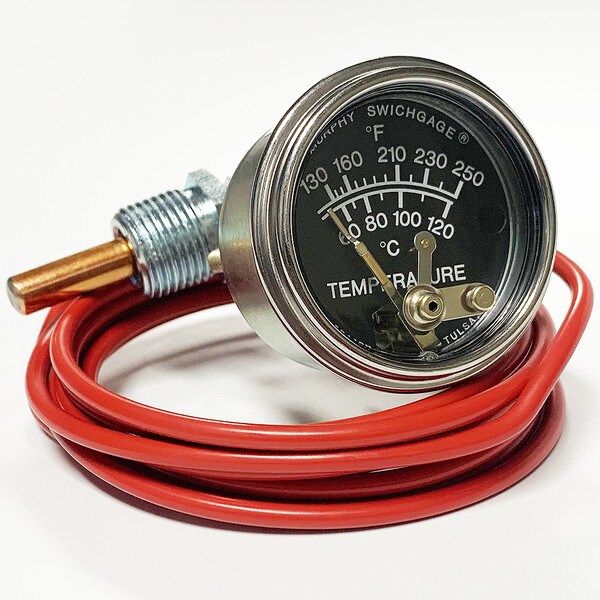

The 20T-F-250-8-1/2 is a 2" Temperature Swichgage®. This very popular design features a diaphragm-actuated, temperature-indicating gage, with a built-in electrical switch for tripping alarms and/or shutdown devices. This model has an 8 foot capillary length with a standard 1/2-14 NPT threading, and a temperature range from 130-250øF (54-121øC).

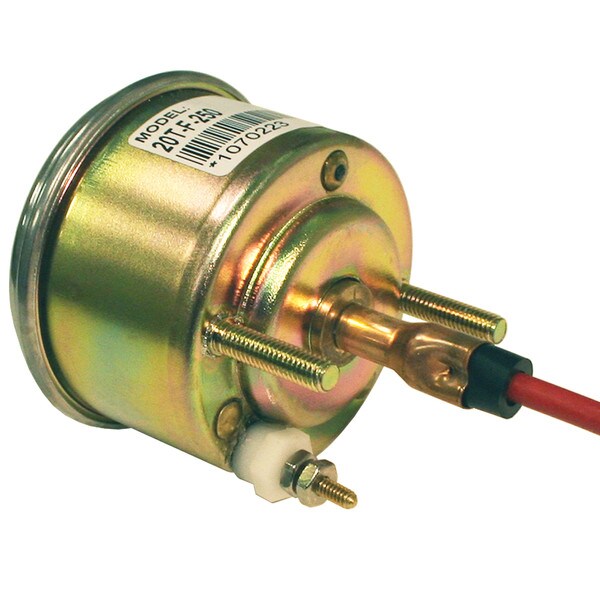

This model also includes an "FS" stud for closed loop w/ 518 tattletale. The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break-resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument. This vapor actuated gage features a sealed capillary tube and a sensing bulb. When subjected to heat, the liquid in the sensing bulb changes to vapor creating pressure against the diaphragm mechanism. The diaphragm translates this vapor pressure into a mechanical gage reading.


Inside the 20T-F-250-8-1/2, the gage pointer acts as a temperature indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contact(s) are grounded through the Swichgage® case. This gage has a self-cleaning motion to enhance electrical continuity.




Literature:





  1. Sales Bulletin


  2. Installation Instructions




MurCal is an Authorized Distributor of Murphy by Enovation products.


MurCal provides experienced application and product support, before and after the sale.
